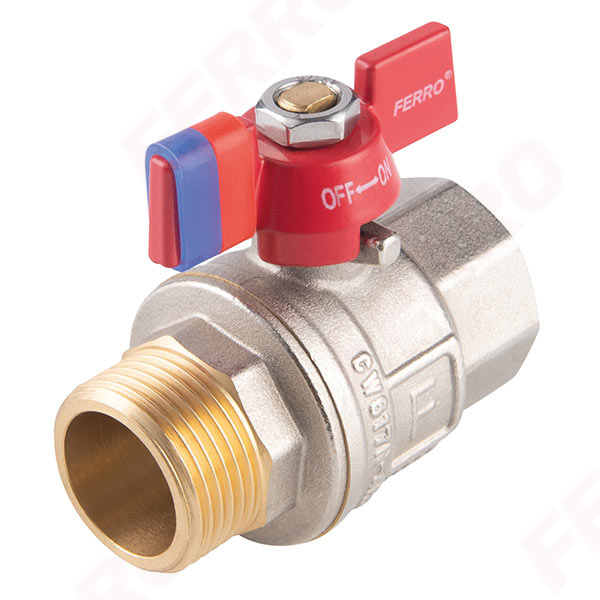

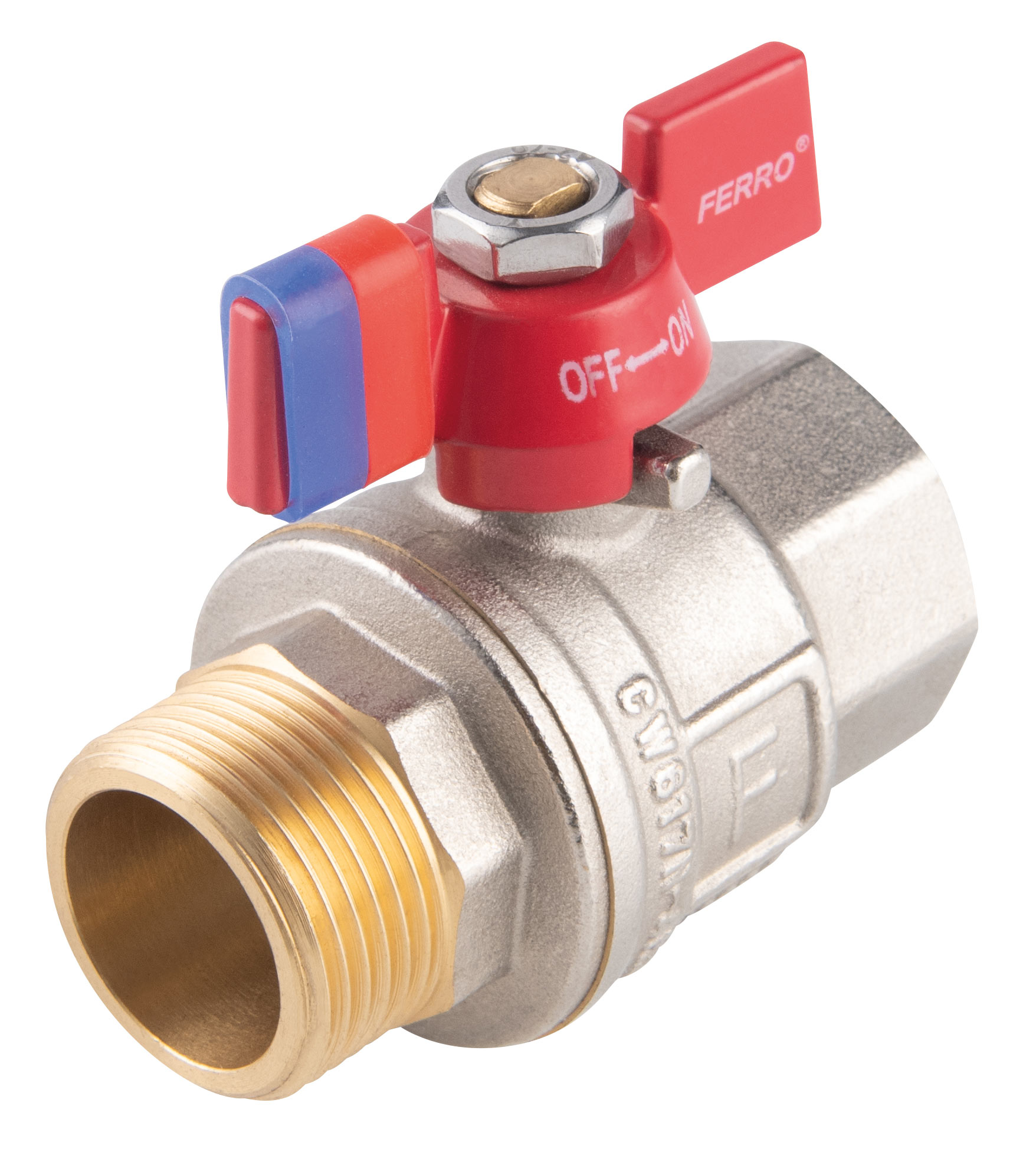

F-Power - ball valve

F-Power - ball valve

New!

F-Power - ball valve

F-Power - ball valve

F-Power - ball valve

Code: KFPM



  • warranty: 10 years
  • application: water, glycol 50%, compressed air
  • female-male
  • full bore
  • with gland
  • handle: butterfly
  • body and ball material: brass
  • material of ball and stem seals: PTFE
  • nominal pressure: 30 bar (PN30)
  • maximum working temperature: 120°C
  • minimum working temperature: -30°C
  • NICKEL FREE - inner surfaces are not nickel-plated
  • CW617N-4MS brass - reduced lead and nickel content

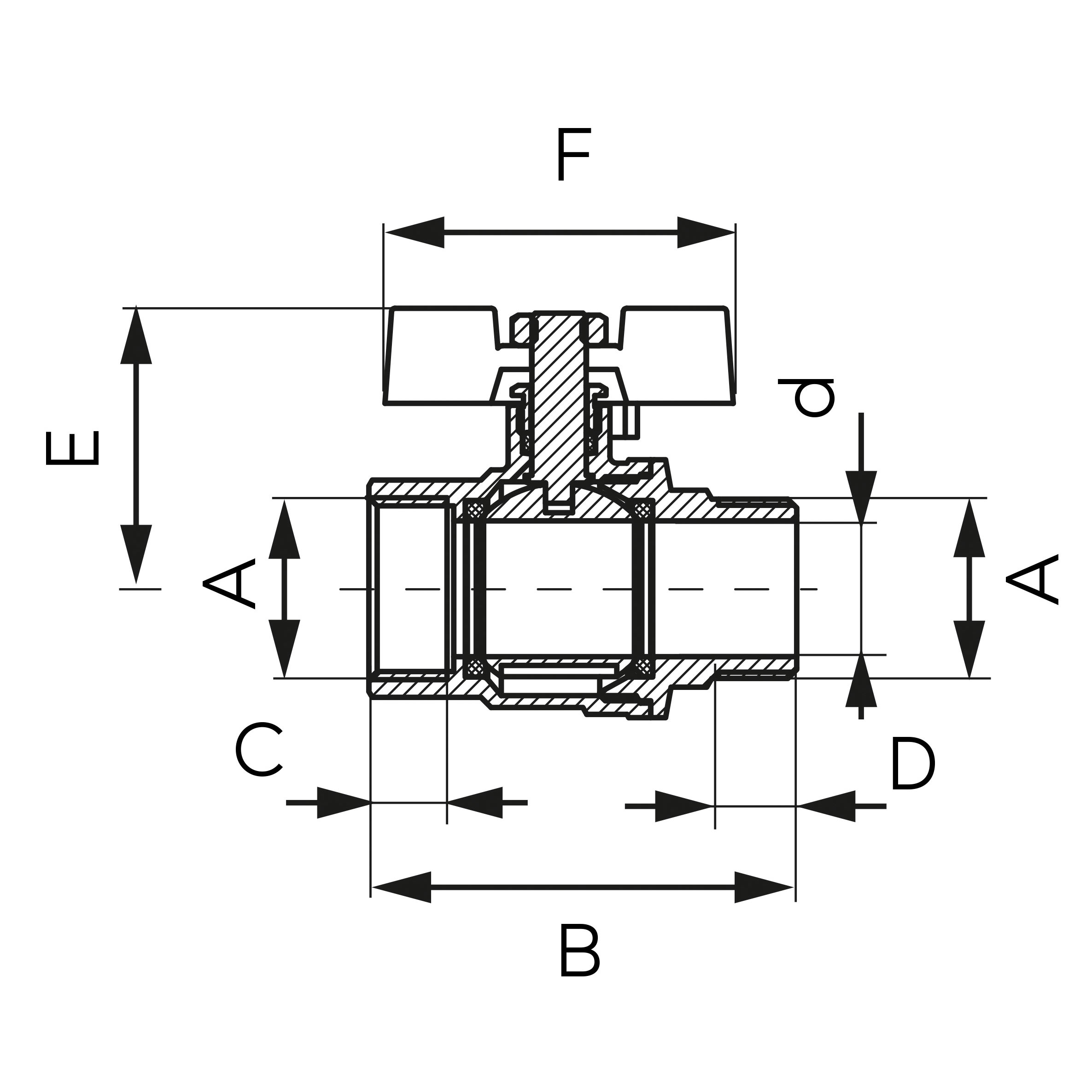

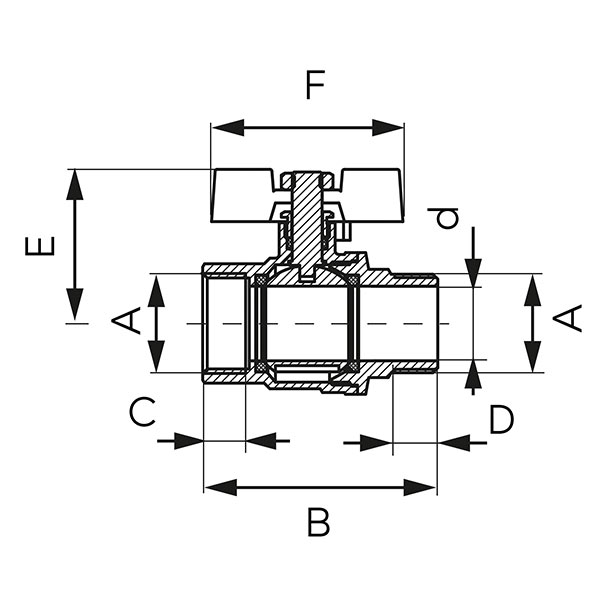

Code DN A d [mm] B [mm] C [mm] D [mm] E [mm] F [mm] Kvs [m3/h] Individ. pack. Collect. pack.
KFPM101 10 G3/8 10 53,5 9 10,5 34 51,3 4,33 12 120
KFPM11 15 G1/2 15 58,5 10,5 11 37,9 51,3 7,29 15 90
KFPM21 20 G3/4 20 63 11 11,5 41,3 51,3 14,80 12 96
KFPM31 25 G1 25 75,5 13 13,5 47,4 65 23,11 10 50
KFPM41 32 G1 1/4 32 93 14 18,5 63,7 88 42,58 6 24
