Angle 1/2” thermostatic set with valve with presetting with pre-setting and thermostatic head with 16°C limit

Angle 1/2” thermostatic set with valve with presetting with pre-setting and thermostatic head with 16°C limit

New!

Angle 1/2” thermostatic set with valve with presetting with pre-setting and thermostatic head with 16°C limit

Angle 1/2” thermostatic set with valve with presetting with pre-setting and thermostatic head with 16°C limit

Angle 1/2” thermostatic set with valve with presetting with pre-setting and thermostatic head with 16°C limit

Code: ZTMN02-16


Opakowanie jednostkowe Individual packaging: 1
with a barcode for retail sale

Download PDF file with card product

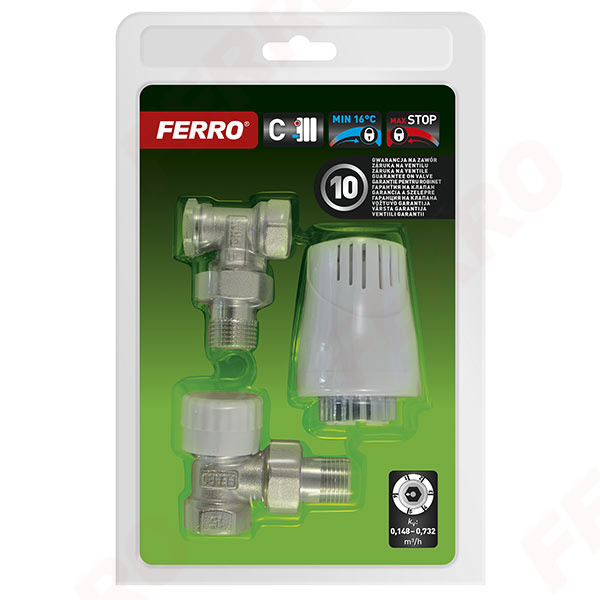

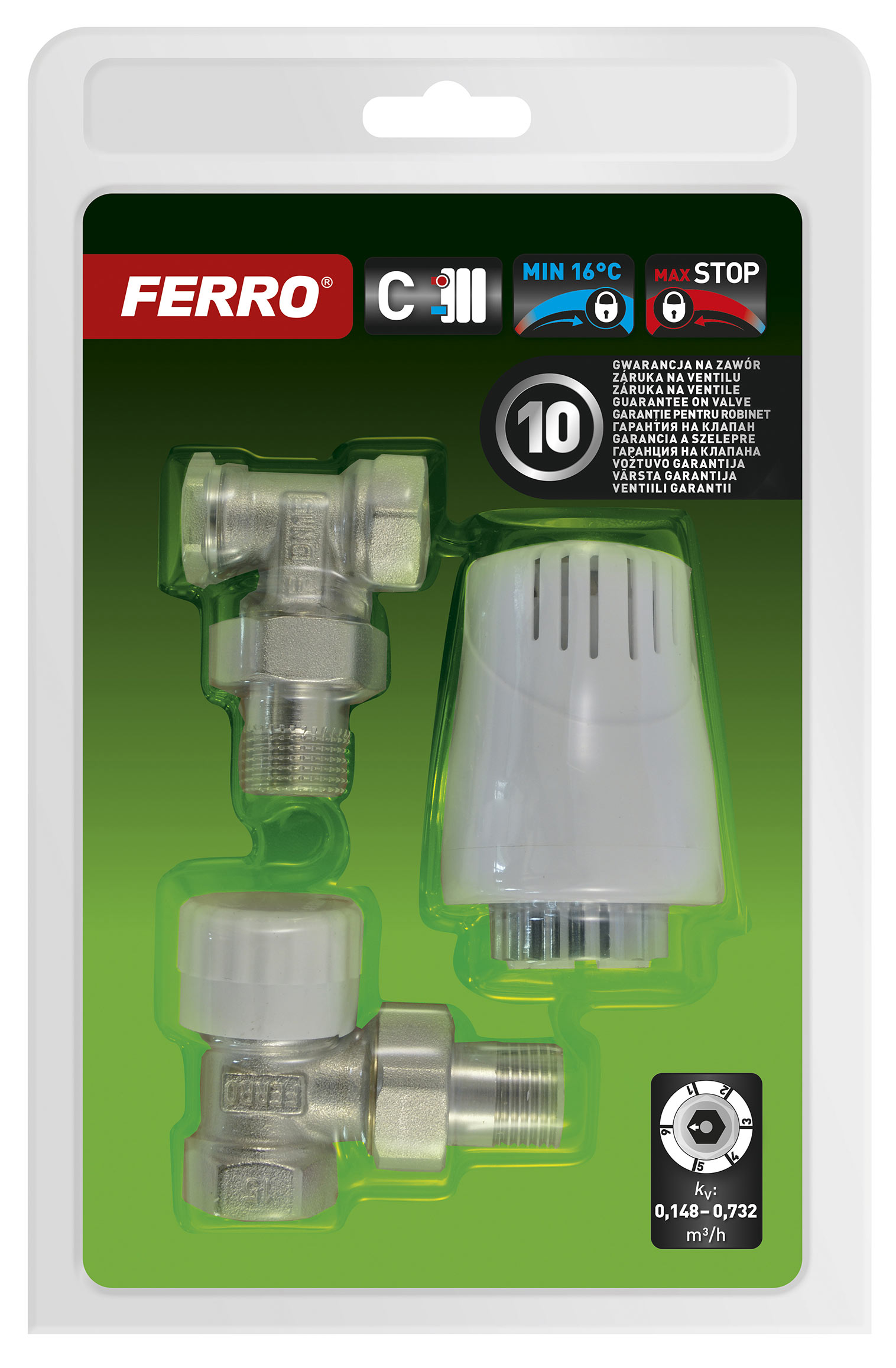

  • Elements of the set:
    • GT12-16 thermostatic head with M30 x 1.5 connection
    • ZT5Y angle thermostatic valve, with presetting
    • ZK2Y angle cut-off valve
  • Technical parameters:
    • max. working temperature: 100°C
    • max. working pressure: 1 MPa (10 bar)
    • max. ambient temperature: 50°C
    • scale of adjustment: 2 - 5
    • adjustment range: 16°C - 29°C
    • valve connection diameter: 1/2”
  • Warranty:
    • 10 years on thermostatic valve
Pre-setting 1 2 3 4 5 6
kv [m3/h] ZT2Y + GT12-16 0,148 0,223 0,319 0,436 0,573 0,732
