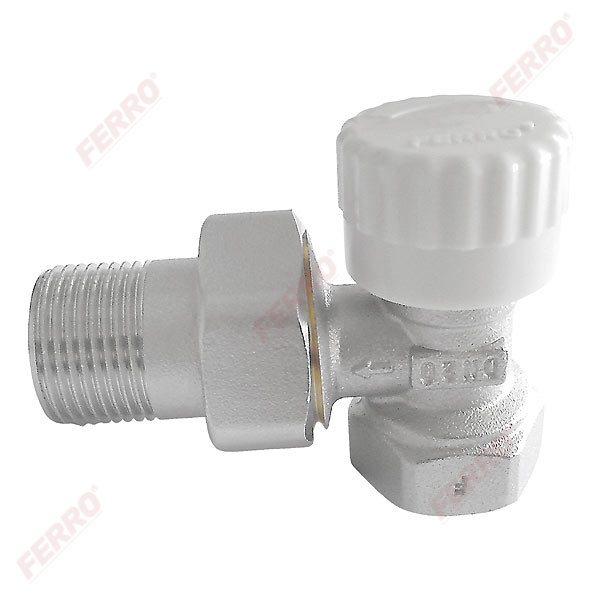

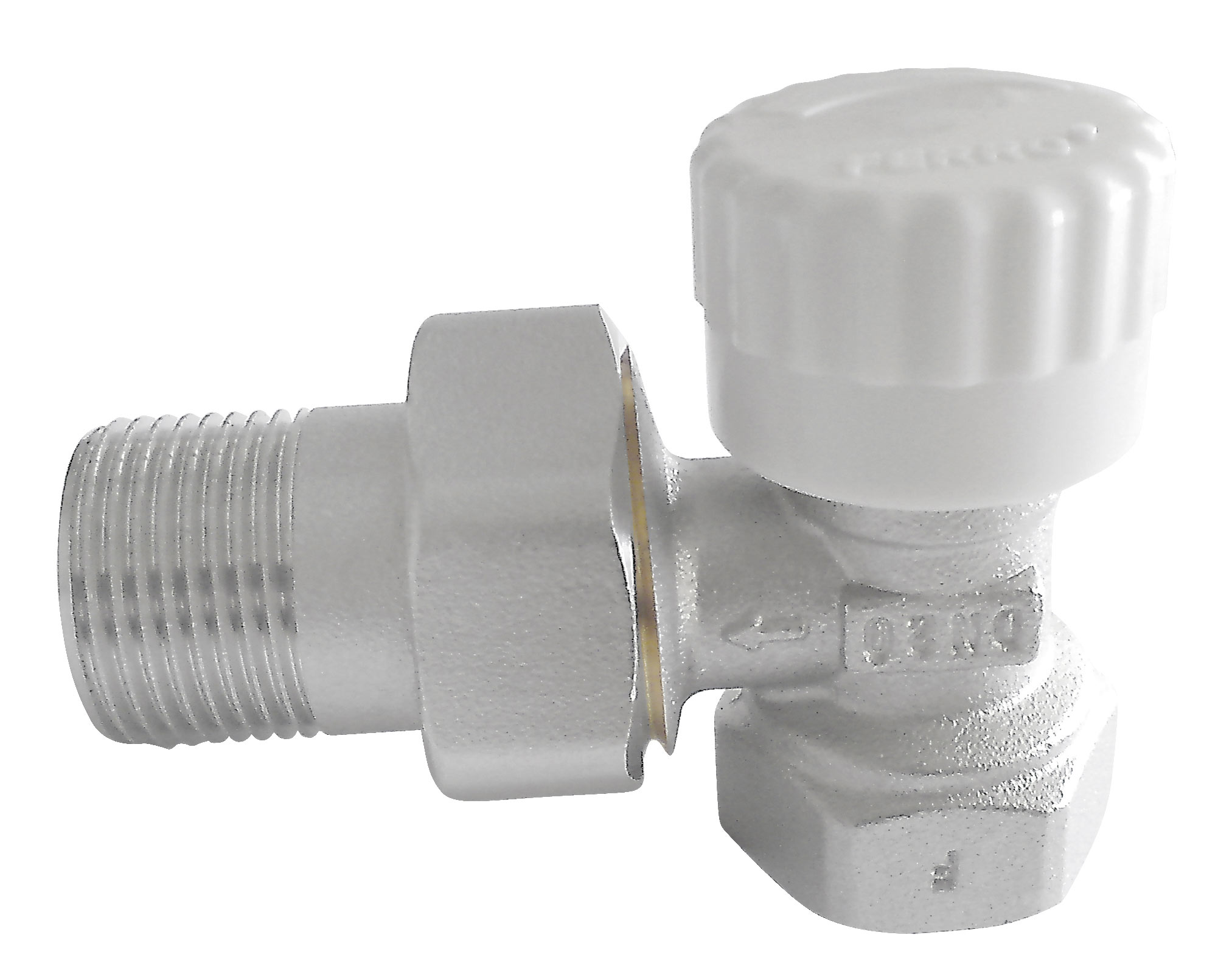

Thermostatic angle valve

Thermostatic angle valve

Thermostatic angle valve

Code: ZT

Download PDF file with card product

10 years warranty
maximum allowable static pressure: 1MPa
maximum allowable pressure difference: 0,06MPa
maximum working temperature: 100°C
head connecting thread: M30x1,5

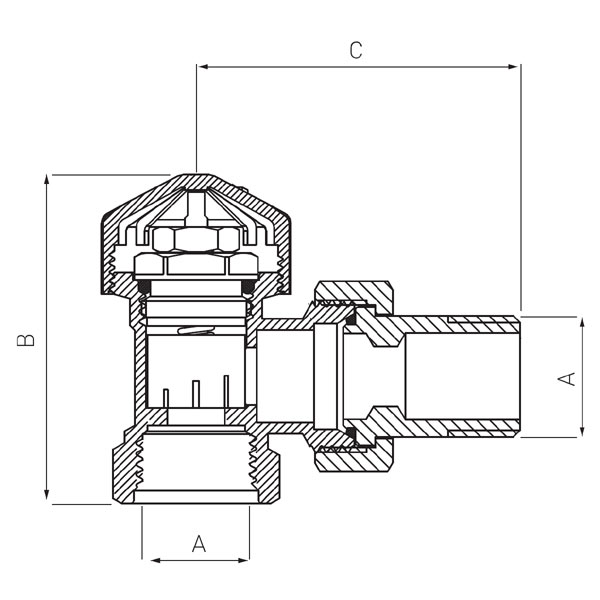

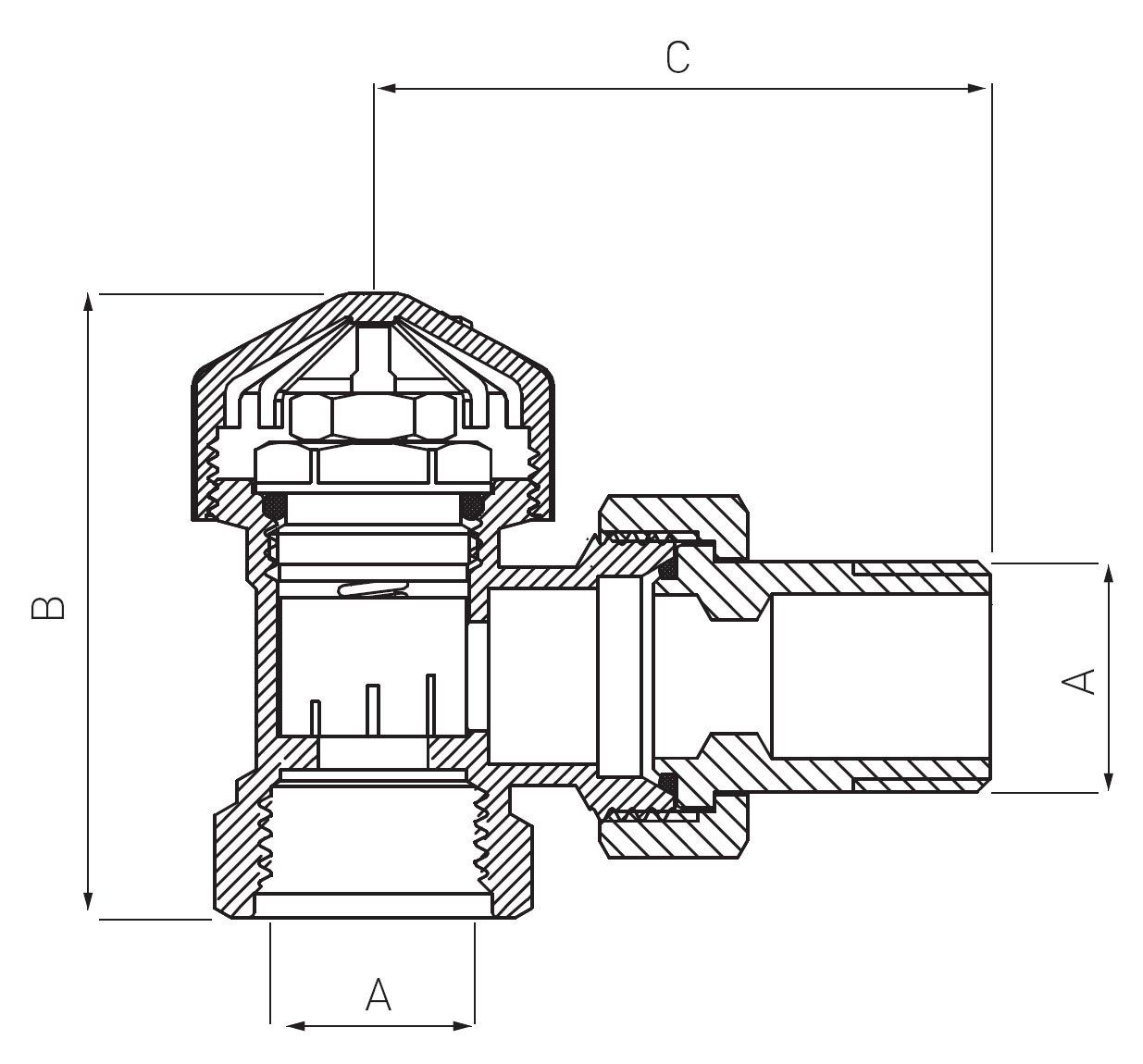

Code	DN	A	B [mm]	C [mm]	Nominal flow q_mN	Pressure difference impact	Pre-setting regulation	Individ. pack.	Collect. pack.	R*	E*
ZT5Y	15	Rp 1/2	44	85	0,140m³/h	0,6K	Tak	10	120	-	ZT5YE
ZT5YS	15	Rp 1/2	44	85	0,153 m³/h	0,3K	Nie	10	120	ZT5YSW	-
ZT6Y	20	Rp 3/4	45,5	100	0,181m³/h	0,6K	Tak	9	81	-	ZT6YE

*R - Product in individual packaging with EAN code enabling retail sale.
*E - Products on euro-slot with barcode enabling retail sale.

Catalogue 2024: Sanitary fittings and accessories, Installation and heating technique (PDF 123,0 MB)
