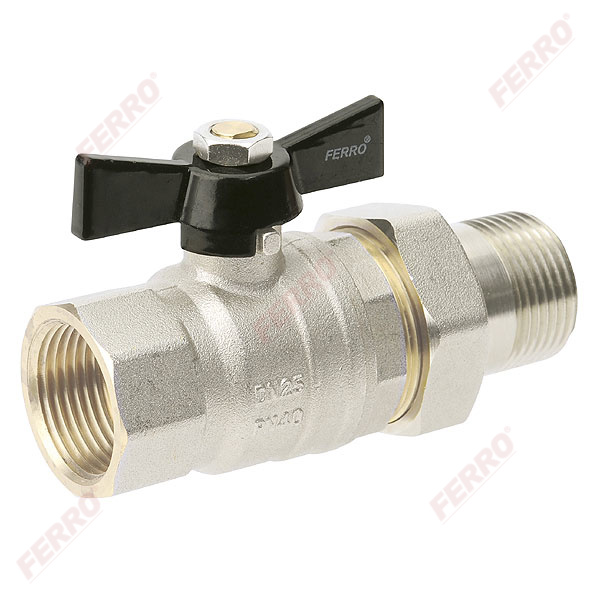

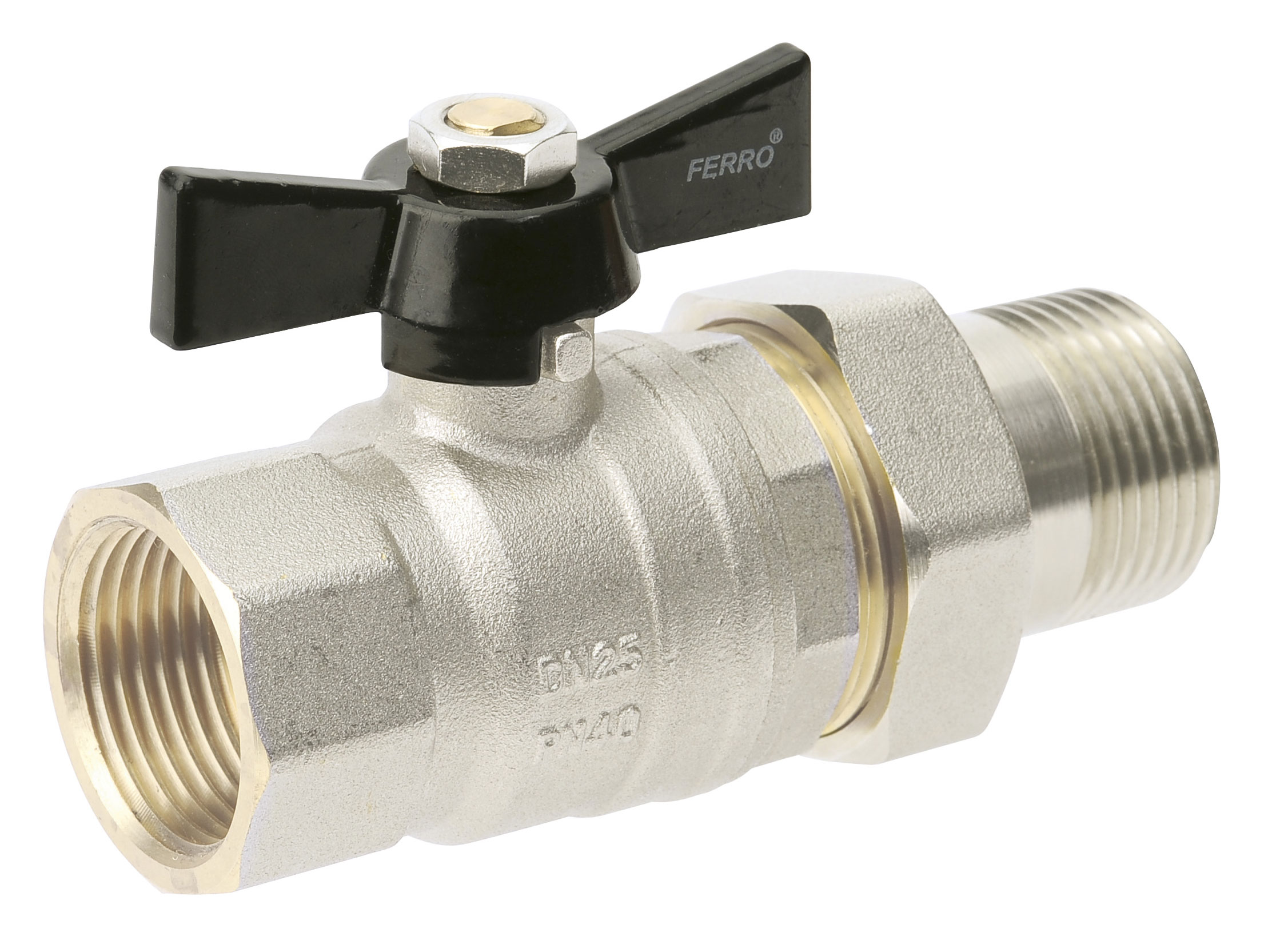

Herkules ball valve type V17

Herkules ball valve type V17

Herkules ball valve type V17

Herkules ball valve type V17

Herkules ball valve type V17

Index: KSH

With a barcode for retail sale

Download PDF file with card product

  • 15 years warranty
  • NICKEL FREE - all product elements which may have contact with potable water are not covered with nickel
  • media valves:
    • water
    • 50% glycol
    • compressed air
  • female - male with full union
  • full bore
  • reinforced
  • with a gland and double stem seal
  • handle: metal butterfly
  • body and ball material: brass
  • material of ball and stem seals: PTFE
  • nominal pressure: 4,0 MPa (40 bar)
  • maximum working temperature: 140°C

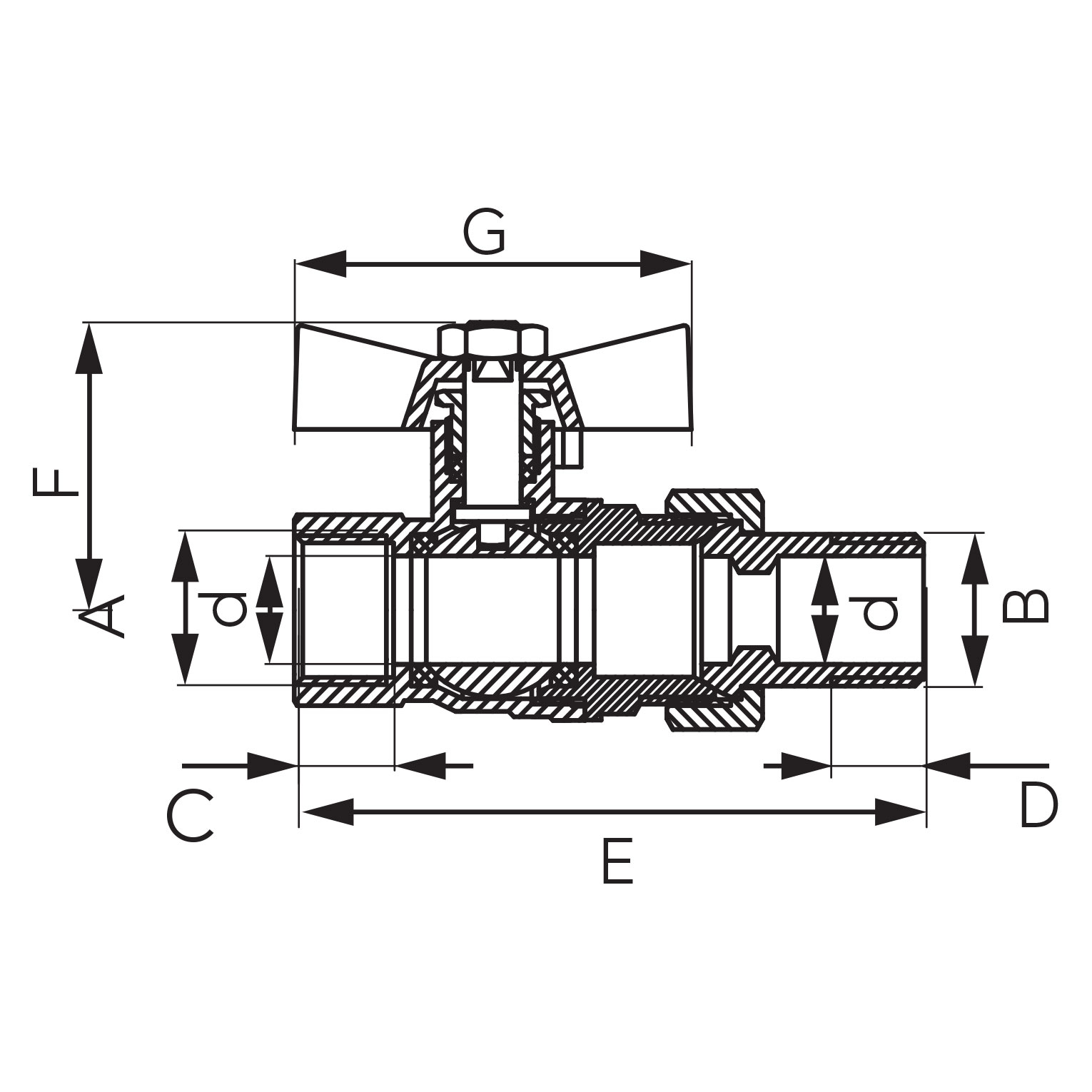

Index Size of connectors DN A B [mm] C [mm] D [mm] d [mm] E [mm] F [mm] G [mm] Individ. pack. Bulk pack. R* E*
KSH1 1/2” 15 Rp ½ R ½ 13 13 15 ~88 40 ~56 8 96 KSH1W KSH1E
KSH2 3/4” 20 Rp ¾ R ¾ 14,5 14,5 20 ~99 46,5 ~66 6 54 KSH2W KSH2E
KSH3 1” 25 Rp 1 R 1 16,8 17 25 ~115 51 ~72 6 48 KSH3W KSH3E

*R - Product in individual packaging with EAN code enabling retail sale.
*E - Products on euro-slot with barcode enabling retail sale (Eurohanger).
