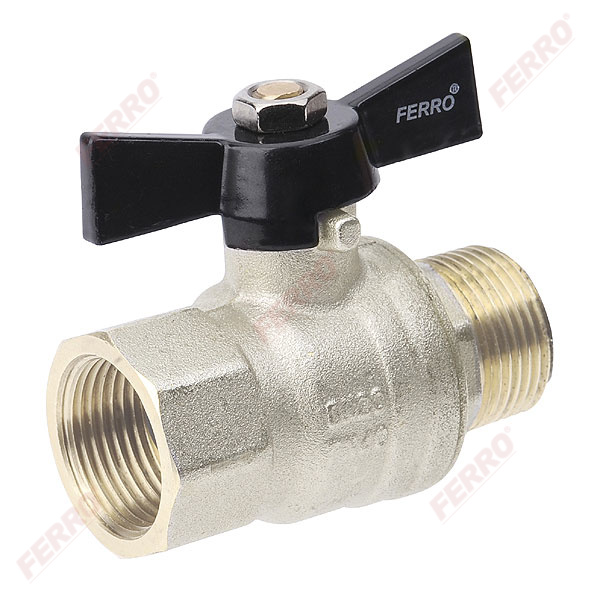

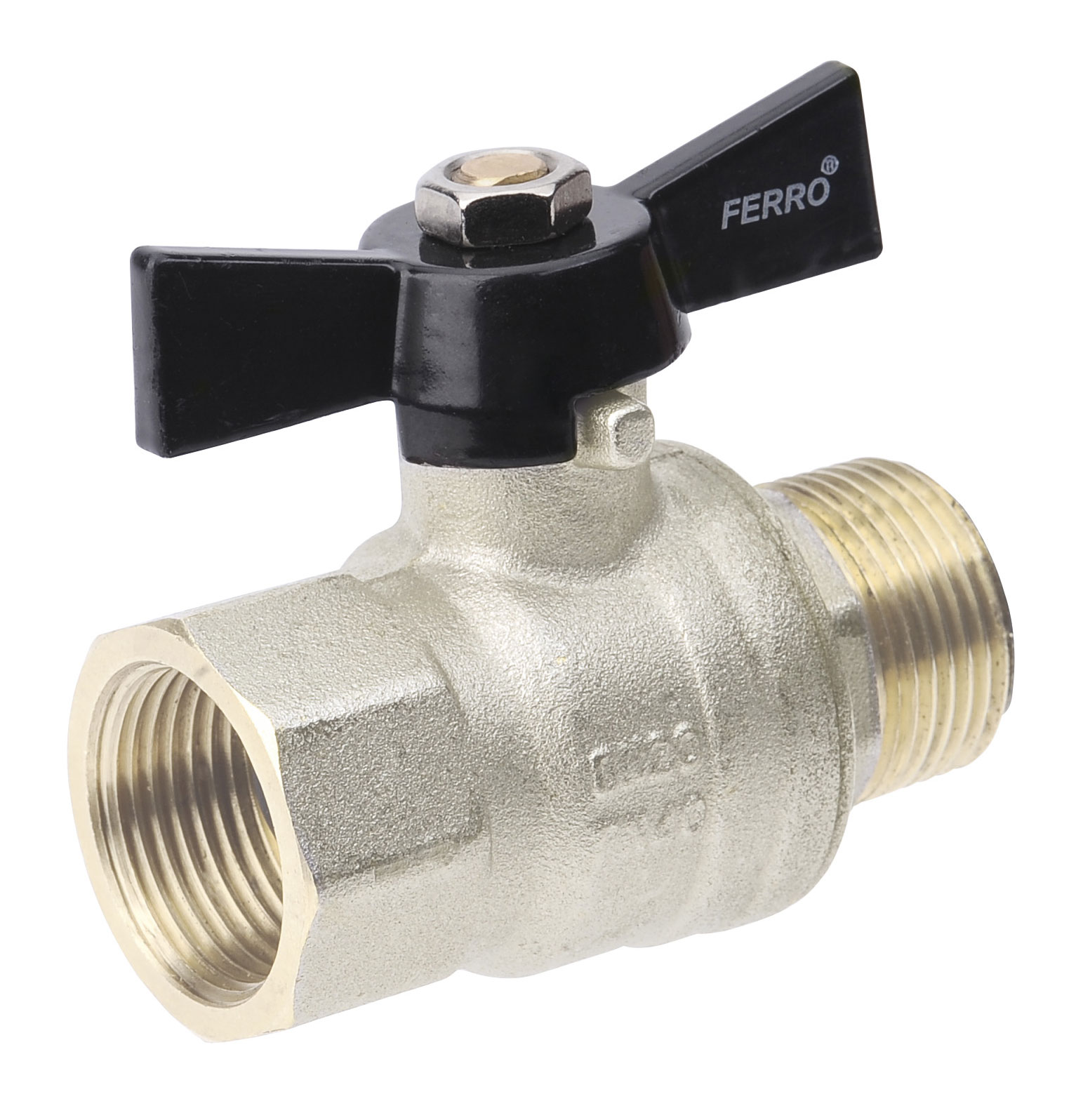

Herkules ball valve type V17

Herkules ball valve type V17

Herkules ball valve type V17

Herkules ball valve type V17

Herkules ball valve type V17

Code: KMH

Download PDF file with card product

  • 15 years warranty
  • NICKEL FREE 2018 - The surface of the valve in contact with water is not nickle-plated
  • Utility Valves:
    • water
    • 50% glycol
    • compressed air
  • female - male
  • full bore
  • reinforced
  • with a gland and double stem seal
  • handle: metal butterfly
  • body and ball material: brass
  • material of ball and stem seals: PTFE
  • nominal pressure: 4,0 MPa (40 bar)
  • maximum working temperature: 140°C

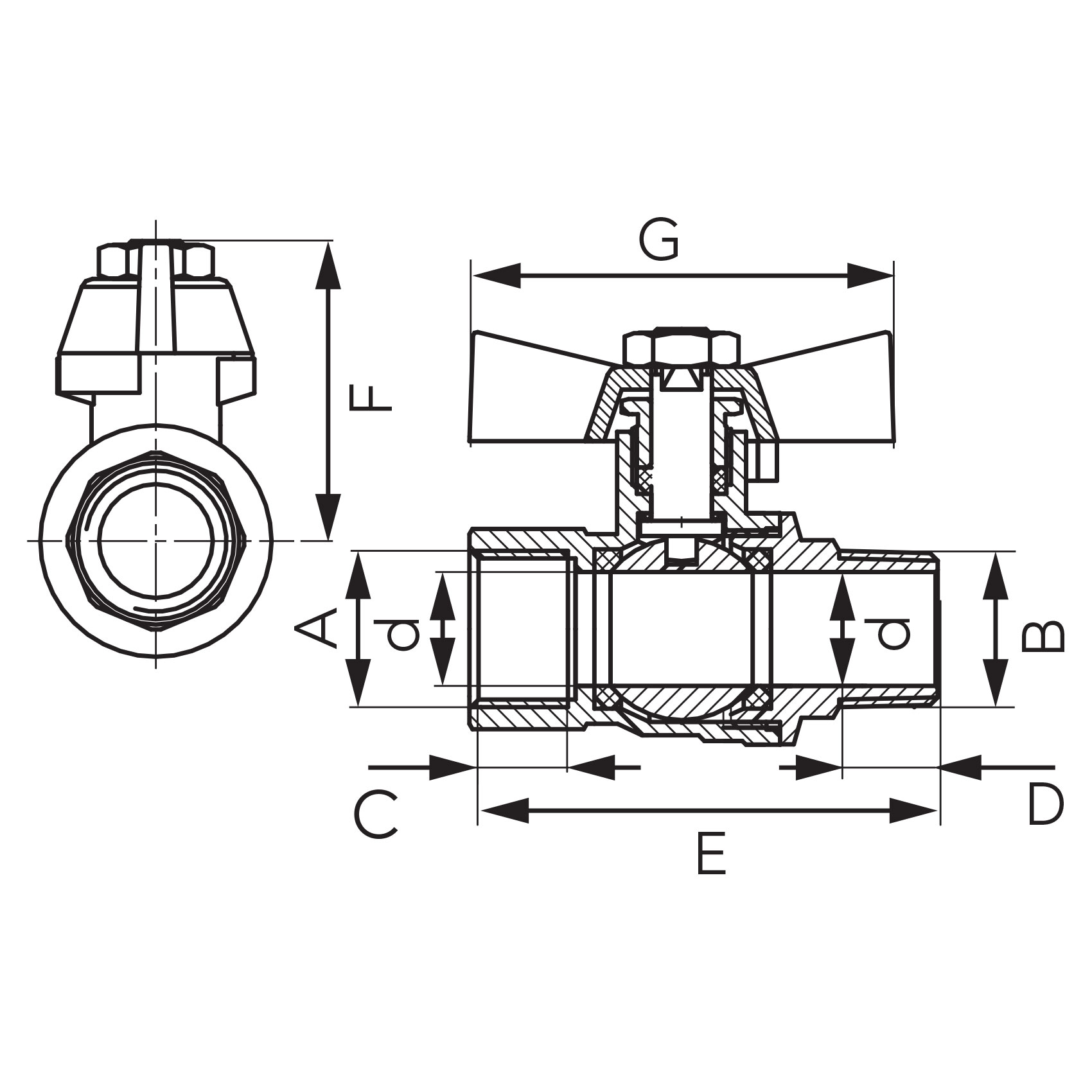

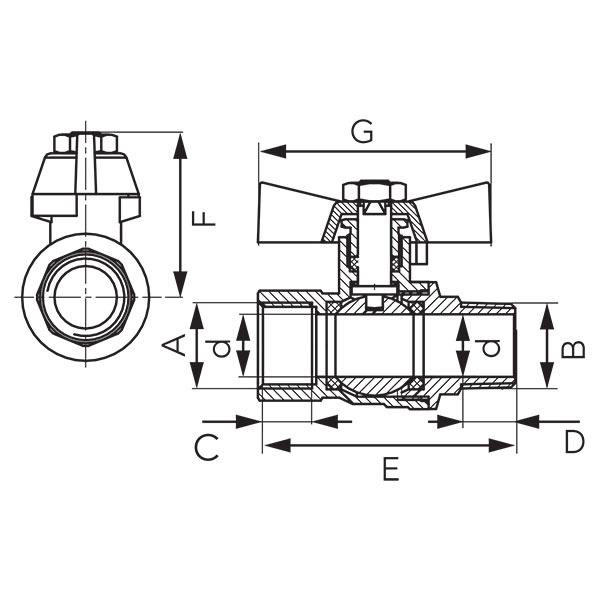

Code Size of connectors DN A B [mm] C [mm] D [mm] d [mm] E [mm] F [mm] G [mm] Individual packaging Collective packaginig R*
KMH11 1/2” 15 Rp ½ R ½ 13 13 15 61,5 40 ~56 12 144 KMH11W
KMH21 3/4” 20 Rp ¾ R ¾ 14,5 14,5 20 70 46,5 ~66 9 81 KMH21W
KMH31 1” 25 Rp 1 R 1 16,8 16,8 25 81,5 51 ~72 8 64 KMH31W

*R - Product in individual packaging with EAN code enabling retail sale.
