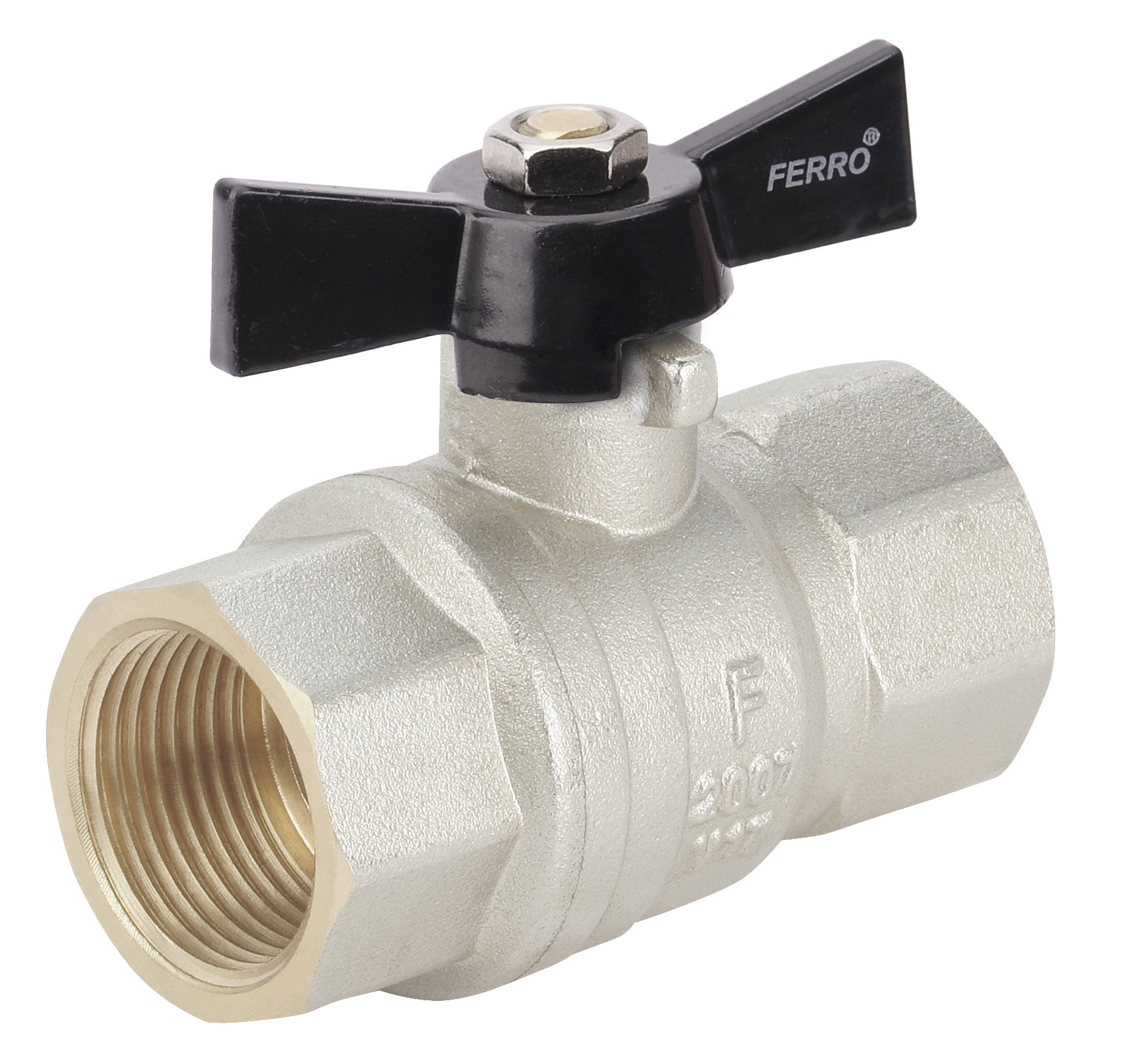

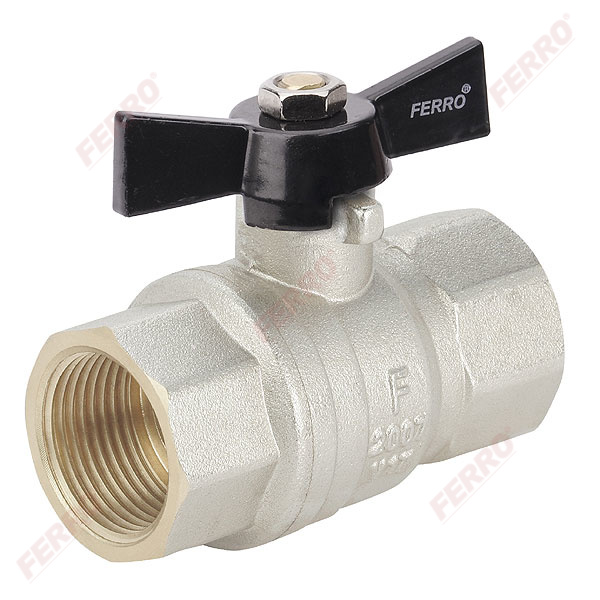

Herkules ball valve type V17

Herkules ball valve type V17

Herkules ball valve type V17

Herkules ball valve type V17

Herkules ball valve type V17

Code: KMH



  • 15 years warranty
  • NICKEL FREE 2018 - The surface of the valve in contact with water is not nickle-plated
  • Utility Valves:
    • water
    • 50% glycol
    • compressed air
  • female - female
  • full bore
  • reinforced
  • with a gland and double stem seal
  • handle: metal butterfly
  • body and ball material: brass
  • material of ball and stem seals: PTFE
  • nominal pressure: 4.0 MPa (40 bar)
  • maximum working temperature: 140°C

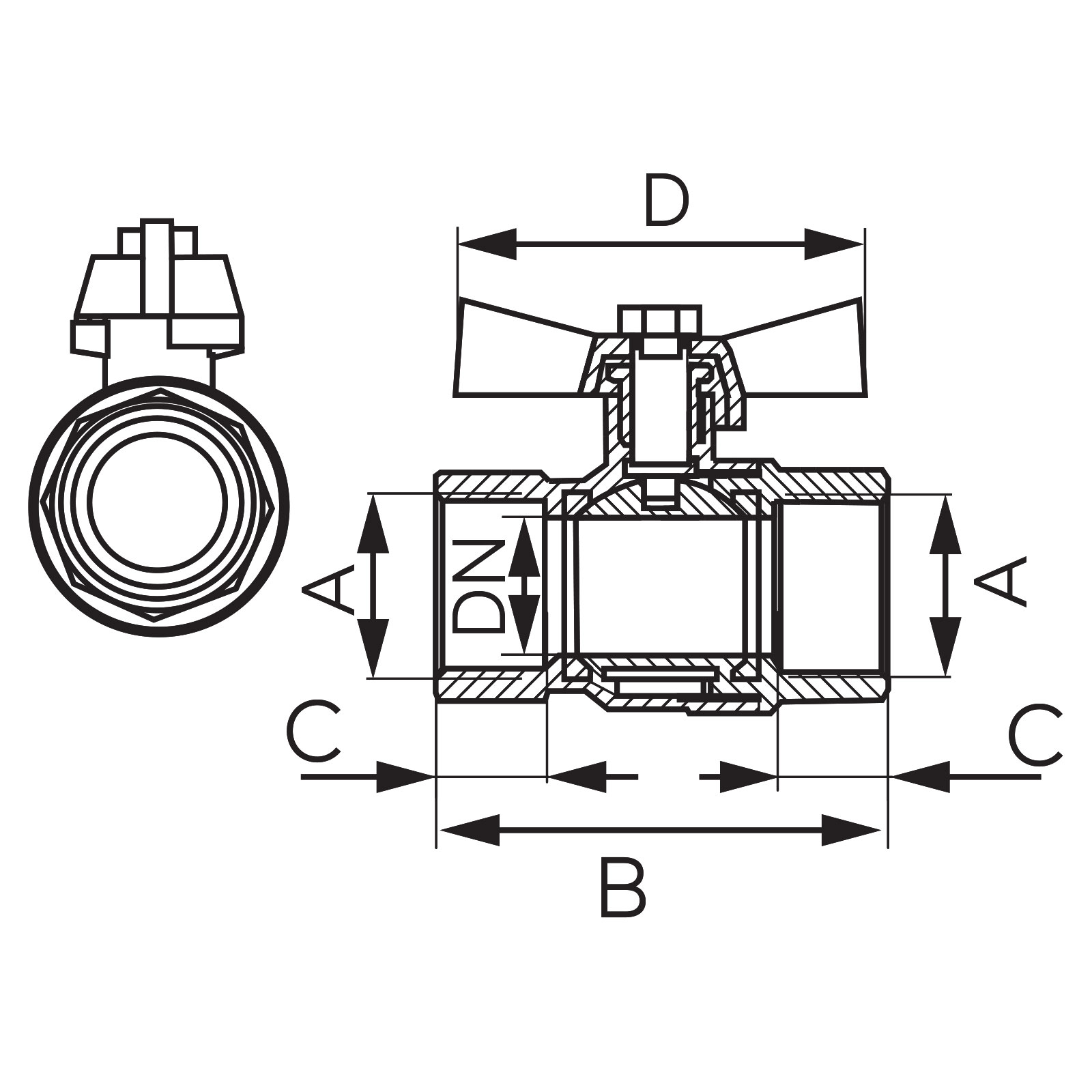

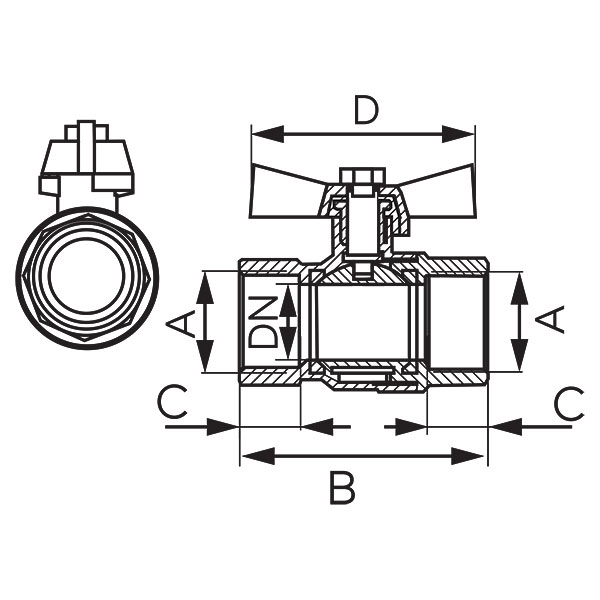

Code Size of connectors DN A B [mm] C [mm] D [mm] Individual packaging Collective packaginig R*
KMH1 1/2” 15 Rp ½ 56 13 ~56 12 144 KMH1W
KMH2 3/4” 20 Rp ¾ 66 14,5 ~66 9 81 KMH2W
KMH3 1” 25 Rp 1 76 16,8 ~72 8 64 KMH3W

*R - Product in individual packaging with EAN code enabling retail sale.
