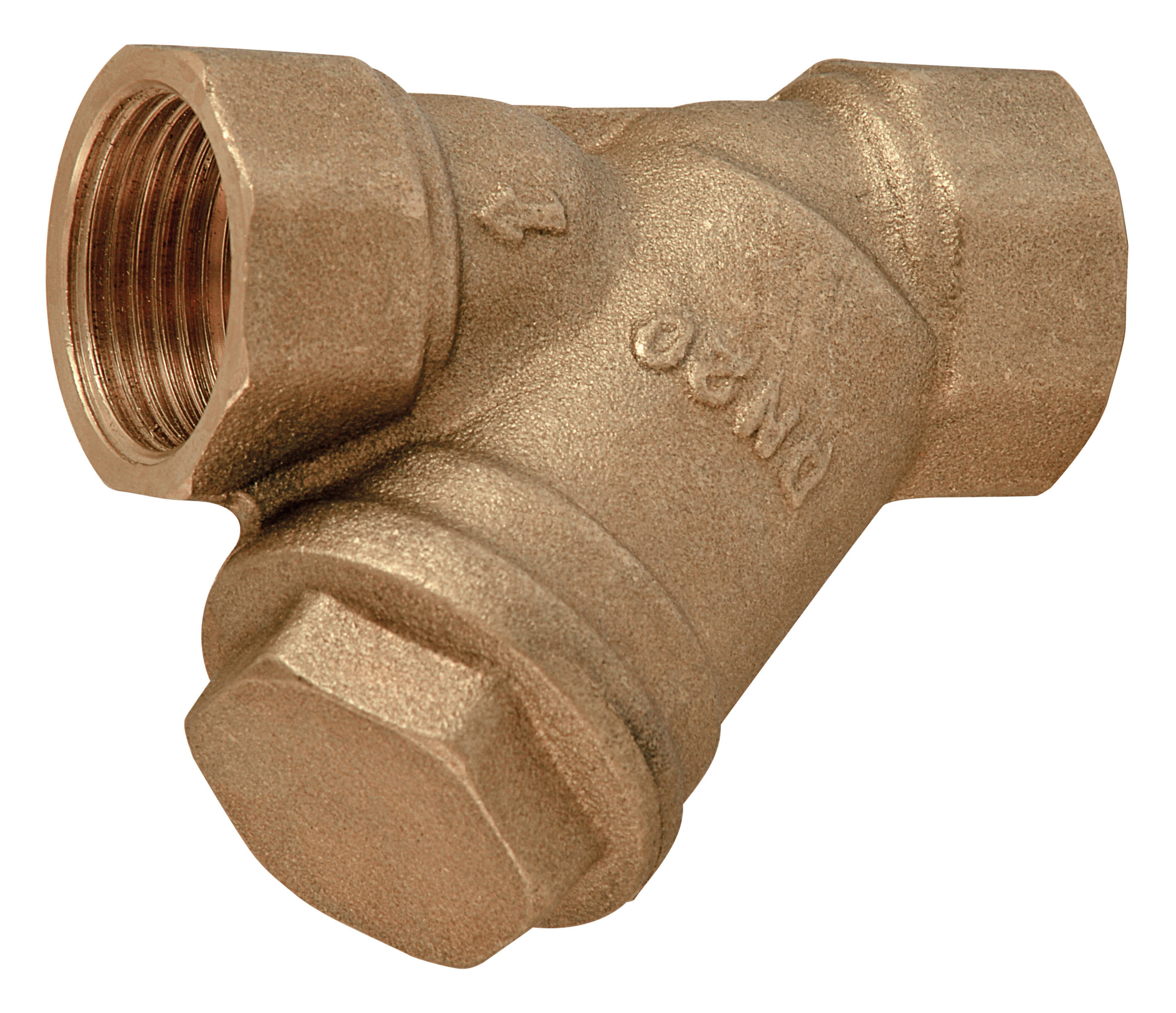

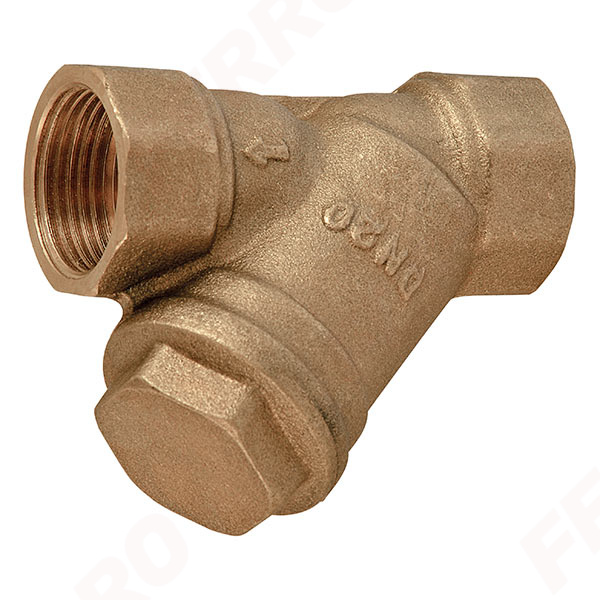

Sediment central heating filter

Sediment central heating filter

Sediment central heating filter

Code: F

Download PDF file with card product

NICKEL FREE 2018 - The surface of the valve in contact with water is not nickle-plated
Utility Valves:
- water
female - female
body: brass
filter: stainless steel
nominal pressure: 1.0 MPa (10 bar)
max. working temperature: 100°C

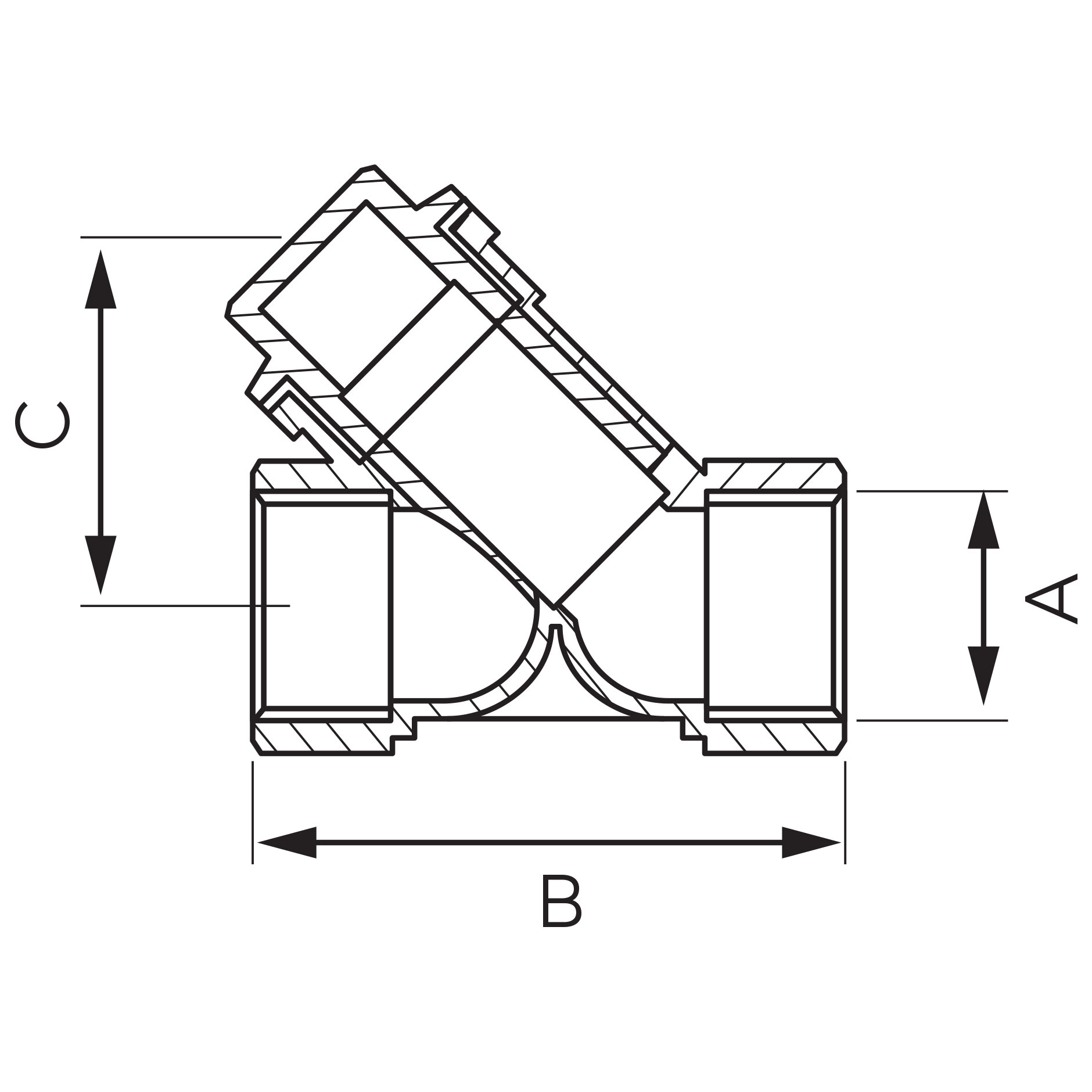

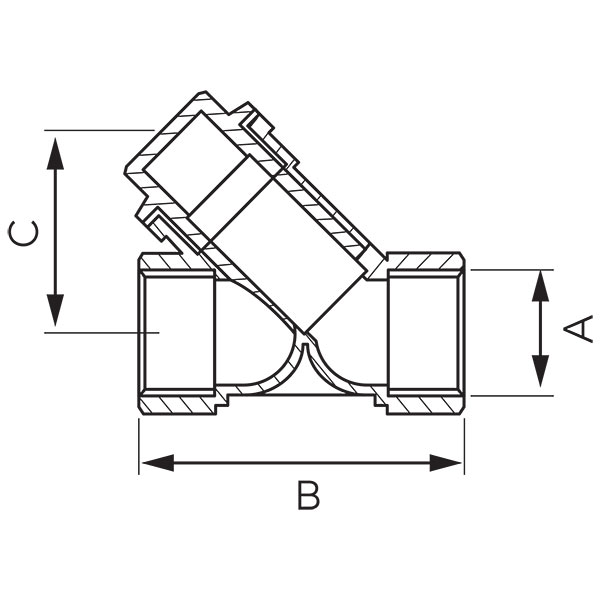

Code	Size of connectors	A	B [mm]	C [mm]	Individ. pack.	Collect. pack.	R*	E*
F02	1/2”	G1/2	54	33,5	15	180	F02W	F02E
F03	3/4”	G3/4	70	56,5	10	120	F03W	F03E
F06	1”	G1	84	44,5	10	90	F06W	F06E
F04	1 1/4”	G1 1/4	98	75	4	36	F04W
F05	1 1/2”	G1 1/2	110	82	2	24	F05W
F07	2”	G2	128	93	2	12	F07W
F08	2 1/2”	G2 1/2	143	128	1	12	F08
F09	3”	G3	160	152	1	6	F09
F10	4”	G4	182	175	1	4	F10

*R - Product in individual packaging with EAN code enabling retail sale.
*E - Products on euro-slot with barcode enabling retail sale.
