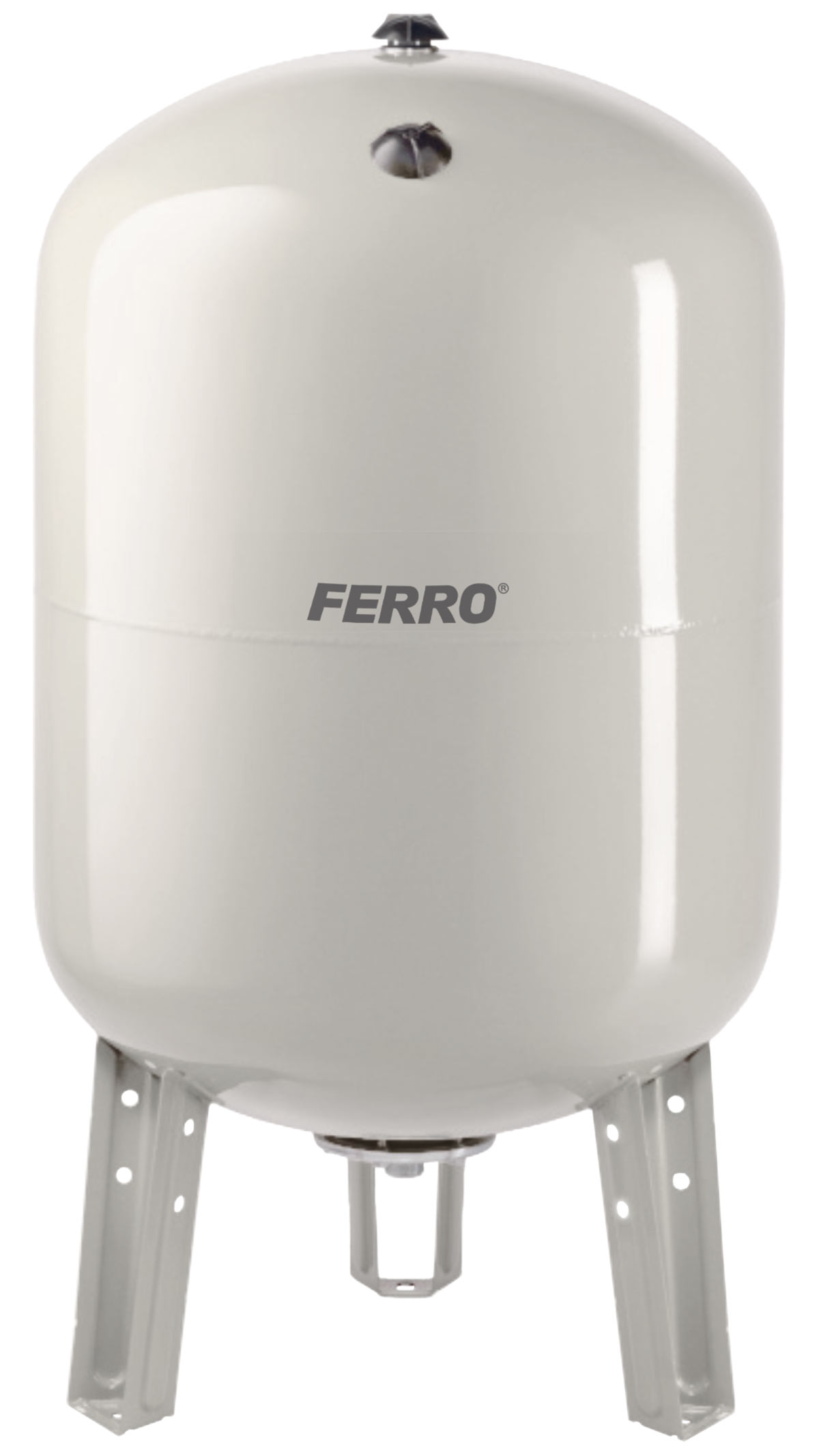

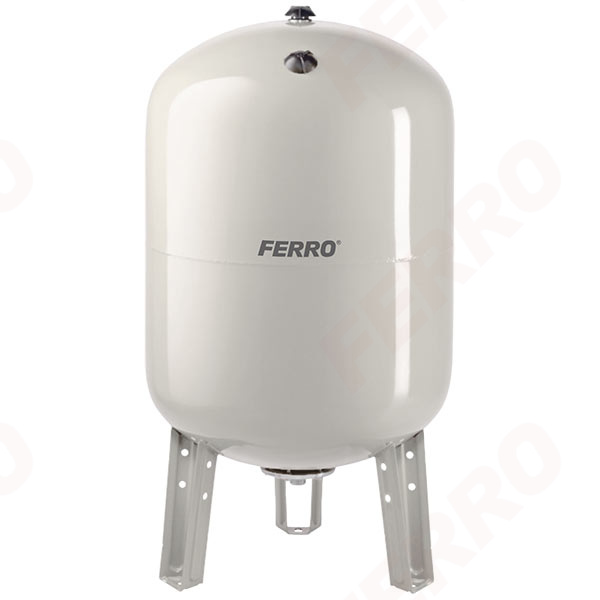

Expansion universal vessel - standing

---

Individual packaging: 1

With a barcode for retail sale

Bulk packaginig: -

Download PDF file with card product

---

• max. working pressure: 10 bar
• precharge pressure: 3.5 bar
• working temperature: from -10°C to +100°C
• membrane (replaceable): butyl
• flange material: AISI 304 stainless steel
• colour: RAL 9010
• media valves: water, glycol up to 40%

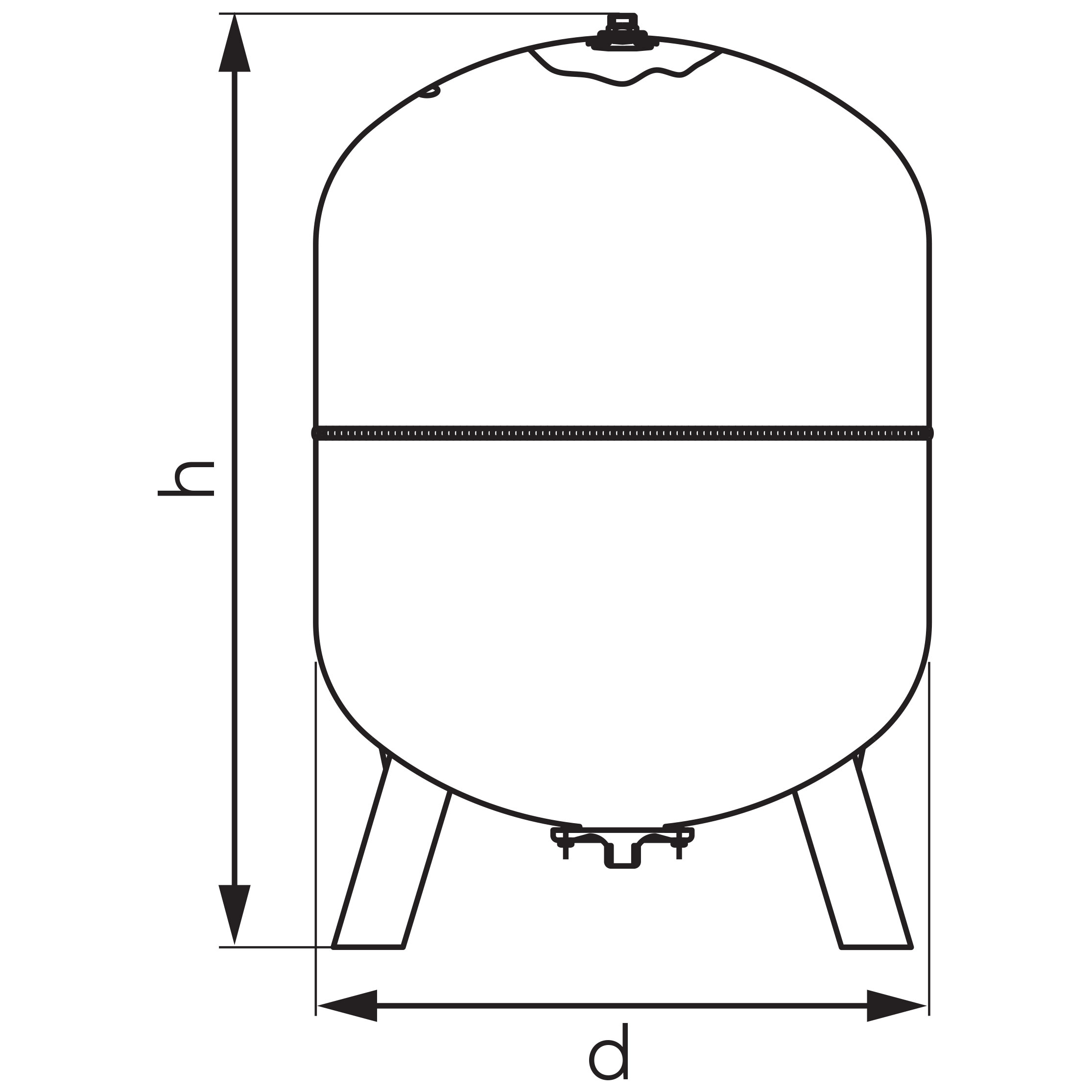

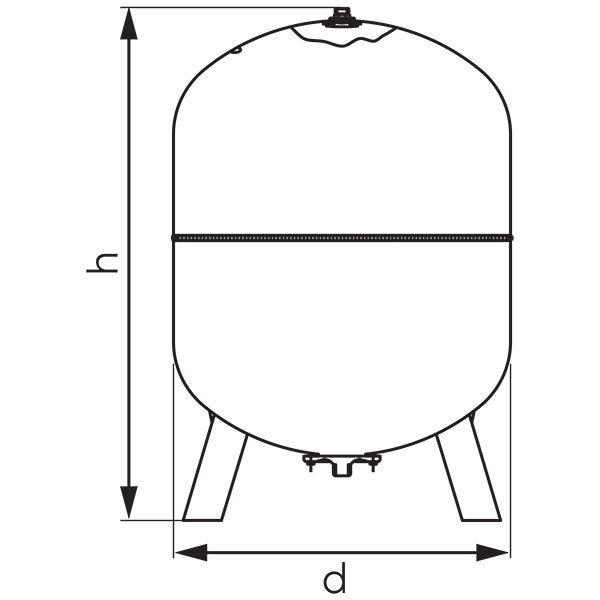

Index	Model	h [mm]	d [mm]	Connection	Volume [l]	Individ. pack.	Bulk pack.
UNI50S	MV50+	720	365	1”	50	1	-
UNI80S	MV80+	856	415	1”	80	1	-
UNI100S	MV100+	855	495	1”	100	1	-
UNI200S	MV200+	1085	600	11/4”	200	1	-
UNI300S	MV300+	1240	650	11/4”	300	1	-

---
