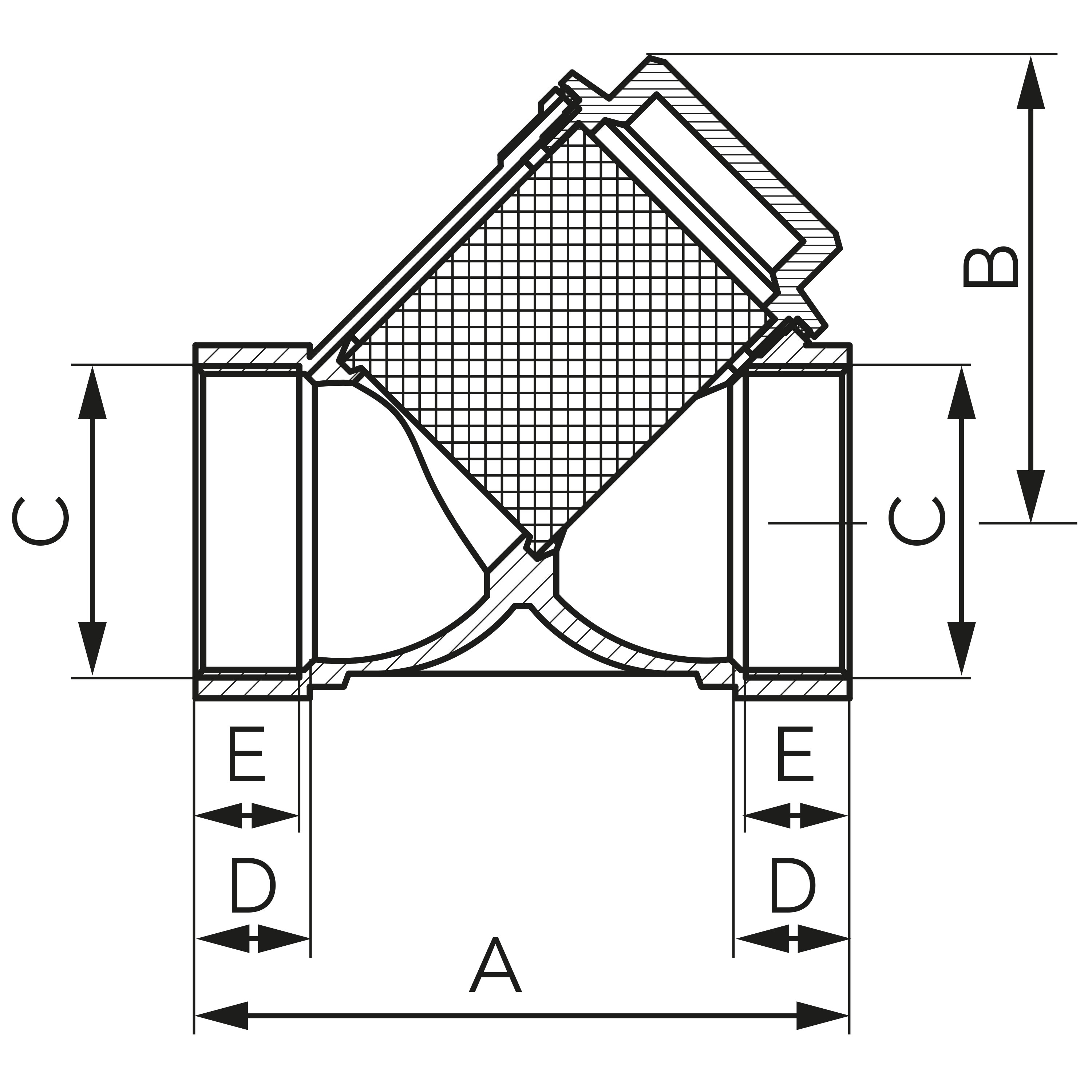

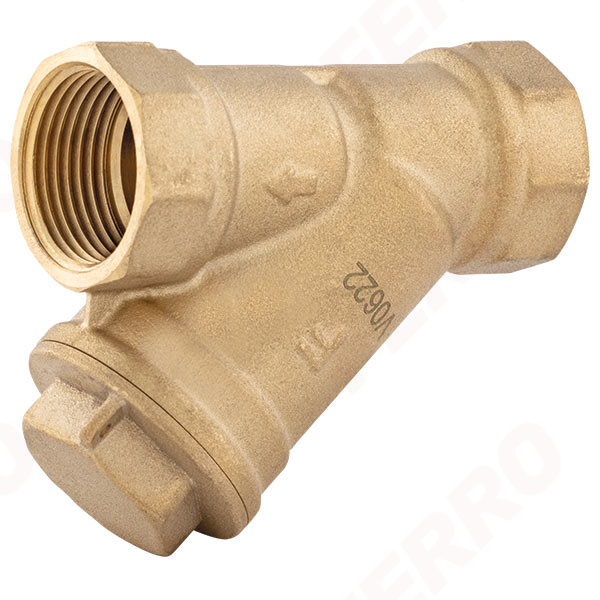

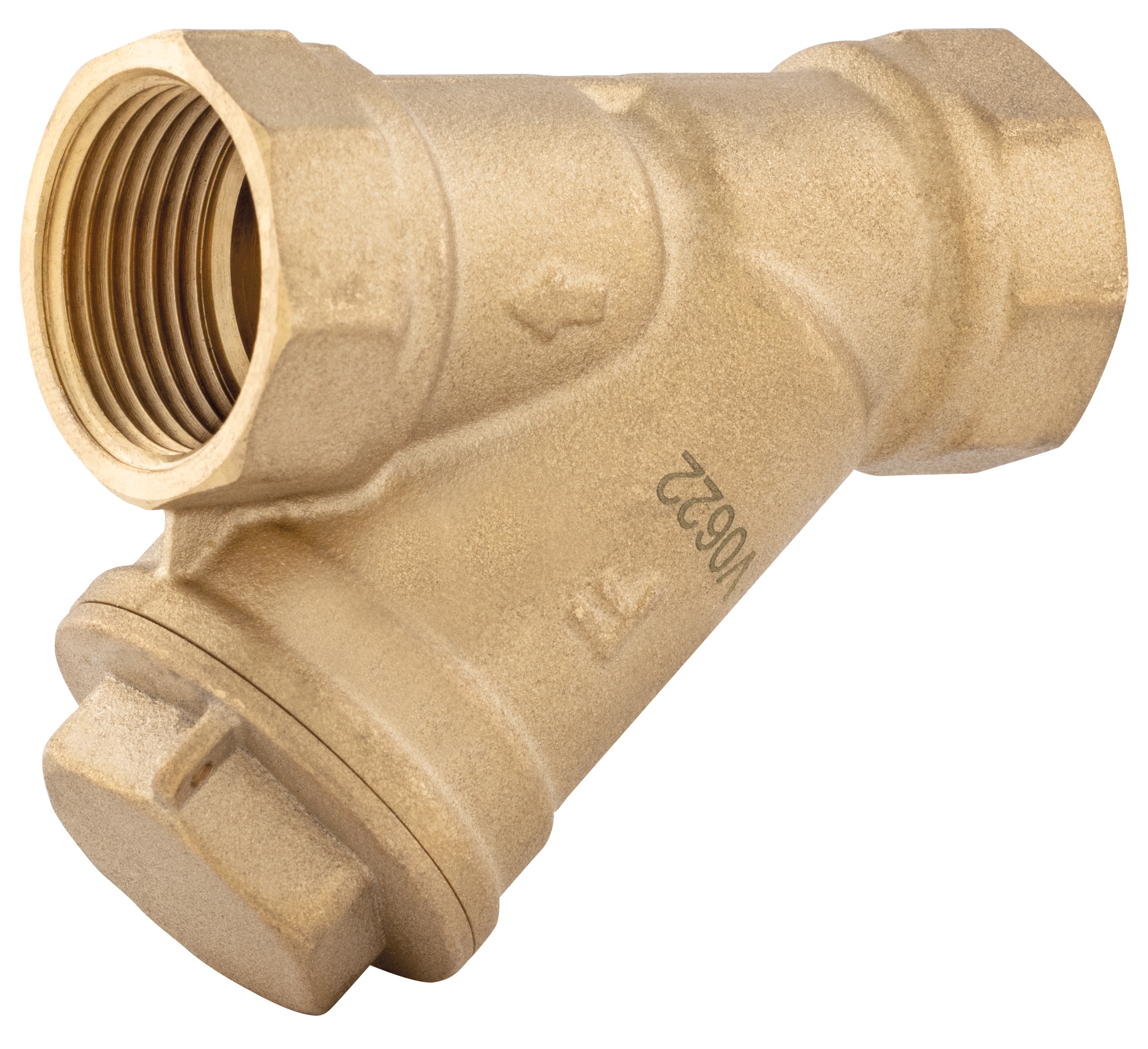

Y-strainer

Index: FxxV

With a barcode for retail sale

female - female
material of body: CW617N-4MS brass
material of filter: AISI304 stainless steel
mesh size of filter insert: 0,48 mm2 - DN15-50 1,44 mm2 - DN60-100
for use in cold and hot water systems and in heating and cooling systems where the operating medium is water or water-glycol solution (up to 50%)
nominal pressure: 16 bar (PN16)
maximum operating temperature: 120°C
NICKEL FREE - inner surfaces are not nickel-plated
CW617N-4MS brass - reduced lead and nickel content
media valves: water, glikol 50%
