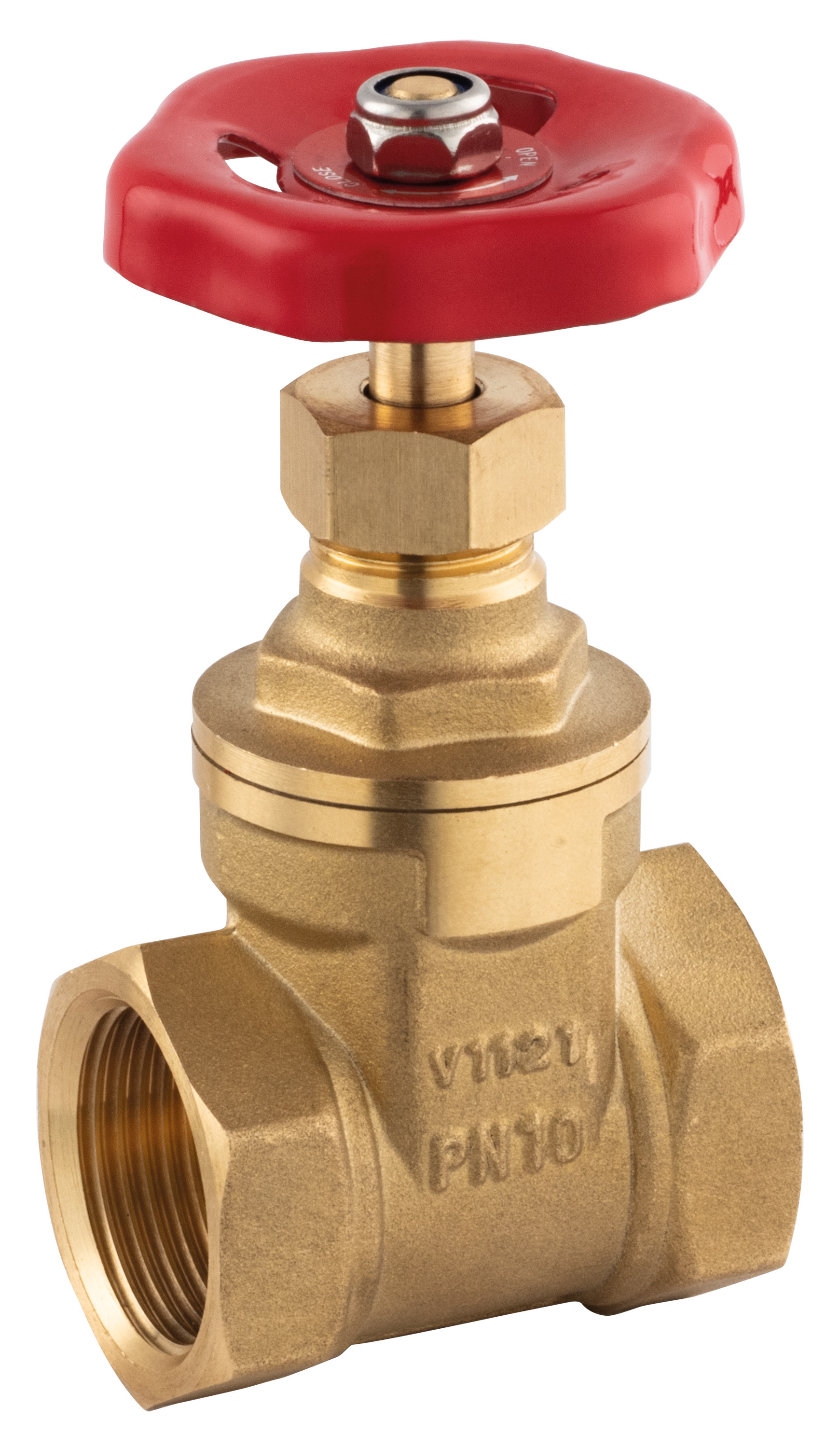

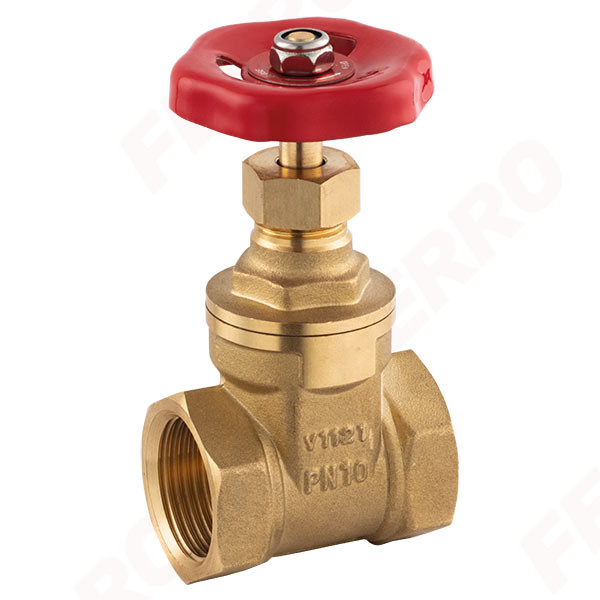

Gate valve

Gate valve

Index: ZGV

With a barcode for retail sale

Download PDF file with card product

female-female
handle: steel knob
material of body and gate: brass
material of stem sealing: PTFE
nominal pressure: 1,0 MPa (10 bar)
maximum working temperature: 100°C
NICKEL FREE - inner surfaces are not nickel-plated
CW617N-4MS brass - reduced lead and nickel content
media valves: water

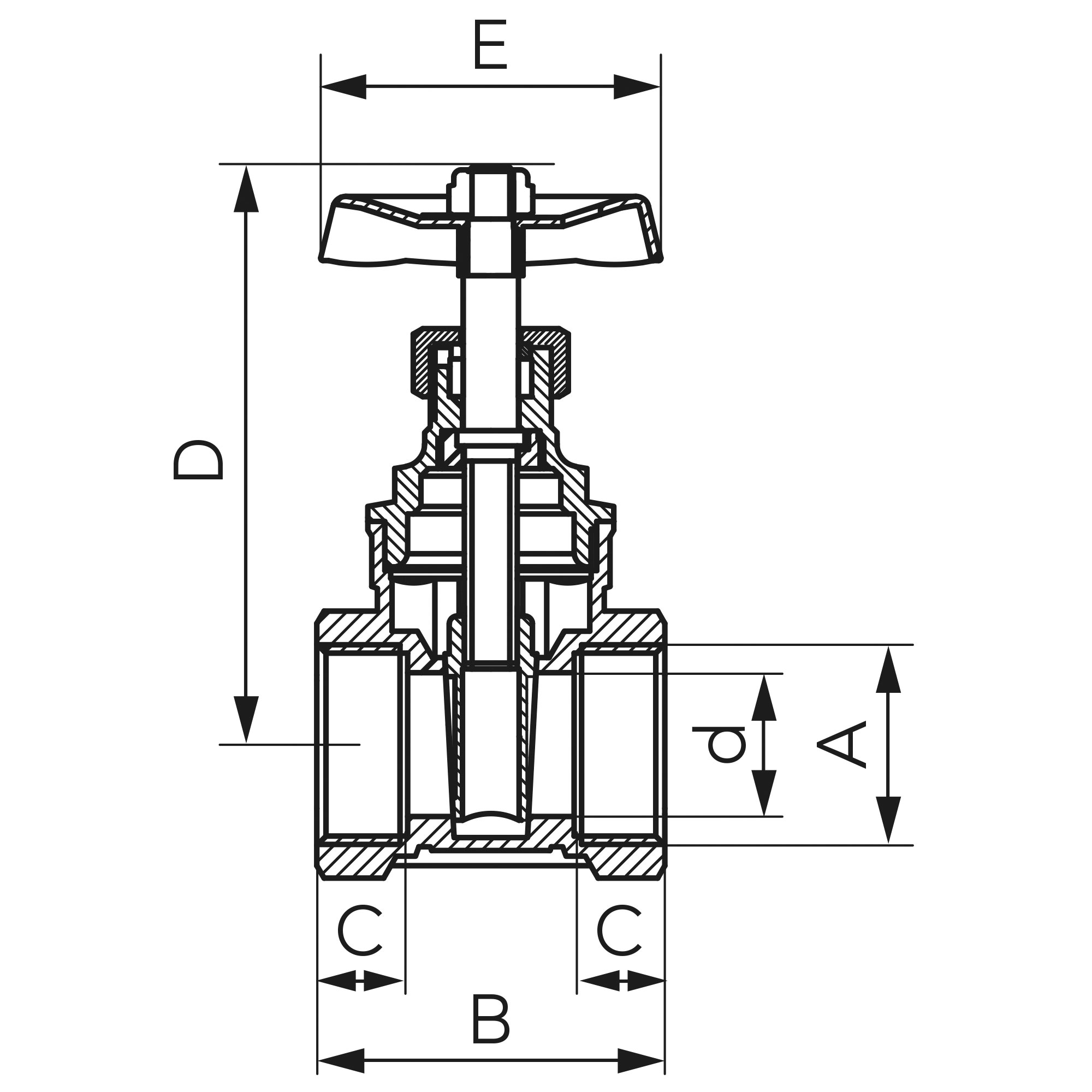

Index	DN	A	d [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Individ. pack.	Bulk pack.
ZGV01	15	G1/2	14,5	43	11,5	69	45	12	120
ZGV02	20	G3/4	19	46	12	76,5	45	12	96
ZGV03	25	G1	20	52	13	88	50	10	60
ZGV04	32	G1 1/4	27	56	13,5	99,5	60	6	36
ZGV05	40	G1 1/2	33	60	14,5	111,5	70	3	15
ZGV06	50	G2	43	70	16,5	123,5	70	2	20
ZGV07	65	G2 1/2	54	76,5	17,5	156	89	2	12
ZGV08	80	G3	65	77,5	19	173	110	1	6
ZGV09	100	G4	86,5	97	21,5	218,5	110	1	3
