Safety group sets

Index: GBx

Individual packaging: 1

With a barcode for retail sale

Bulk packaginig: -

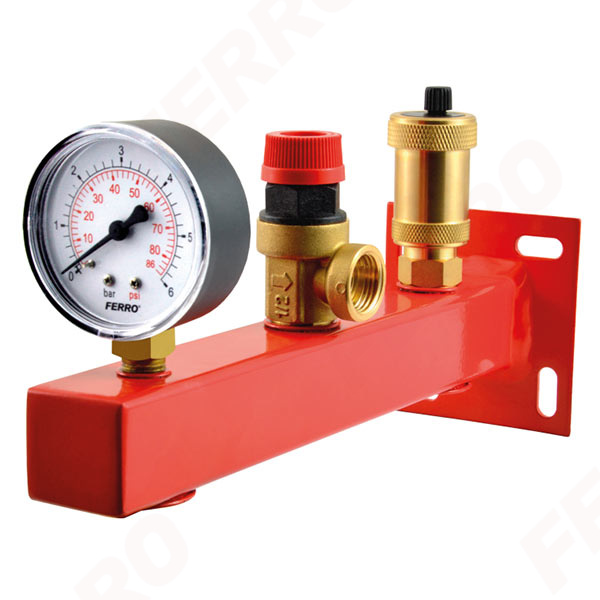

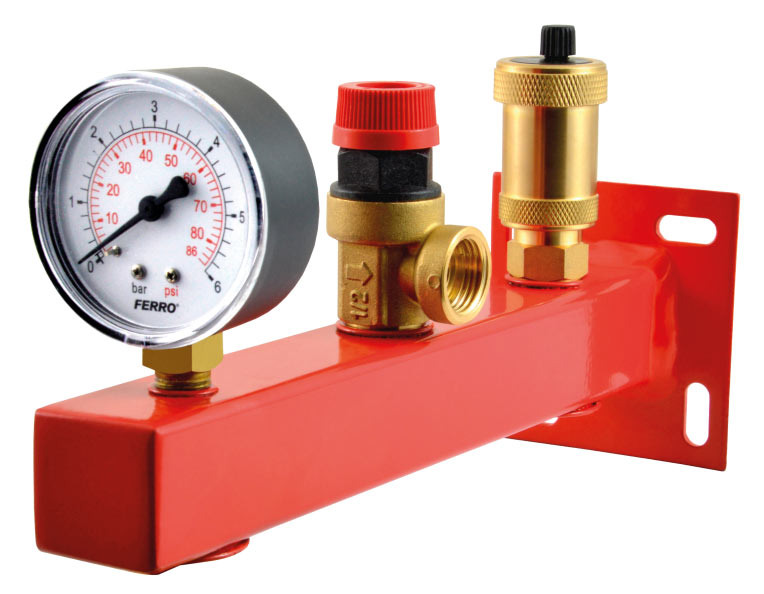

The safety group set is a system protecting the installation against dangerous pressure increase caused by water temperature increase and its thermal expansion.
working temperature: 95°C
working pressure: up to 6 bar
max. instantaneous water temperature: 110°C
for expansion vessels with a capacity up to 35 l and a diameter not more than 320 mm

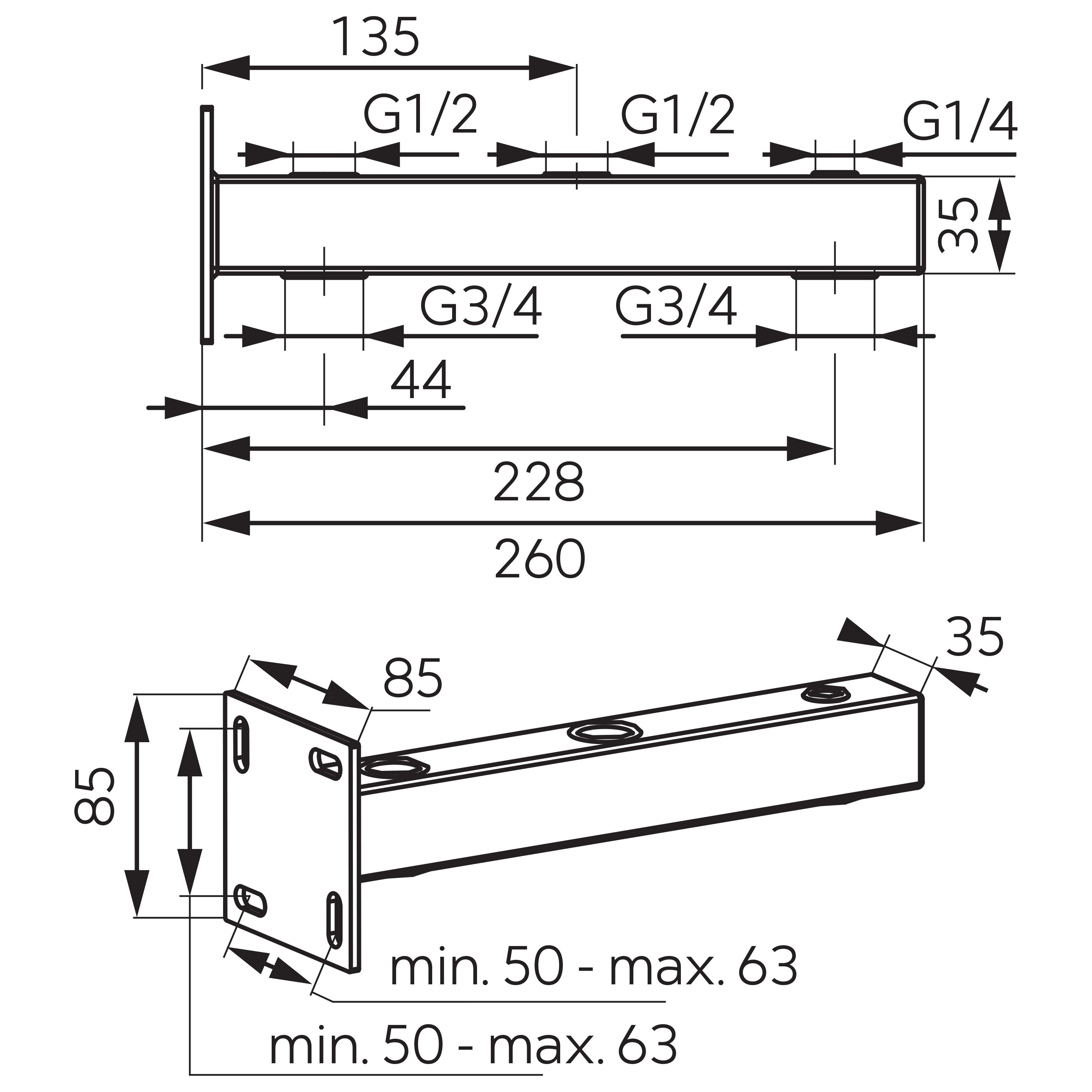

2 mm thick steel beam
Self-assembly kit. The set includes:
- safety valve
- pressure gauge
- automatic air vent with foot valve
