F-Power - angle ball valve

F-Power - angle ball valve

F-Power - angle ball valve

Code: KFPS3A

Download PDF file with card product

warranty: 10 years
application: water, glycol 50%, compressed air
female-male with union
additional nut with a seal on the mounting thread
with gland
handle: butterfly
body and ball material: brass
material of ball and stem seals: PTFE
nominal pressure: 30 bar (PN30)
maximum working temperature: 120°C
NICKEL FREE - inner surfaces are not nickel-plated
CW617N-4MS brass - reduced lead and nickel content

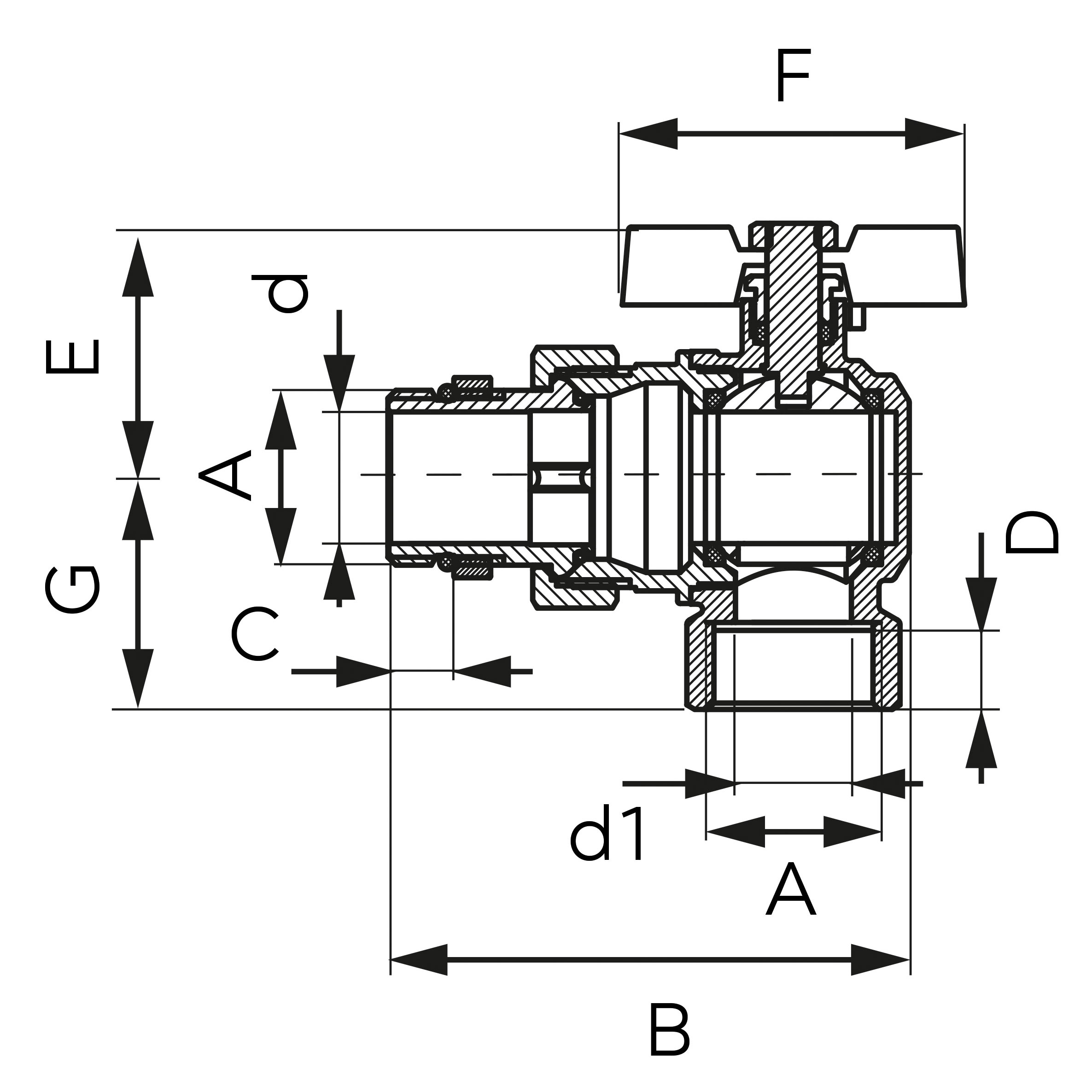

Code	DN	A	d [mm]	d1 [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	G [mm]	Kvs [m3/h]	Individ. pack.	Collect. pack.
KFPS3A	25	G1	25	22	99	12,5	16,5	47,6	65	44	10,93	2	20
