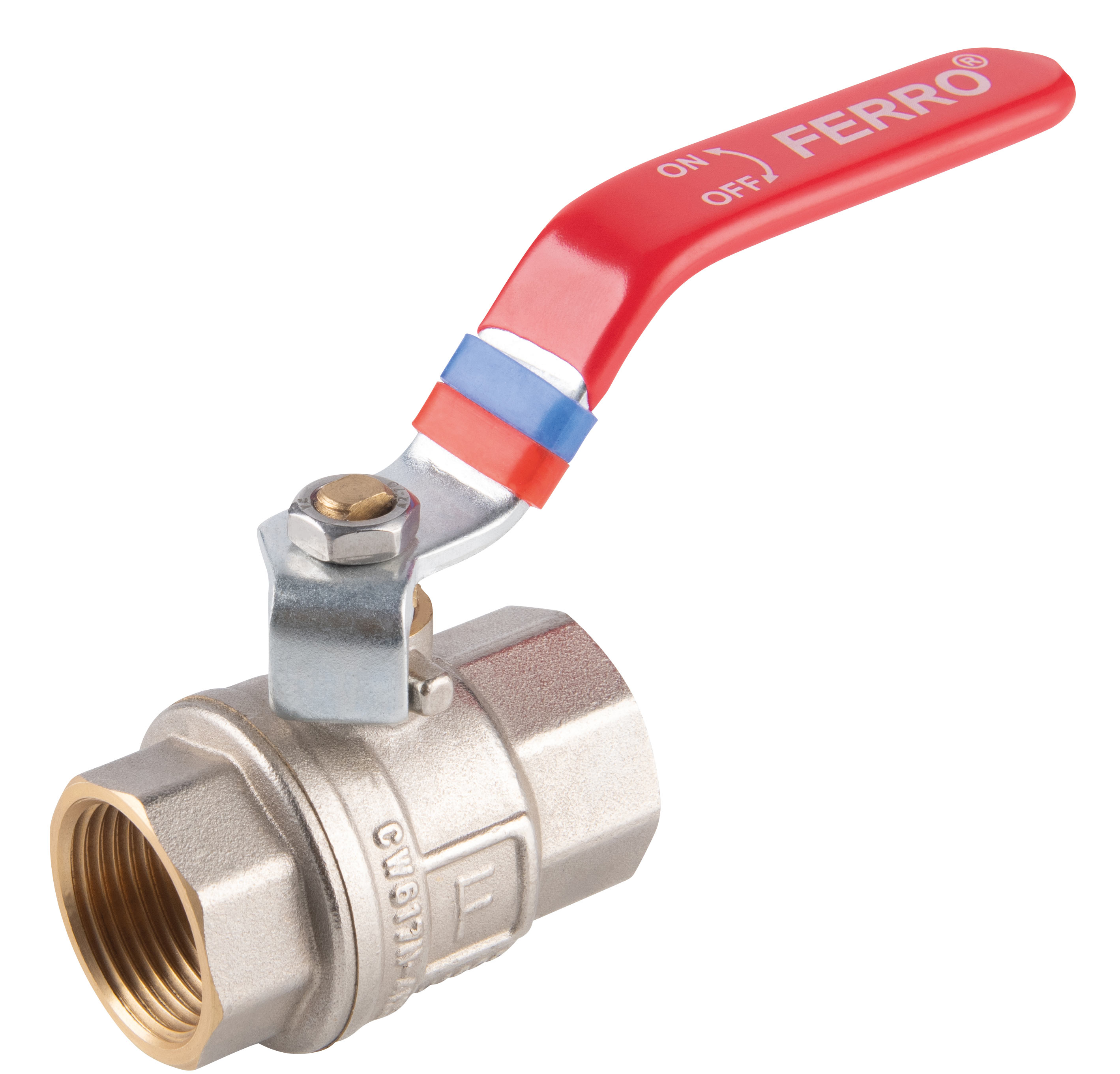

F-Power - ball valve

F-Power - ball valve

F-Power - ball valve

F-Power - ball valve

F-Power - ball valve

Index: KFP

With a barcode for retail sale

Download PDF file with card product

  • warranty: 10 years
  • media valves: water, glycol 50%, compressed air
  • female-female
  • full bore
  • with gland
  • handle: metal lever
  • body material: brass
  • ball material: brass (DN10-DN50), stainless steel (DN65-DN100)
  • material of ball and stem seals: PTFE
  • nominal pressure DN10 - DN50: 30 bar (PN30)
  • nominal pressure DN65 - DN100: 25 bar (PN25)
  • maximum working temperature: 120°C
  • minimum working temperature: -30°C
  • NICKEL FREE - all product elements which may have contact with potable water are not covered with nickel
  • CW617N-4MS brass - the latest hygienic standard
Index DN A d [mm] C [mm] B [mm] E [mm] D [mm] Kvs [m3/h] Individ. pack. Bulk pack.
KFP10 10 G3/8 10 9 43 45 94 4,33 20 120
KFP1 15 G1/2 15 10,5 50,5 48,5 96 7,86 12 120
KFP2 20 G3/4 20 11 56 55 101,5 15,60 10 80
KFP3 25 G1 25 13 66,5 65,5 116,5 24,13 8 48
KFP4 32 G1 1/4 32 14 79 70,5 116,5 44,97 8 32
KFP5 40 G1 1/2 40 14,5 90 74 126,5 66,94 4 24
KFP6 50 G2 50 16 104 90,5 151,5 105,65 2 12
KFP7 65 G2 1/2 65 24 141 123,5 242 - 1 4
KFP8 80 G3 80 24 160 135,5 242 - 1 4
KFP9 100 G4 98 28 192 149 267 - 1 2
