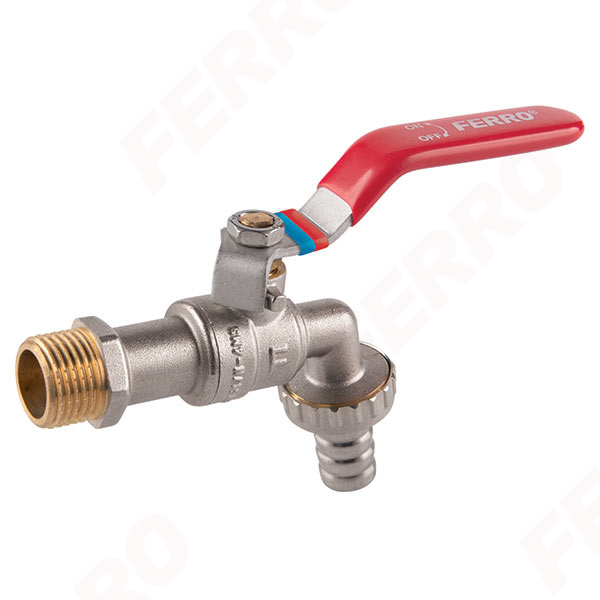

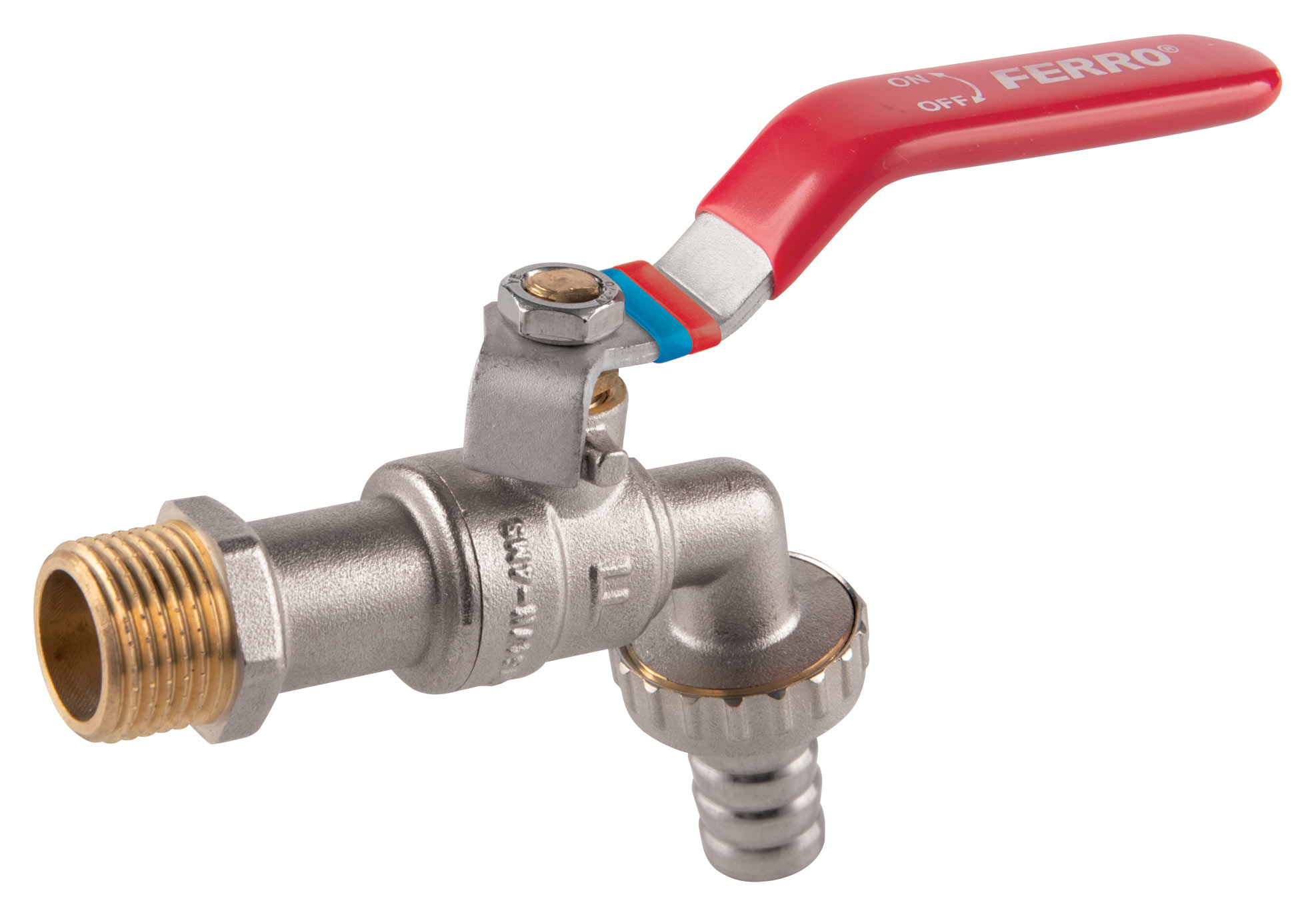

F-Comfort - Bibcock with metal tip

F-Comfort - Bibcock with metal tip

F-Comfort - Bibcock with metal tip

Code: KCN

Download PDF file with card product

warranty: 5 years
medium: water
with gland and packing nut
handle: metal lever
body and ball material: brass
brass CW617N-4MS - reduced lead and nickel content
material of ball and stem seals: PTFE
nominal operating pressure: 10 bar (PN20)
nominal operating temperature: 100°C
NICKEL FREE - the surface of the valve that may be in contact with water is not nickel plated

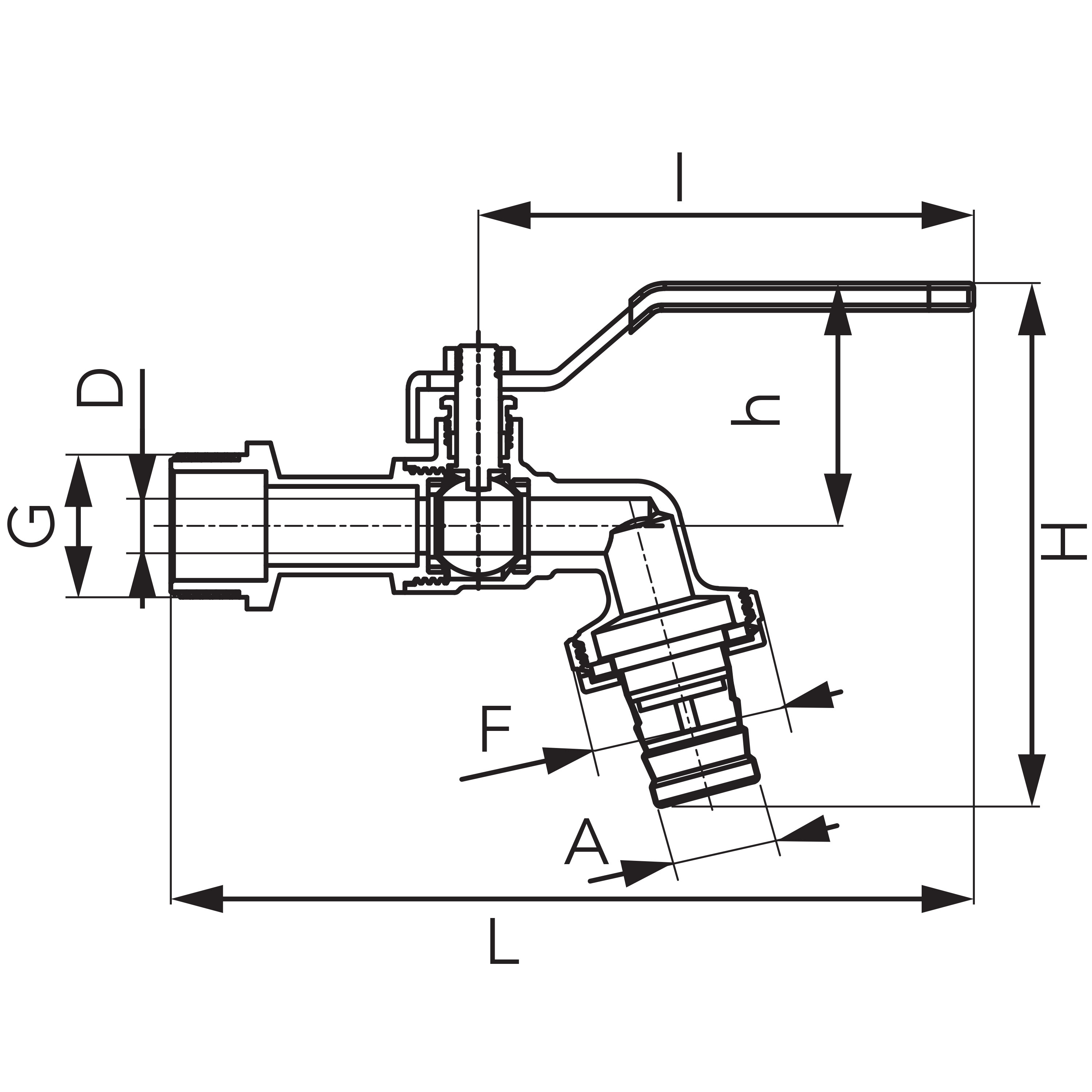

Code	DN	G	D [mm]	L [mm]	I [mm]	H [mm]	h [mm]	A [mm]	F	Kvs [m³/h]	Individ. pack.	Collect. pack.
KCN1	15	G1/2	10	144	90	92	43	15	G3/4	2,50	15	60
KCN2	20	G3/4	10	148	90	95	43	19,5	G1	2,72	10	60
KCN3	25	G1	16	182	112	119	55	27	G1 1/4	8,19	5	30
