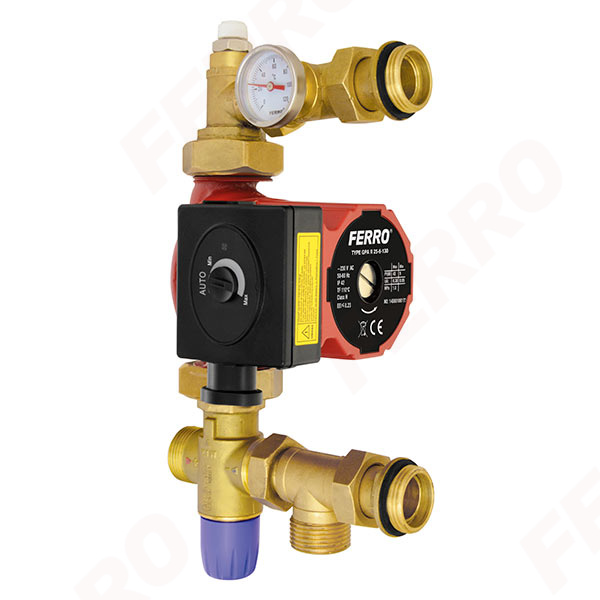

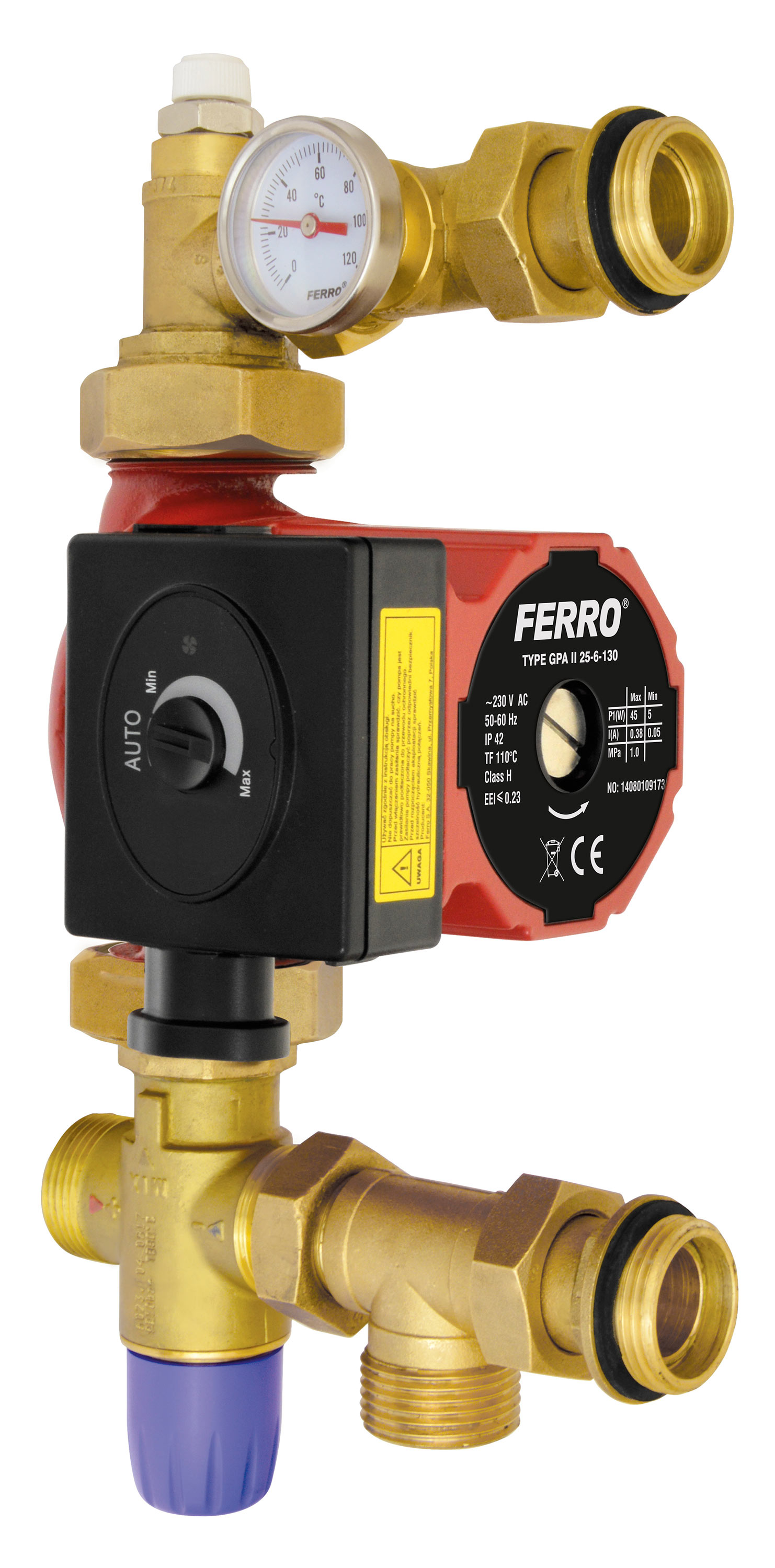

Mixing group GM1F - with electronic pump 25-6-130 GPAII

Mixing group GM1F - with electronic pump 25-6-130 GPAII

Mixing group GM1F - with electronic pump 25-6-130 GPAII

Mixing group GM1F - with electronic pump 25-6-130 GPAII

Mixing group GM1F - with electronic pump 25-6-130 GPAII

Code: GM1F-60GPA


Opakowanie jednostkowe Individual packaging: 1
with a barcode for retail sale

Collective packaginig: -

Download PDF file with card product


  • The mixing group serves to lower and maintain the desired temperature of the heating medium in the surface heating system.
  • Technical parameters:
    • Static pressure (PN): max. 0,4 MPa (4 bar)
    • Dynamic working pressure: max. 0,3 MPa (3 bar)
    • Flow factor Kv: 1,9 m3/h
    • Temperature regulation range: 20-40°C
    • Accuracy of regulation: +/- 3°C
  • The group contains:
    • 3-way thermostatic mixing valve
    • Air vent
    • Thermometer
    • Set of unions
  • Advantages:
    • Universal group for all types of manifolds with 210 mm bar spacing
    • Precise and simple control
    • Reversible
