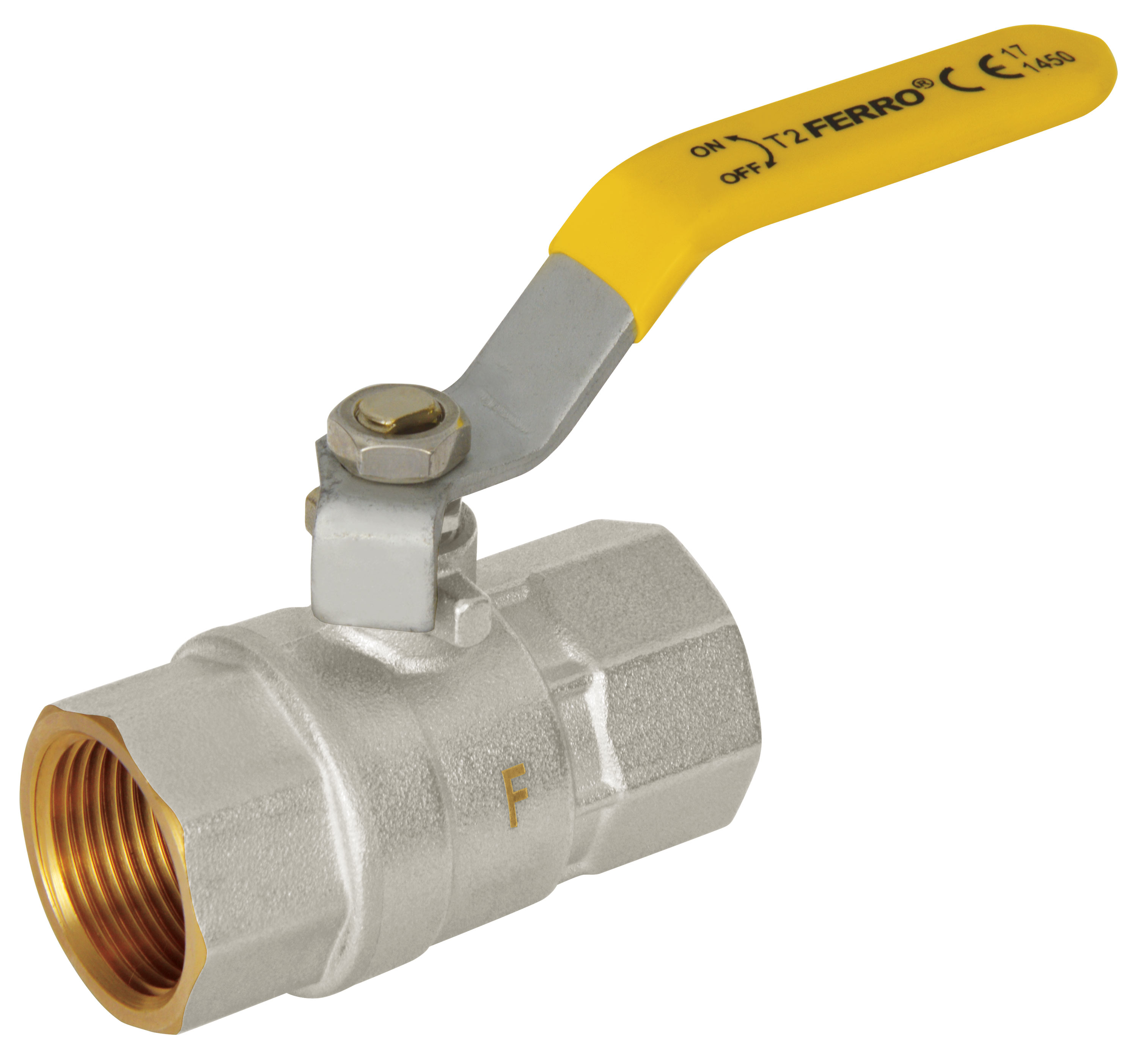

Gas ball valve - type G18

Gas ball valve - type G18

Gas ball valve - type G18

Index: KGSx

Download PDF file with card product

female - female
with gland
handle: metal lever
body and ball material: high quality brass CW617N
ball sealing: PTFE
stem sealing: PTFE and O-ring with NBR70
max. working pressure: MOP5 (0.5 MPa)
working temperature: T2 (-20°C to 60°C)

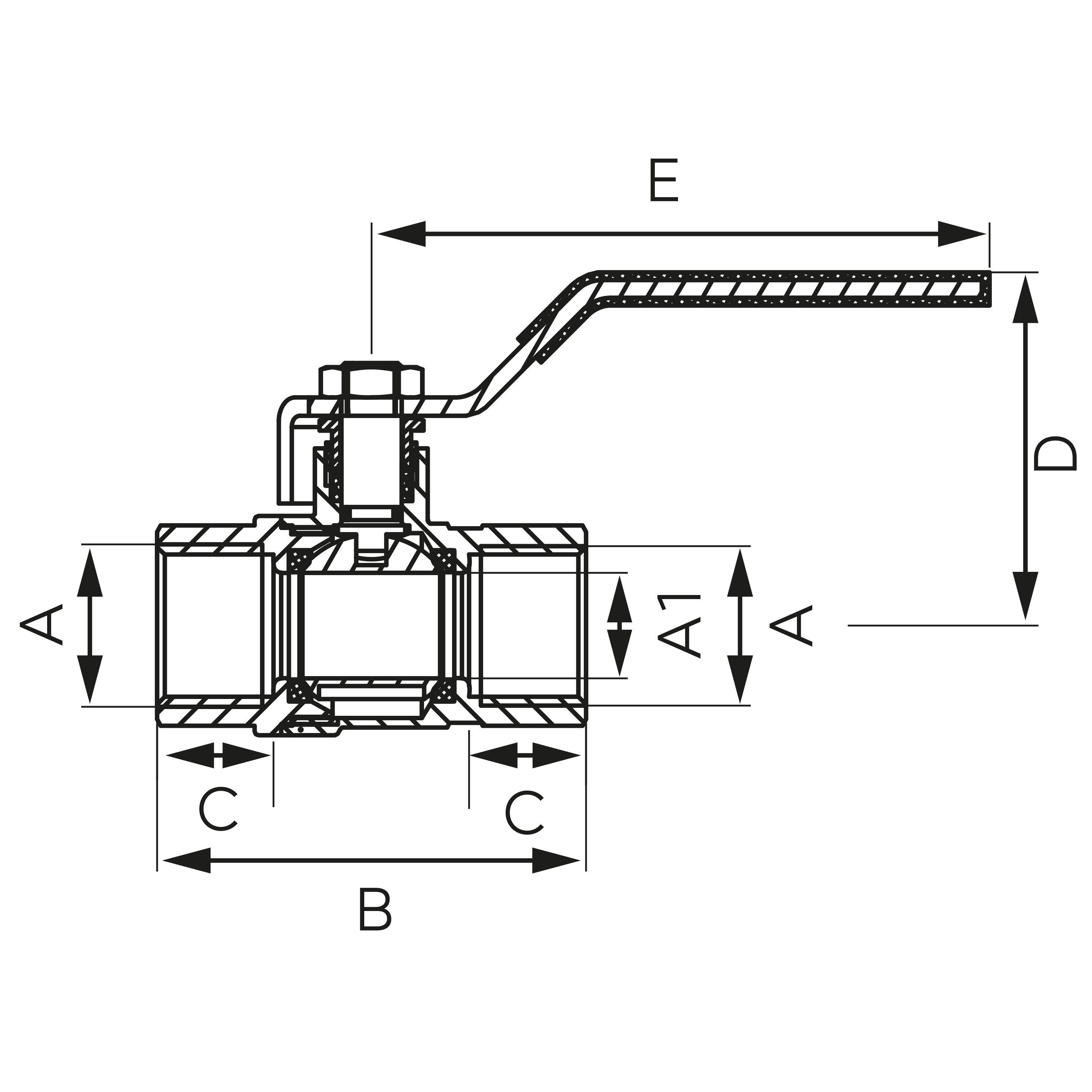

Index	DN	A	A1 [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Individ. pack.	Bulk pack.	R*
KGS1	15	Rp 1/2	14	57±1	min. 15	47,8±1	82±1	14	126	KGS1W
KGS2	20	Rp 3/4	18,5	66,7±1	min. 16.3	49,3±1	104±1	9	81	KGS2W
KGS3	25	Rp 1	23	78±1	min. 19.1	57,3±1	104±1	9	54	KGS3W

*R - Product in individual packaging with EAN code enabling retail sale.
