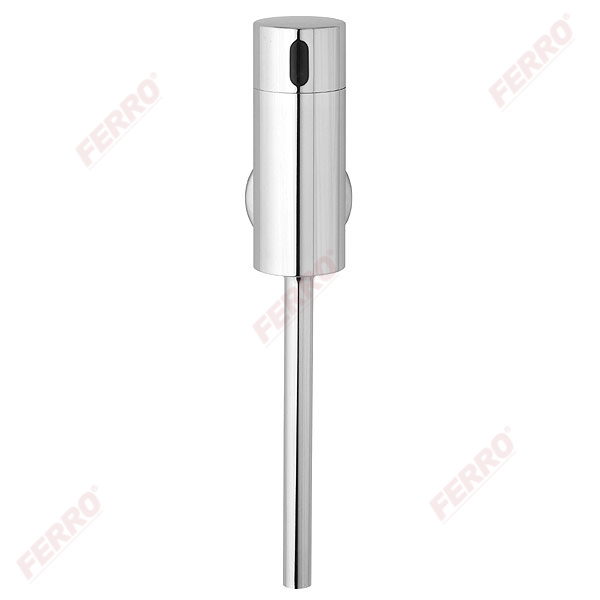

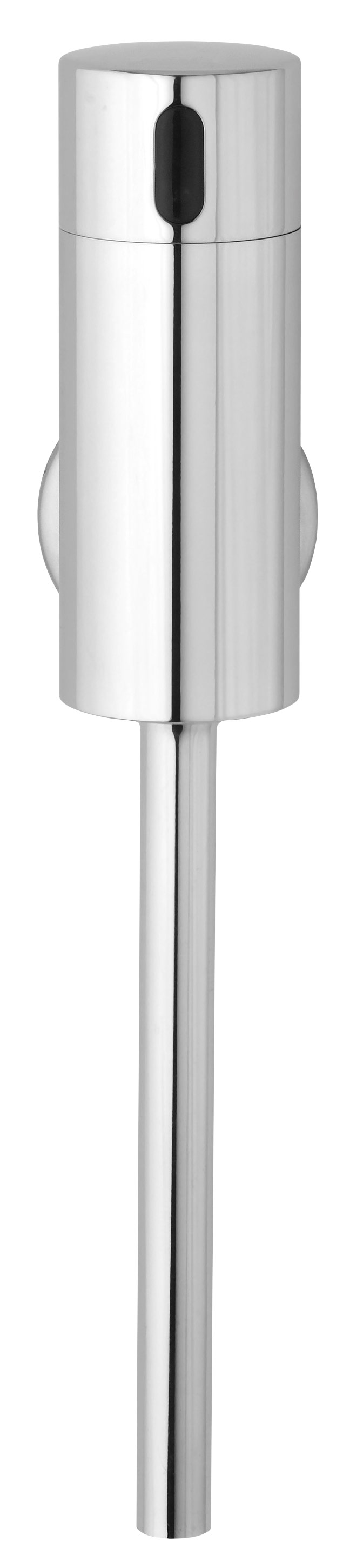

Zephyr Sensor - electronic urinal valve

Download PDF file with card product

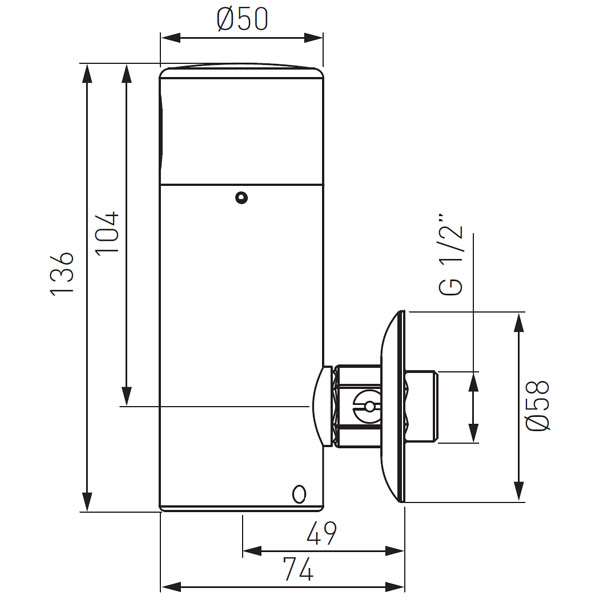

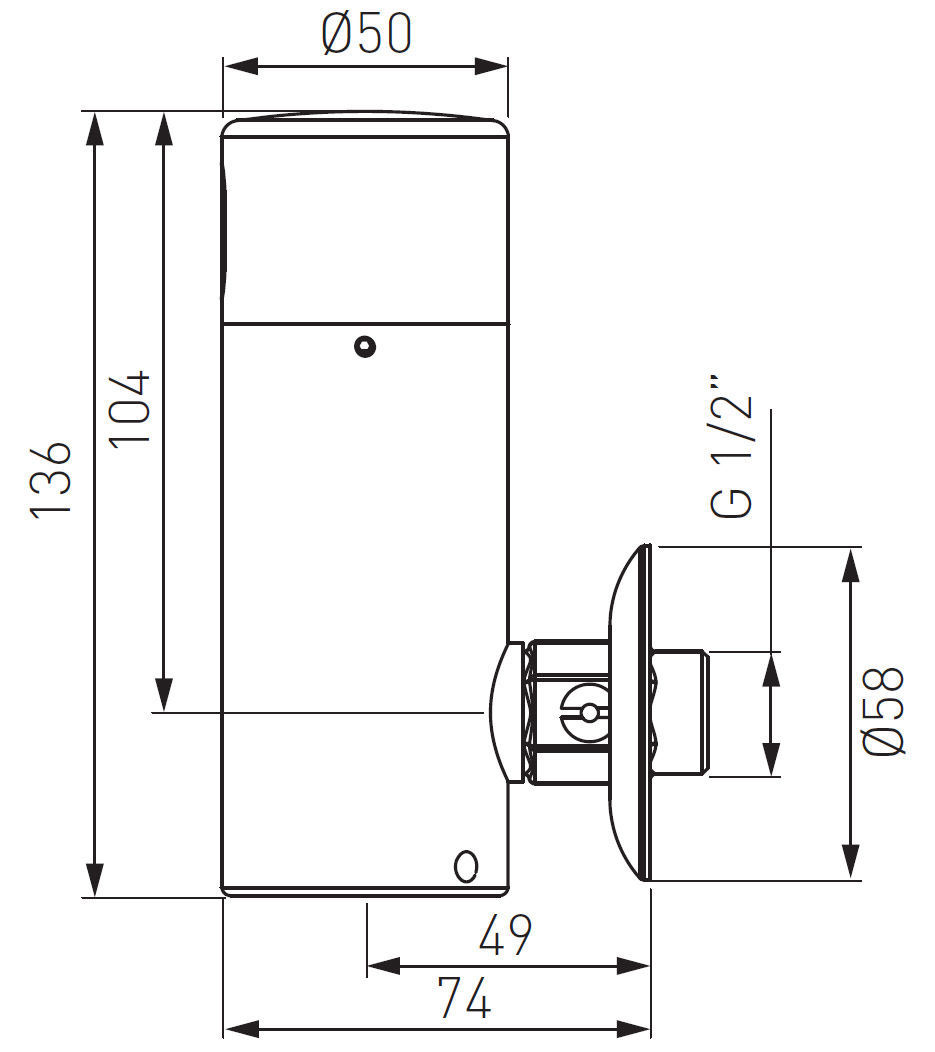

AutoCAD (DWG) file: BBB211.dwg

3D Studio Max (3ds) file: BBB211.3ds

• power supply: 9V battery
• main connection: 1 x 1/2” M
• permissible working pressure: 1,0 bar - 8,0 bar (14,5-116 PSI)
• automatic fl ushing: 1 x 24 h
• factory set detection range: 600 mm
• sensor range: adjustable within 80 - 300 mm range
• factory set flush time: 6 seconds
• factory set flow volume: ~1,0 lpf (at 1 bar dynamic pressure)
• finish: chrome
• settings setup: with RC01 remote control
