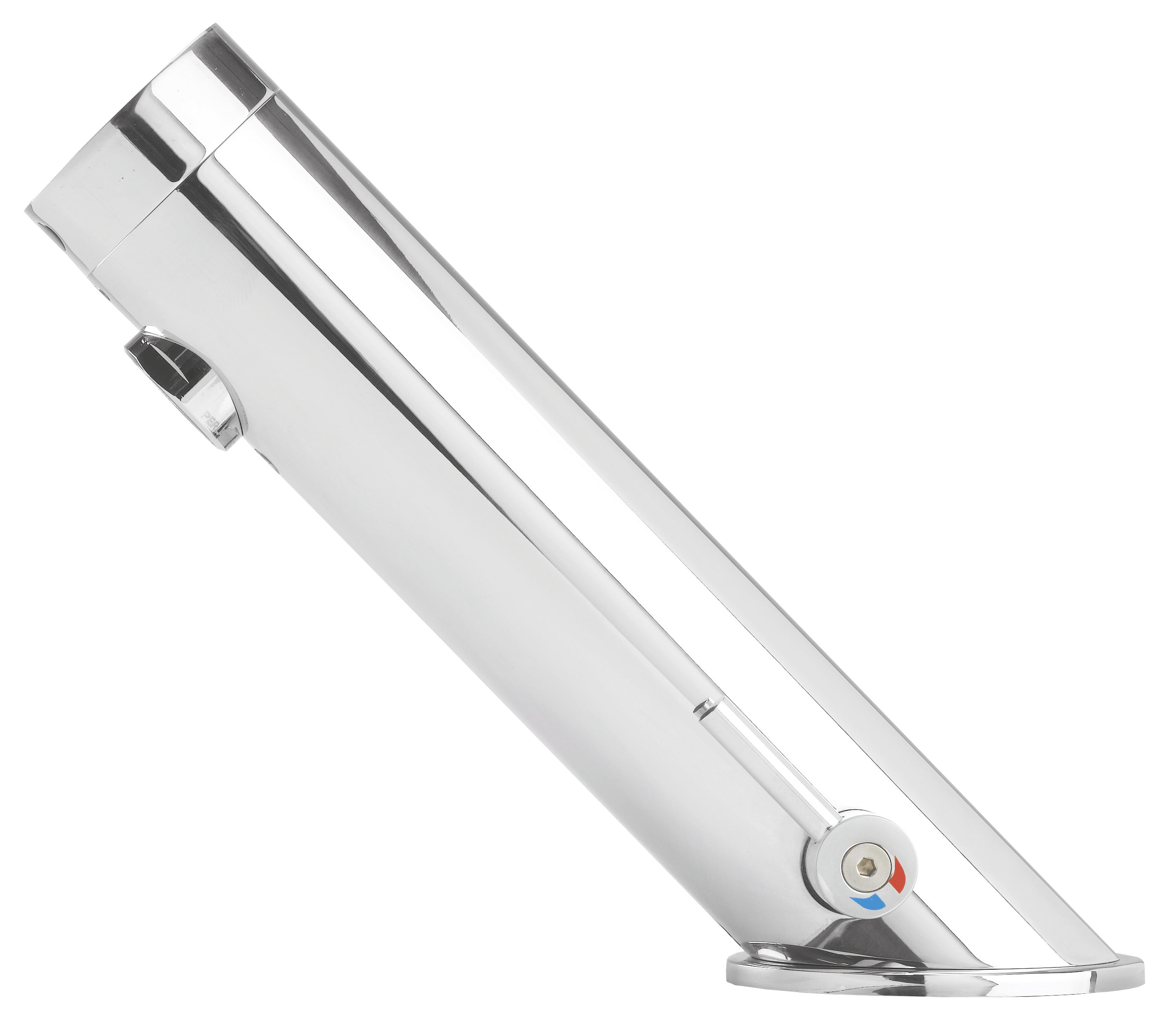

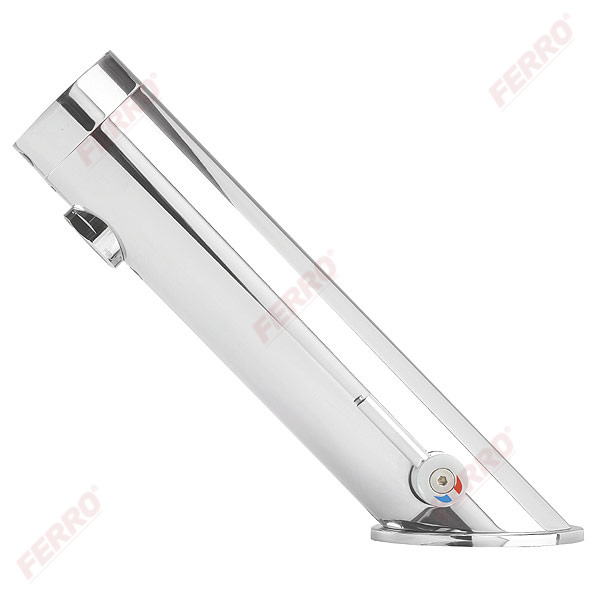

Mistral Sensor - electronic washbasin faucet with built-in mixing valve

Download PDF file with card product

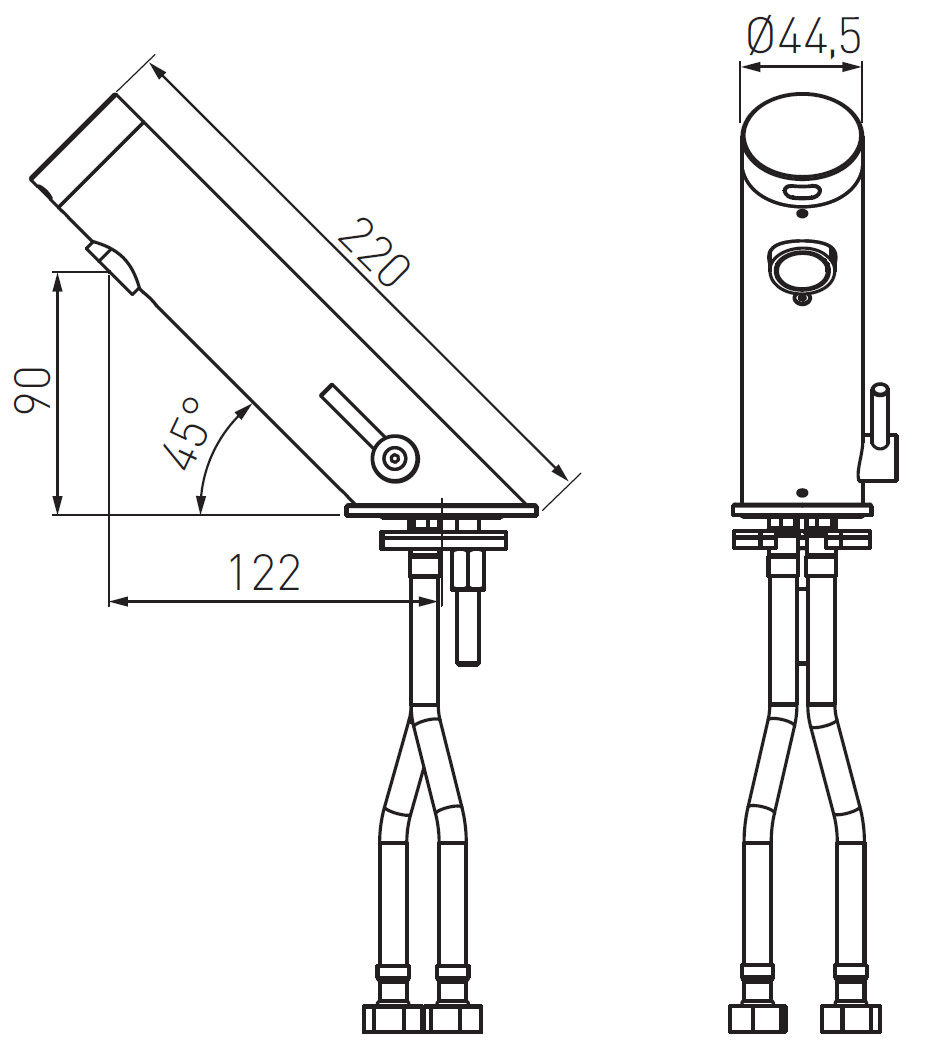

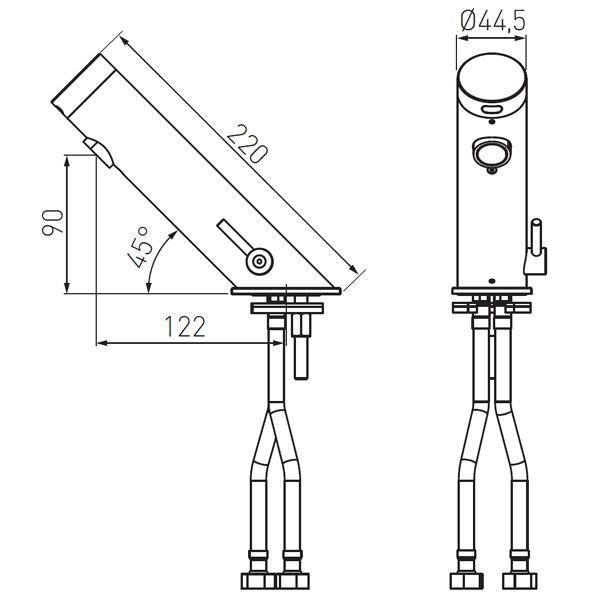

AutoCAD (DWG) file: BBB111.dwg

3D Studio Max (3ds) file: BBB111.3ds

• power supply: 9V battery
• flexible connection hoses: 3/8” M (2 pcs) L=45 cm
• permissible working pressure: 0,5 bar - 8,0 bar (7-116 PSI)
• water flow: ~5,0 l/min (at 3 bar dynamic pressure)
• flow regulator: M24x1 with adjustable flow direction
• factory set detection range: 180 mm
• sensor range: adjustable within 50-160 mm range
• security time against continuous flushing: 90 seconds
• permissible water temperature: 70°C
• finish: chrome
• settings setup: with RC01 remote control
