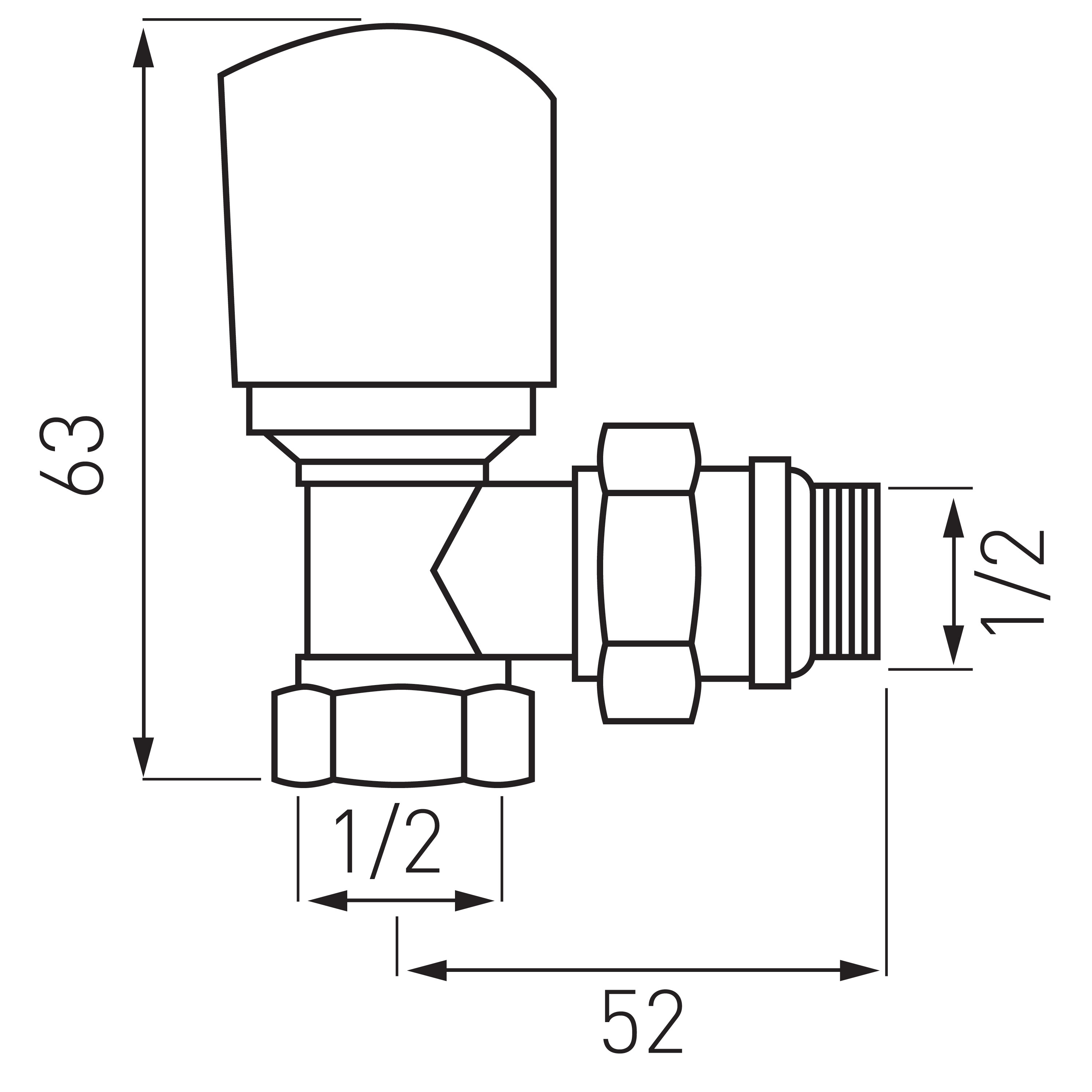

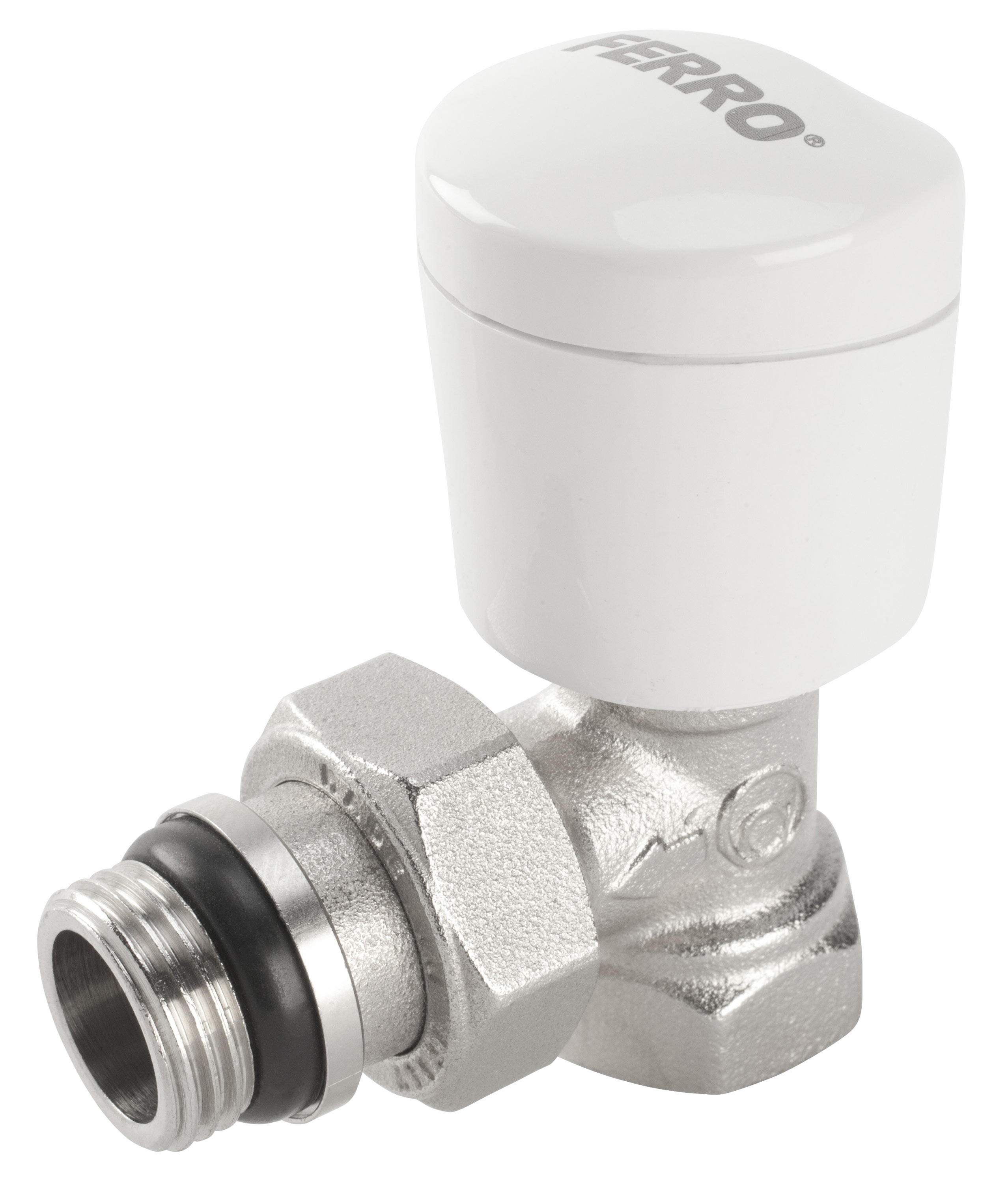

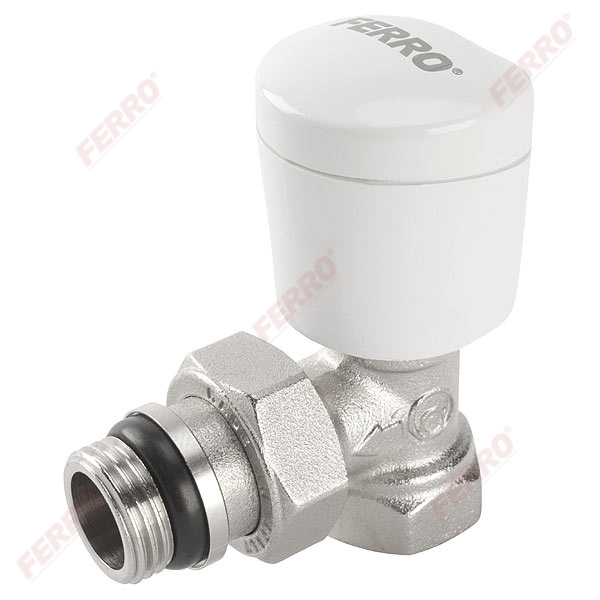

Thermostatic angle valve 1/2” x 1/2”

---

Individual packaging: -

Bulk packaginig: -

Download PDF file with card product

---

• connection thread for head: M30 x 1.5
• max. permissible static pressure: 1 MPa
• max. permissible pressure difference: 0.1 MPa
• max. working temperature: 100°C
• connection with additional O-ring sealing
• the valve with 2-in-1 function: valve equipped with ergonomic knob for manual adjustment. After removing the knob, the thermostatic head can be mounted with a typical M30 x 1.5 thread
• water, 50% glycol concentration

Index	Individ. pack.	Bulk pack.	R*
ZTI5Y	10	60	ZTI5YW

*R - Product in individual packaging with EAN code enabling retail sale.

---
