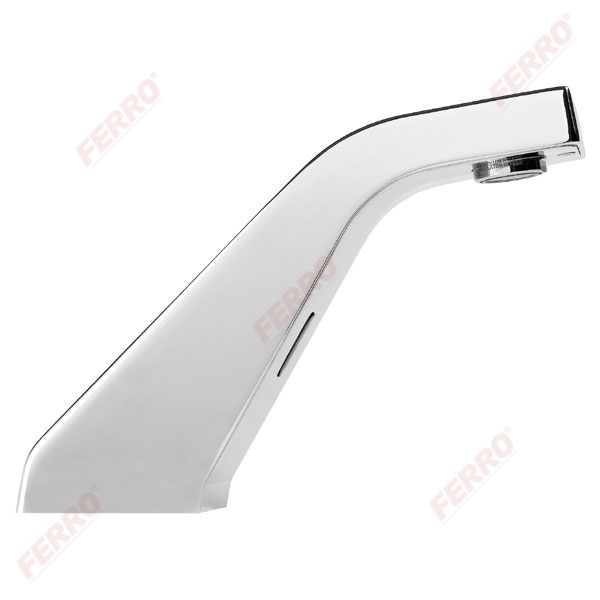

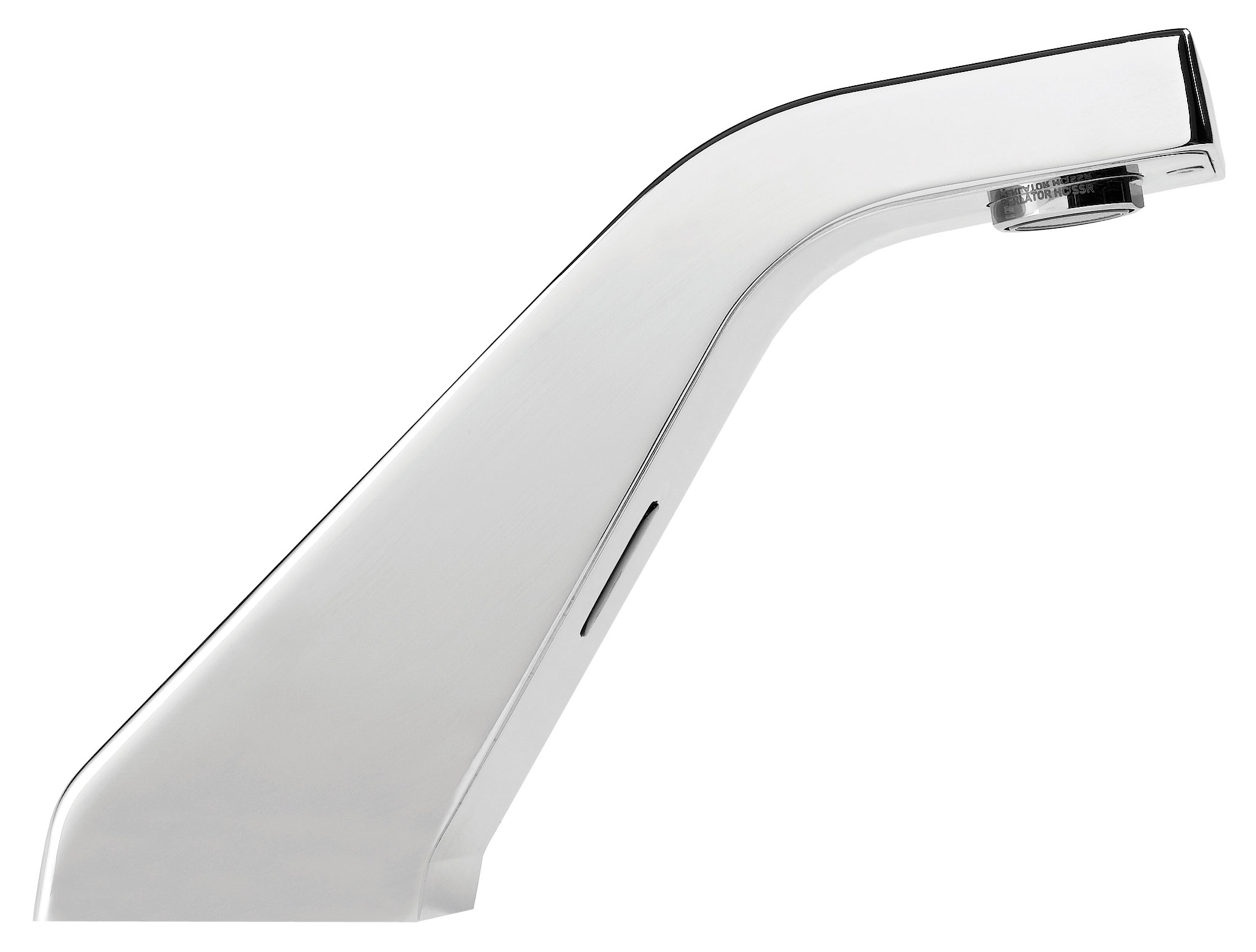

Sirocco Sensor Pre-Mixed touchless washbasin standing mixer

Download PDF file with card product

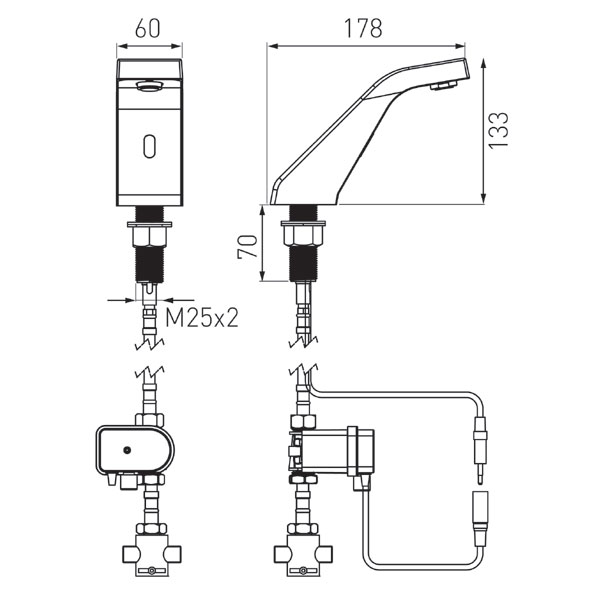

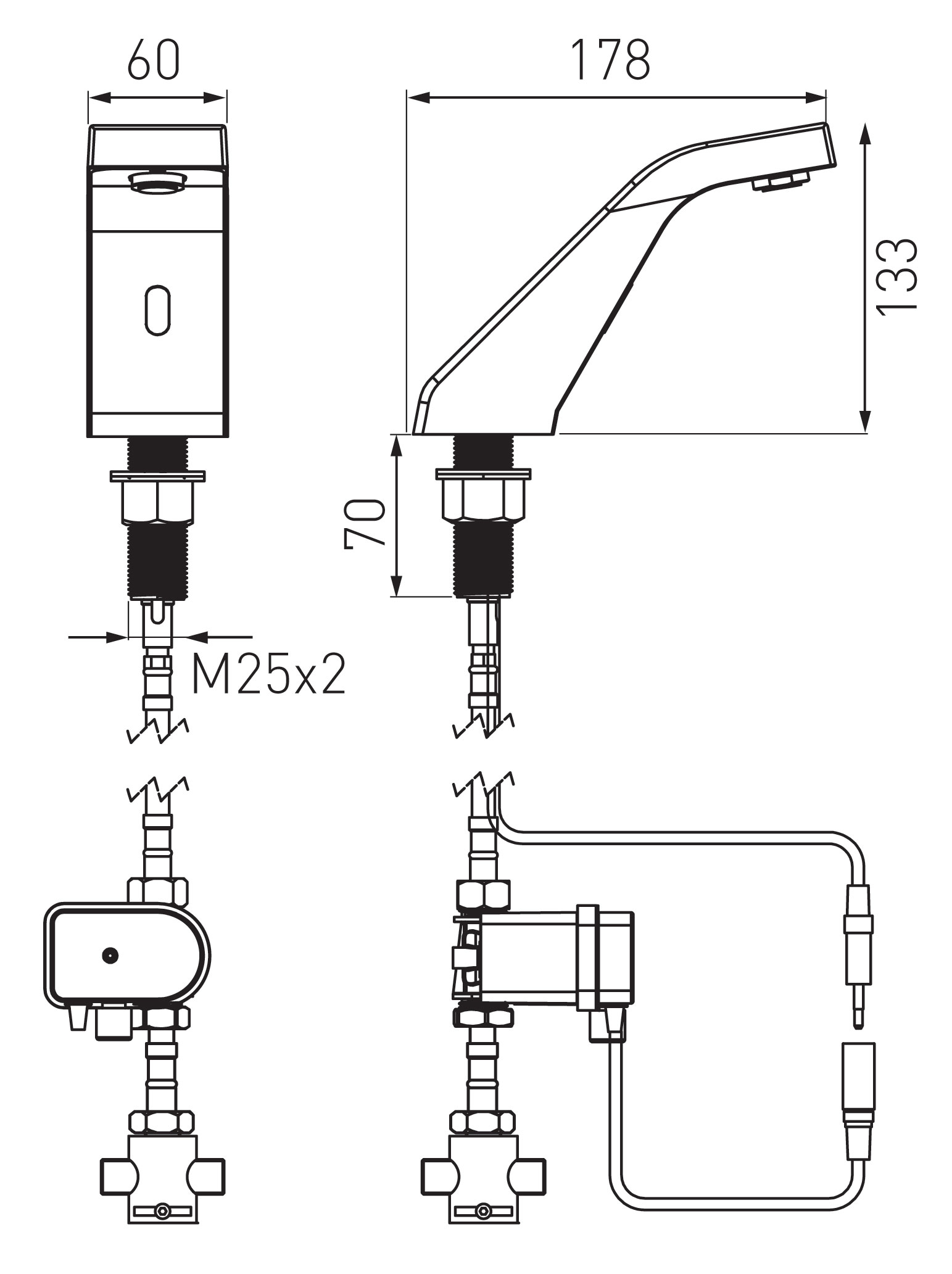

AutoCAD (DWG) file: BBB101M.dwg

3D Studio Max (3ds) file: BBB101M.3ds

• touchless
• power supply: 9V battery
• water inlet connetion: 2 x 3/8” GZ
• mixer: external, mechanical, flexible hose included 3/8” x 1/2”
• maximal working pressure: 0,5 bar - 8,0 bar (7-116 PSI)
• flow rate: ~5,0 l/min (for dynamic pressure 3 bar)
• aerator: M24x1 water jet direction, adjustable
• sensor range factory settings: 180 mm
• sensor range: adjustable in range 80 - 300 mm
• longlasting water flow protection: 90 sec.
• maximal water temperature: 70°C
• chrome finishing
• settings control: remote controller RC01
