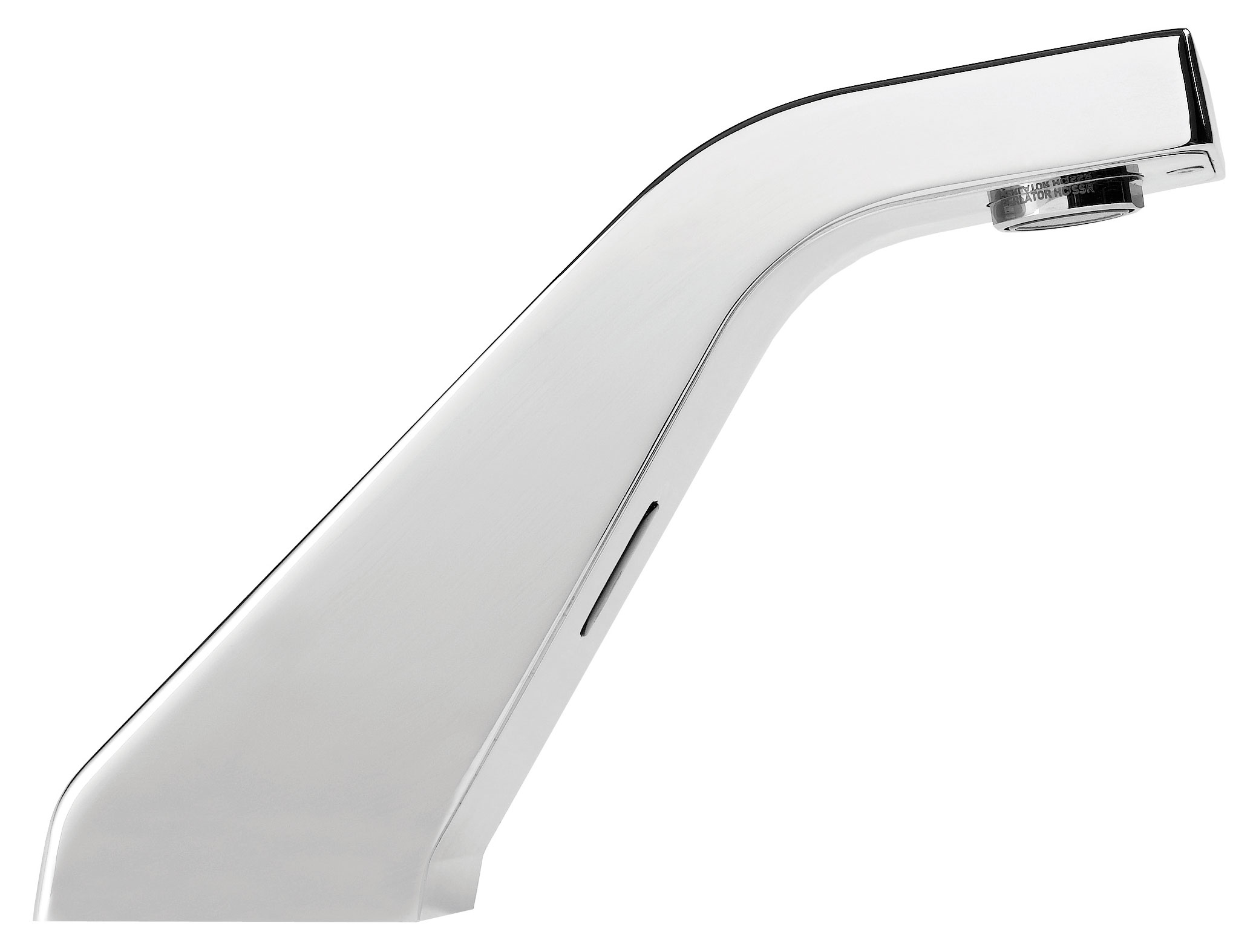

Sirocco Sensor touchless washbasin standing mixer

Code: BBB101

AutoCAD (DWG) file: BBB101.dwg

3D Studio Max (3ds) file: BBB101.3ds

touchless
for cold or mixed water
power supply: 9V battery
water inlet connection: 1 x 1/2” GZ
maximal working pressure: 0,5 bar - 8,0 bar (7-116 PSI)
flow rate: ~5,0 l/min (for dynamic pressure 3 bar)
aerator: M24x1 water jet direction, adjustable
sensor range factory settings: 180 mm
sensor range: adjustable in range 80 - 300 mm
longlasting water flow protection: 90 sec.
maximal water temperature: 70°C
chrome finishing
recommended mixers:
- MM10 - mechanical mixer 3/8”
- MT15B - thermostatic mixer 1/2”
settings control: remote controller RC01
