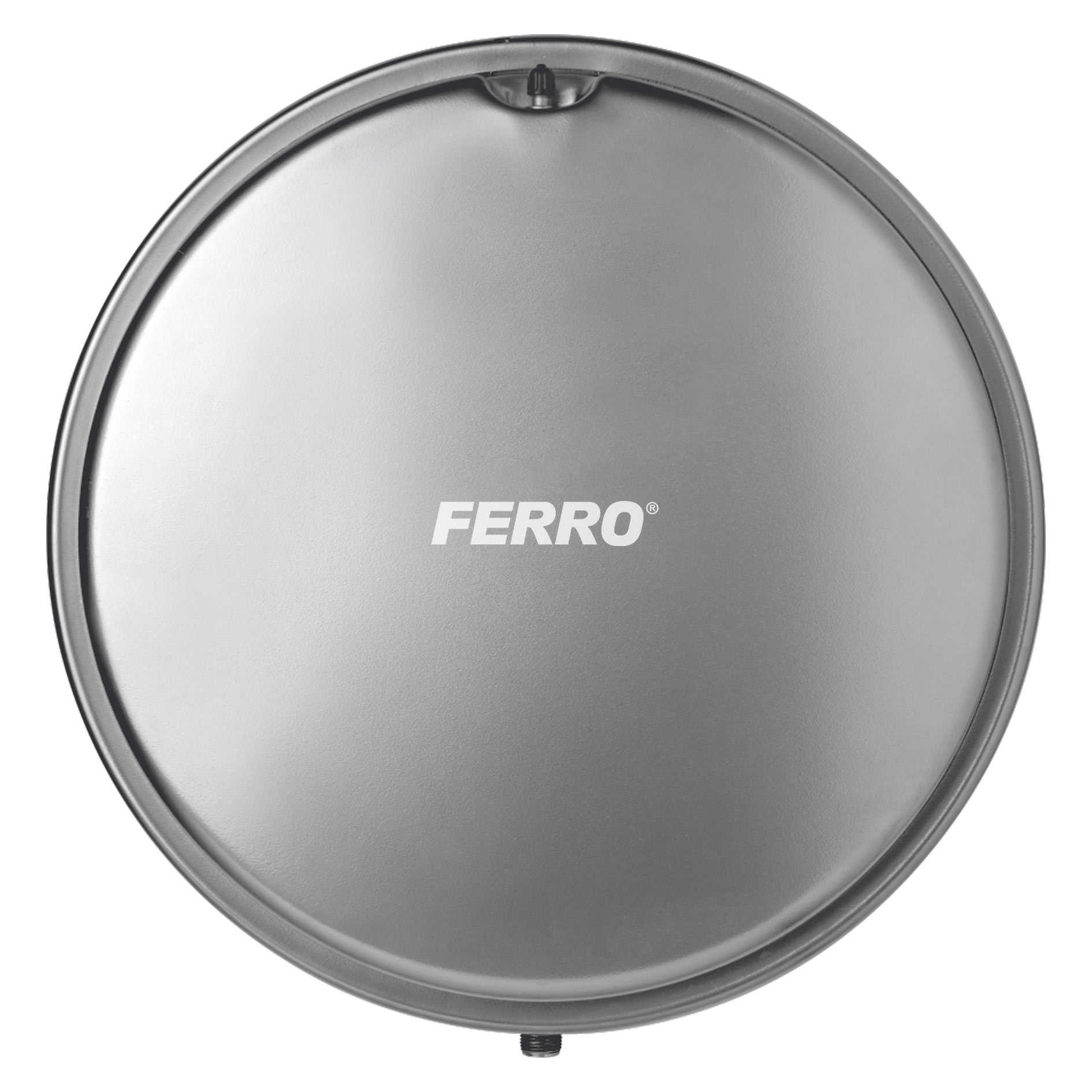

Flat vessels for heating systems

Flat vessels for heating systems

Flat vessels for heating systems

Code: CO

Individual packaging: 1
with a barcode for retail sale

Collective packaginig: -

Download PDF file with card product

warranty: 2 years
max. working pressure: 3 bar
precharge pressure: 1.5 bar
working temperature: from -10°C to + 90°C
membrane: SBR
colour: galvanized steel

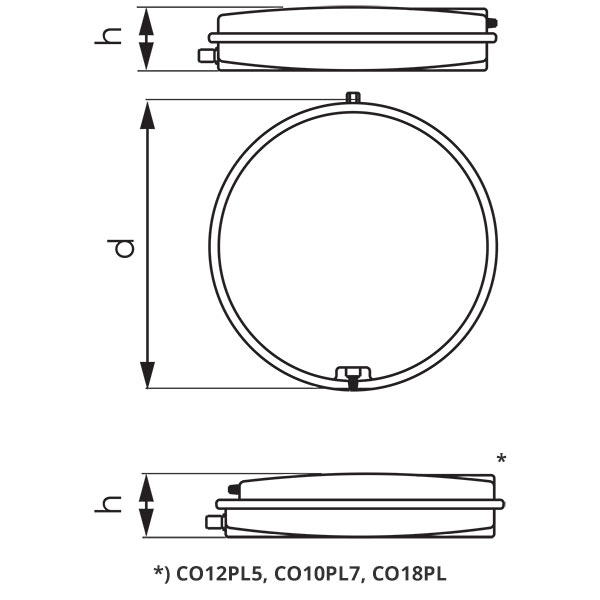

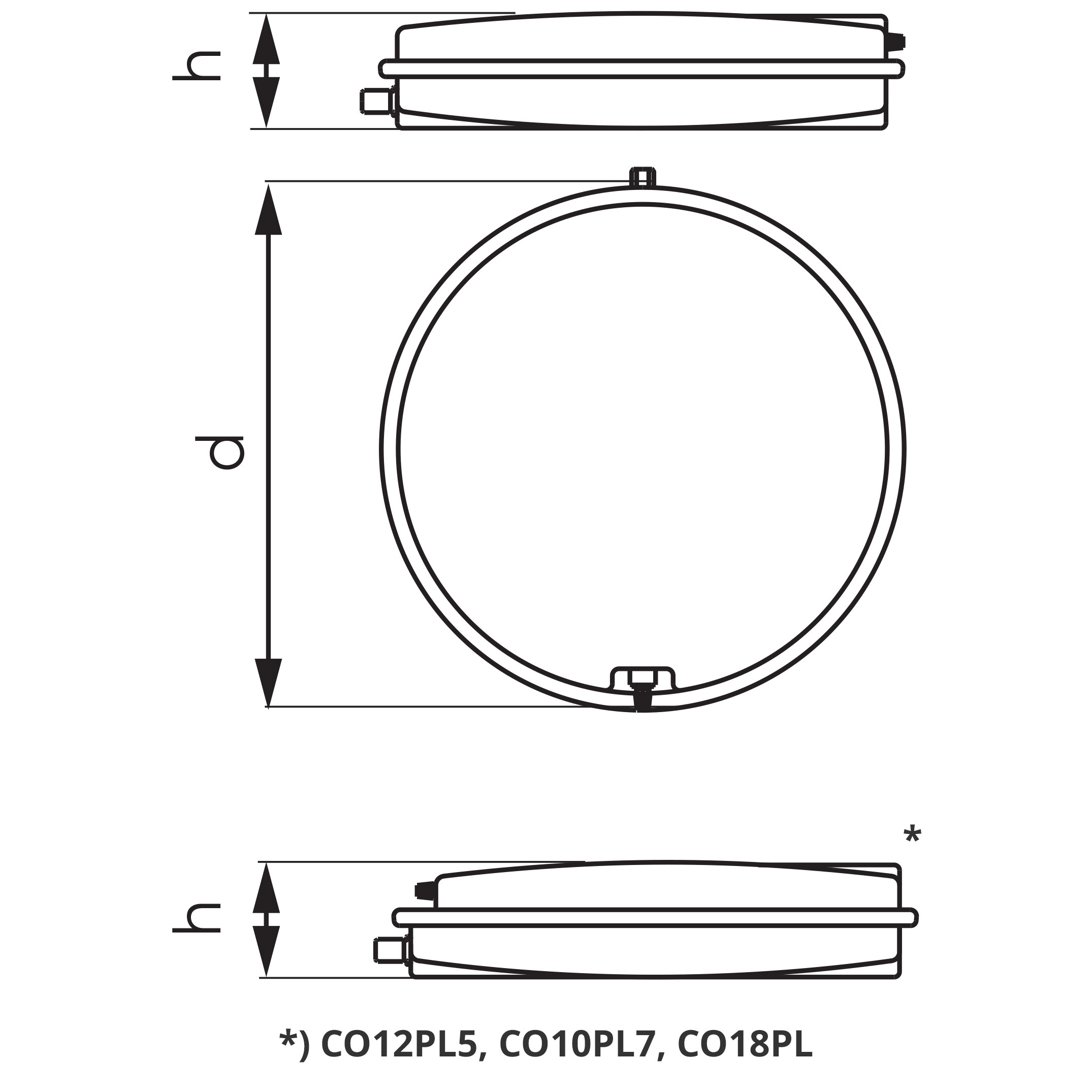

Code	Model	h [mm]	d [mm]	Connection	Volume [l]	Individ. pack.	Collect. pack.
CO6PL7	VCP387-6	60	387	3/8”	6	1	-
CO8PL7	VCP387-8	85	387	3/8”	8	1	-
CO10PL7	VCP387-10	100	387	3/4”	10	1	-
CO12PL7	VCP387-12	120	387	3/4”	12	1	-
CO18PL7	VCP387-18	180	387	3/4”	18	1	-
