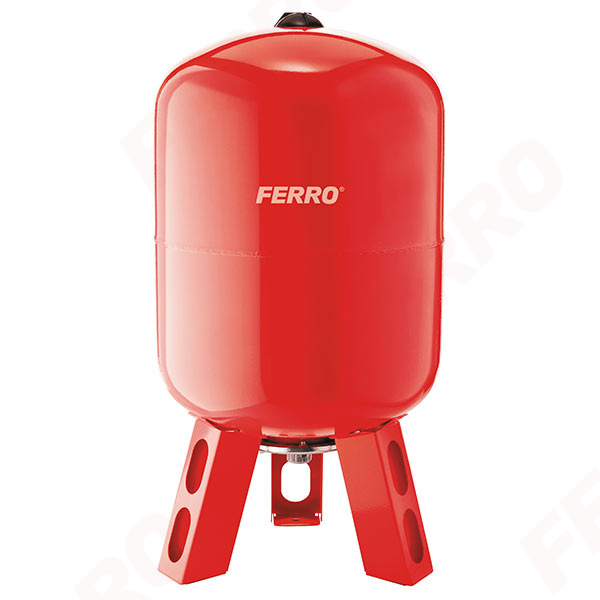

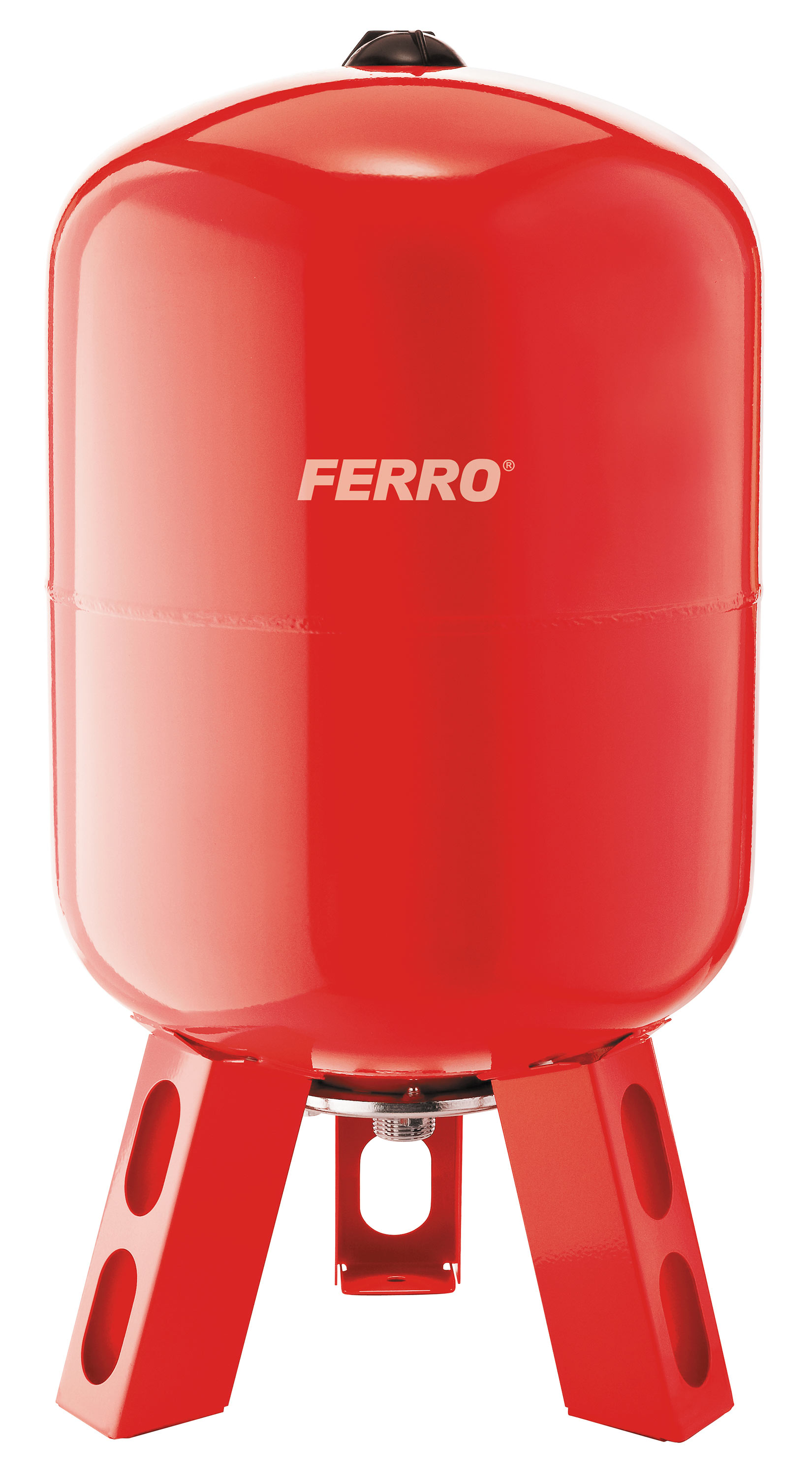

Vessels for heating system – standing

Vessels for heating system – standing

Vessels for heating system – standing

Code: CO

Individual packaging: 1
with a barcode for retail sale

Collective packaginig: -

Download PDF file with card product

warranty: 2 years
max. working pressure: 8 bar
precharge pressure: 1.5 bar
working temperature: from -10°C to +100°C
membrane (replaceable): EPDM
colour: RAL 3000

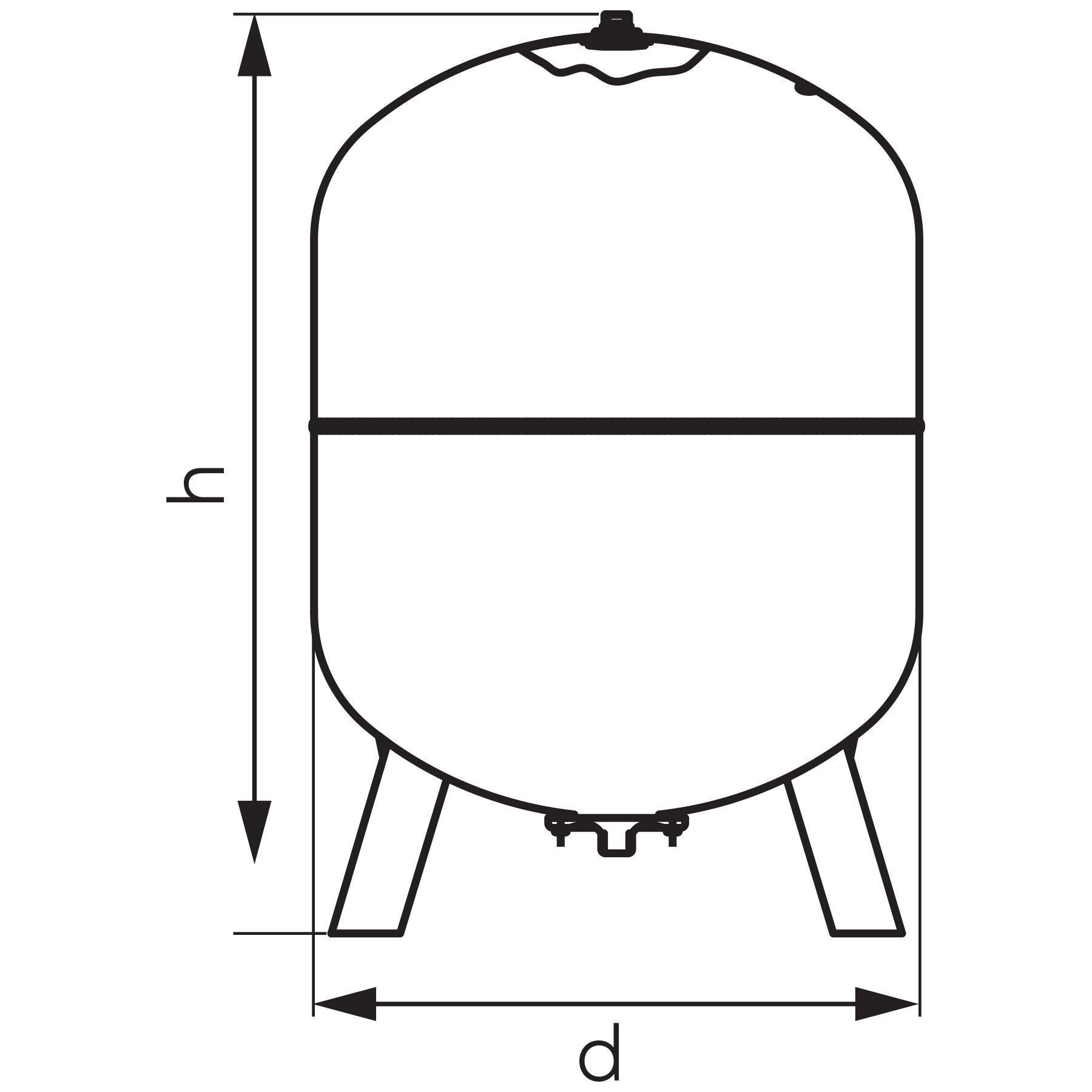

Code	Model	h [mm]	d [mm]	Connection	Volume [l]	Individ. pack.	Collect. pack.
CO200S	RV200	1081	600	1”	200	1	-
CO250S	RV250	1051	650	1”	250	1	-
CO300S	RV300	1212	650	1”	300	1	-
CO400S	RV400	1198	750	1 1/4”	400	1	-
CO500S	RV500	1438	750	1 1/4”	500	1	-
