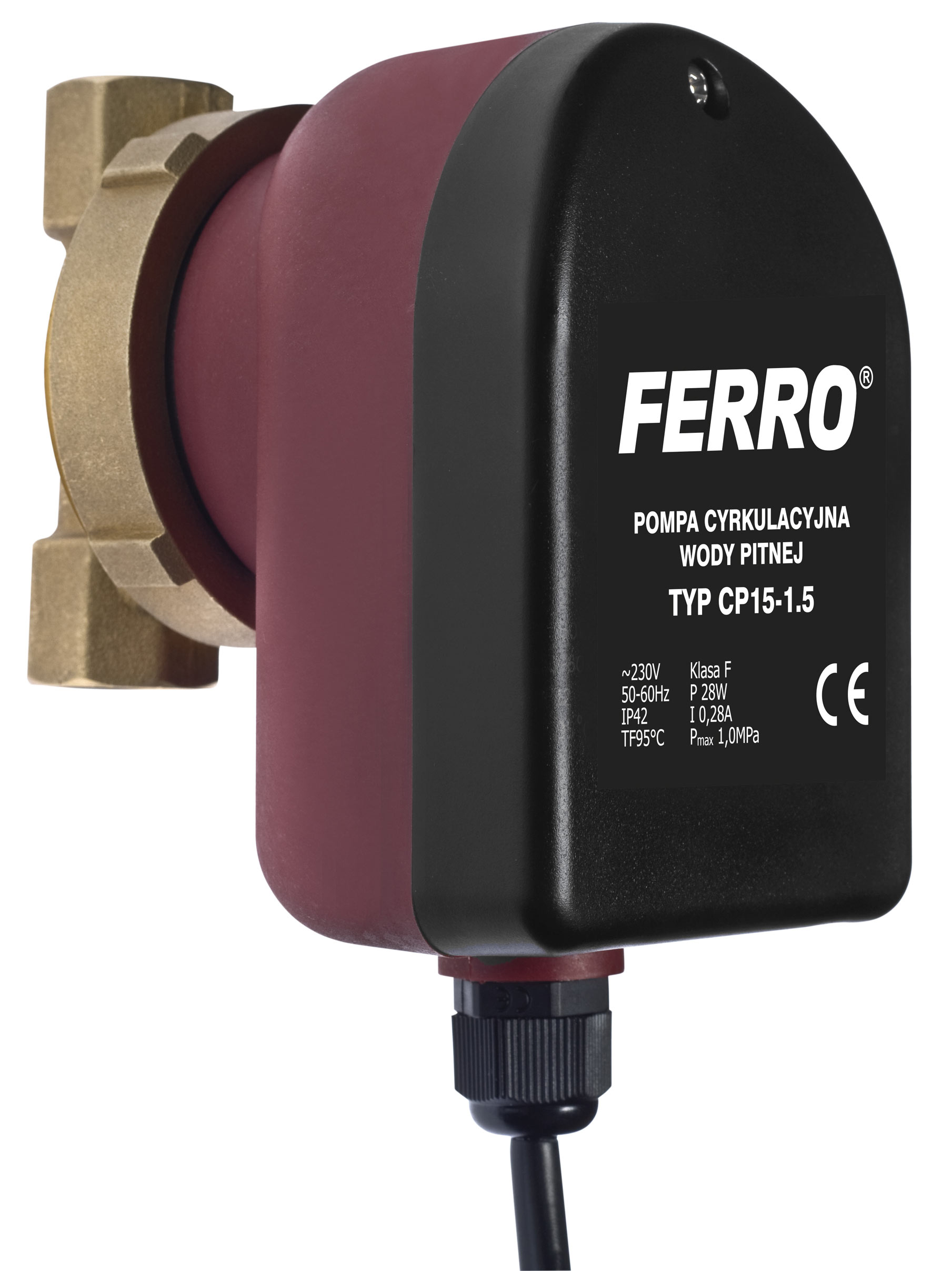

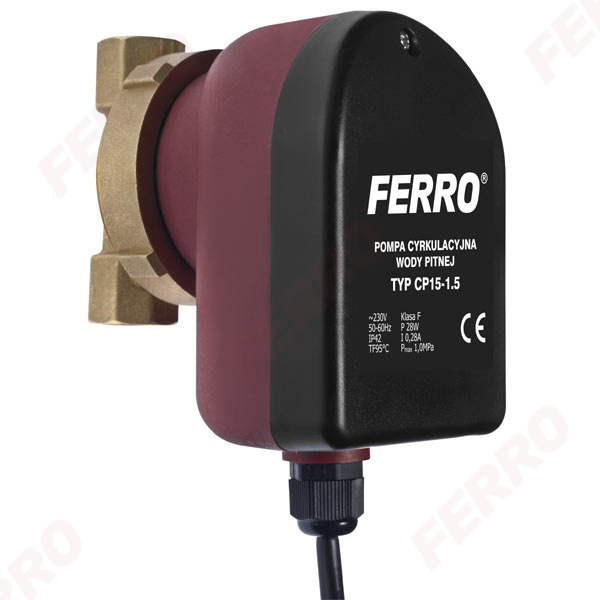

CP 15-1.5 Circulation pump for drinking water

CP 15-1.5 Circulation pump for drinking water

CP 15-1.5 Circulation pump for drinking water

CP 15-1.5 Circulation pump for drinking water

CP 15-1.5 Circulation pump for drinking water

Code: 0101W


Opakowanie jednostkowe Individual packaging: 1
with a barcode for retail sale

Collective packaginig: 24

Download PDF file with card product

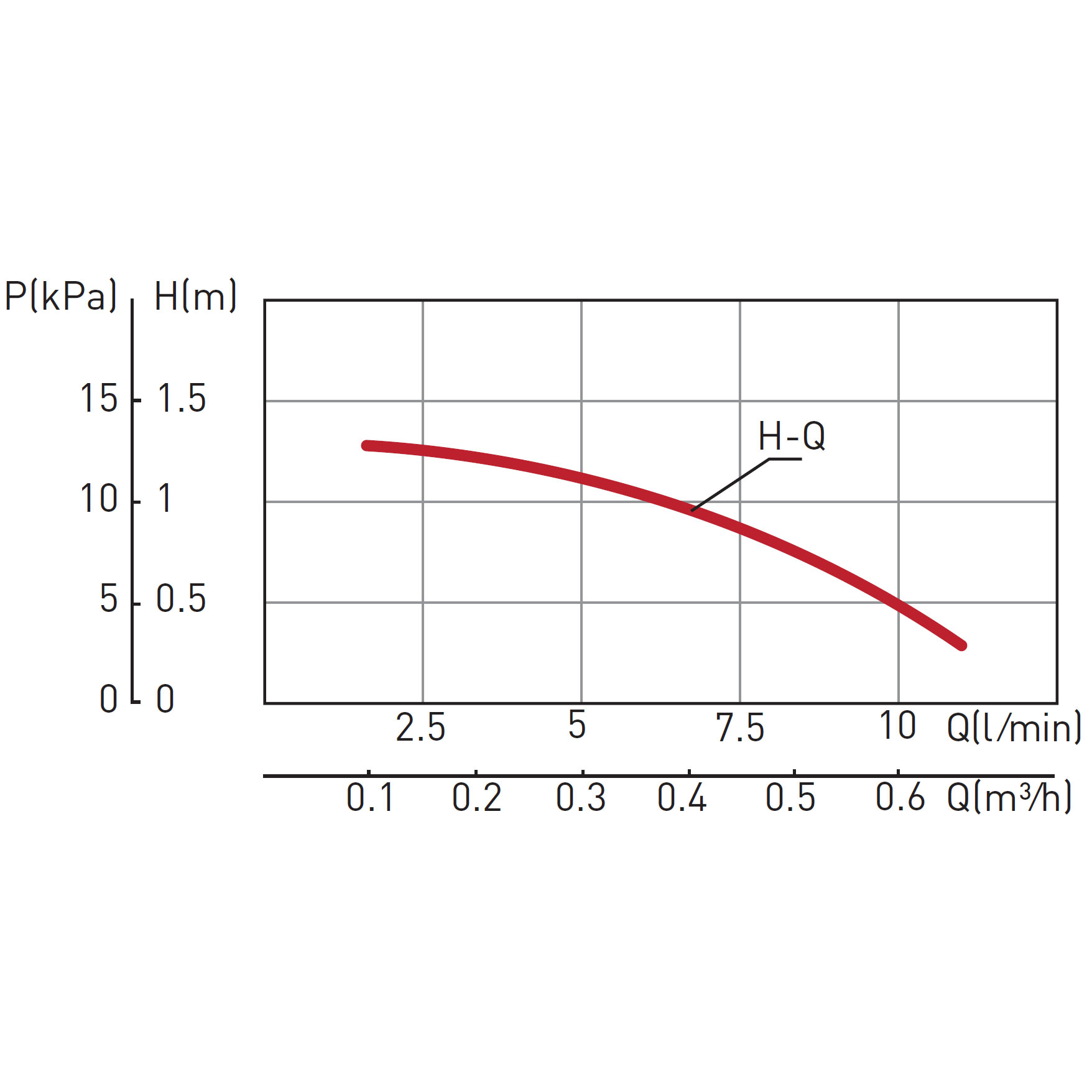

Operation range 0,1 - 0,7 m³/h
Lifting height max. 1,3 m
Liquid temperature min. +2°C, max. +95°C
Type of pumped liquids-drinking water This circulation pump is suitable for drinking water only
Maximum pressure 10 bar
IP Protection class IP 42
Insulation class F
Voltage 50-60 Hz, ~230V
Power consumption 28 W

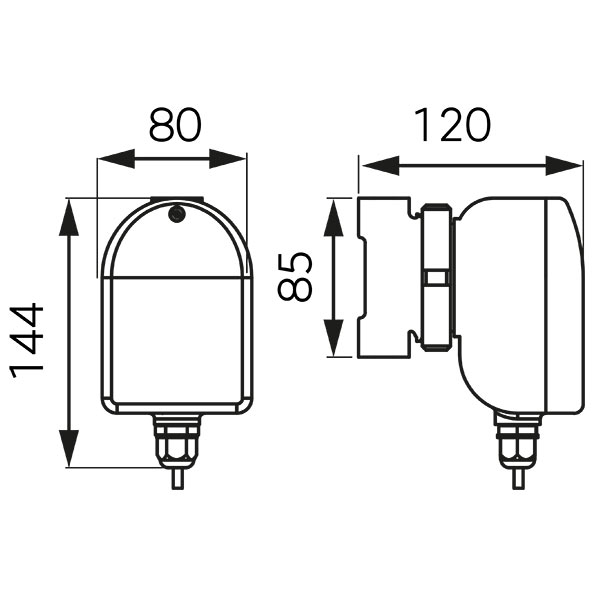

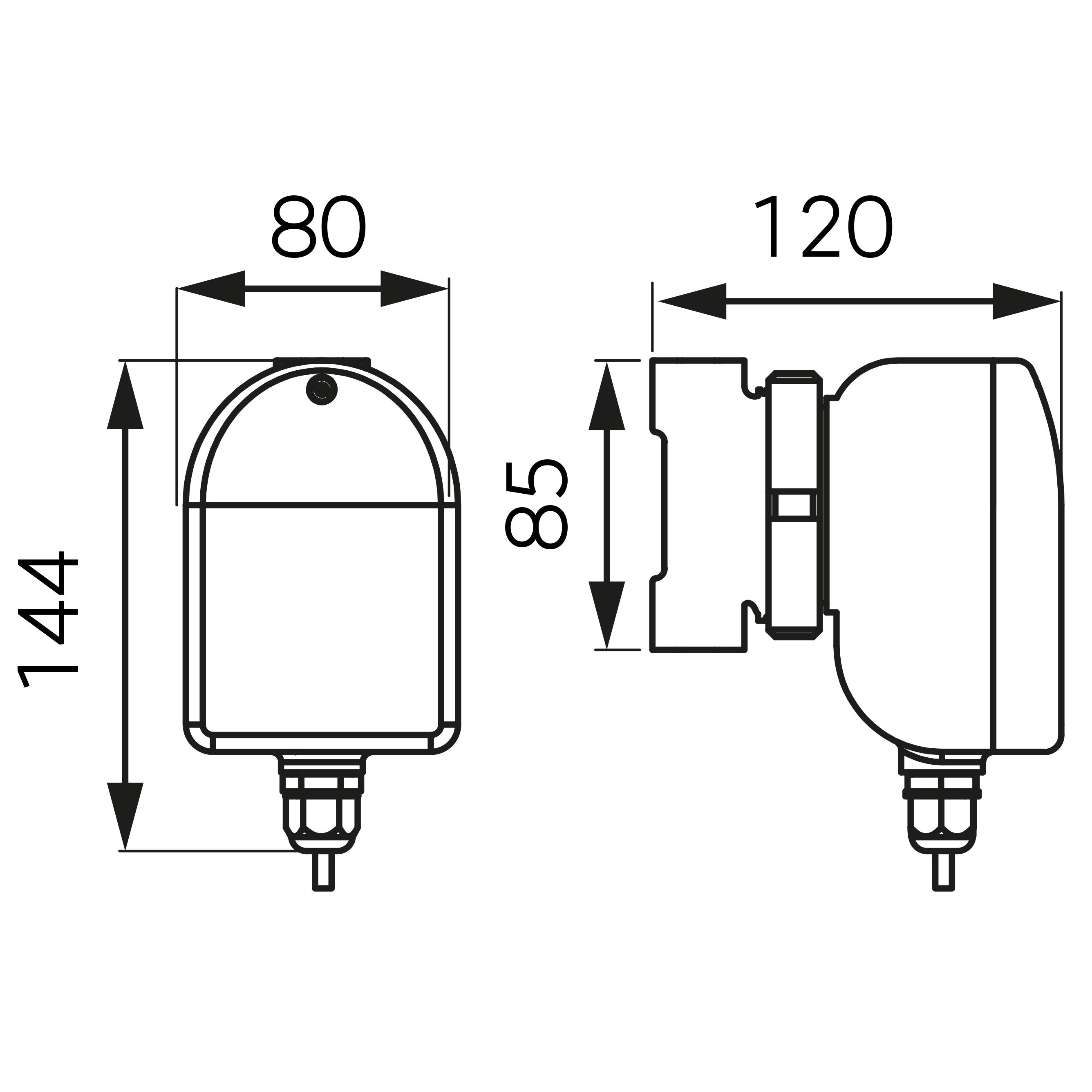

Connection spacing 85 mm
Connection G1/2
Ambient temperature min. +2°C, max. +40°C
