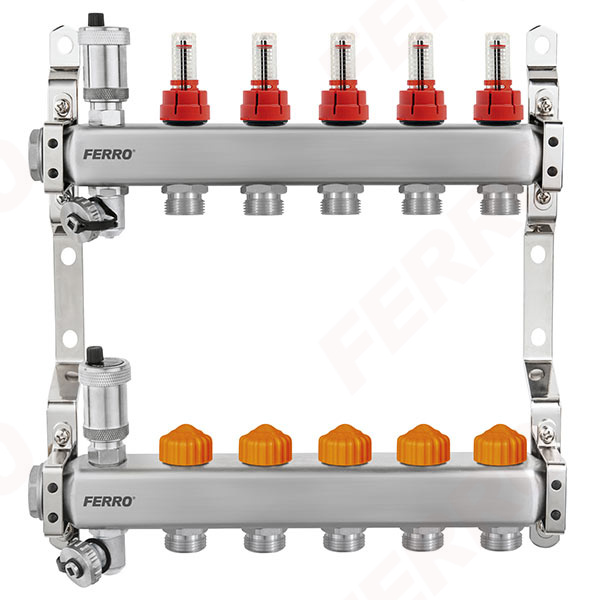

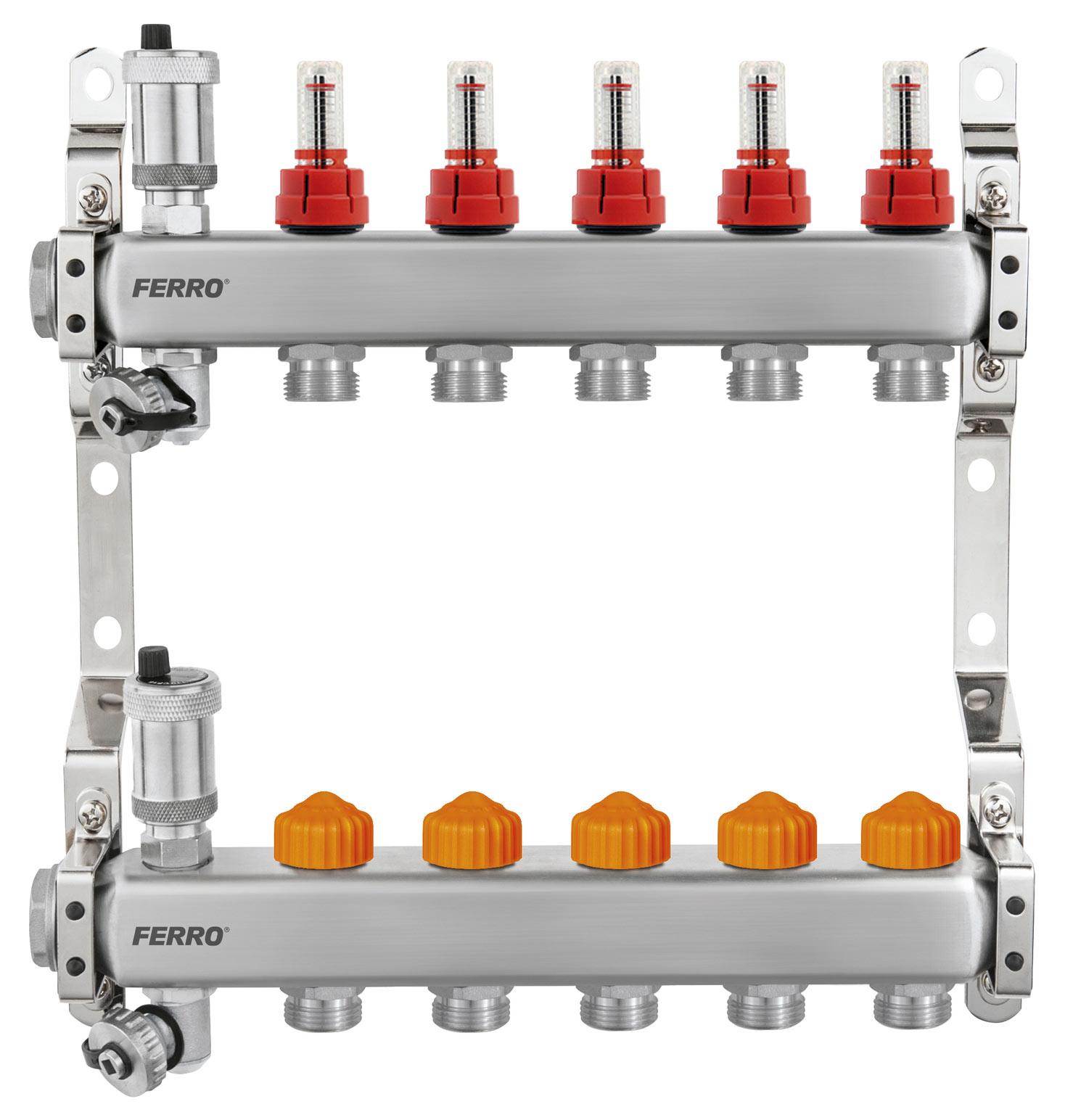

Stainless steel manifold F-PRO with automatic flow control

Individual packaging: 1

With a barcode for retail sale

Download PDF file with card product

• Bar length [mm]: 585
• Bar size: 1" F-M
• Body material/assembly material: AISI 304 stainless steel
• Drain valve type: swivel G1/2xG3/4
• Media:
  • water
  • 50% glycol
• Nipple type: G3/4
• No. of drain valves: 2
• Type of valve on return bar: automatic flow limiter
• Type of valves on supply bar: balancing and measuring valves (flow meters)
• Type of vent valve: automatic
• Unit packaging method: box
• Warranty: 15 years

• Bar length [mm]: 585
• Bar size: 1" F-M
• Body material/assembly material: AISI 304 stainless steel
• Drain valve type: swivel G1/2xG3/4
• Media:
  • water
  • 50% glycol
• Nipple type: G3/4
• No. of drain valves: 2
• Type of valve on return bar: automatic flow limiter
• Type of valves on supply bar: balancing and measuring valves (flow meters)
• Type of vent valve: automatic
• Unit packaging method: box
