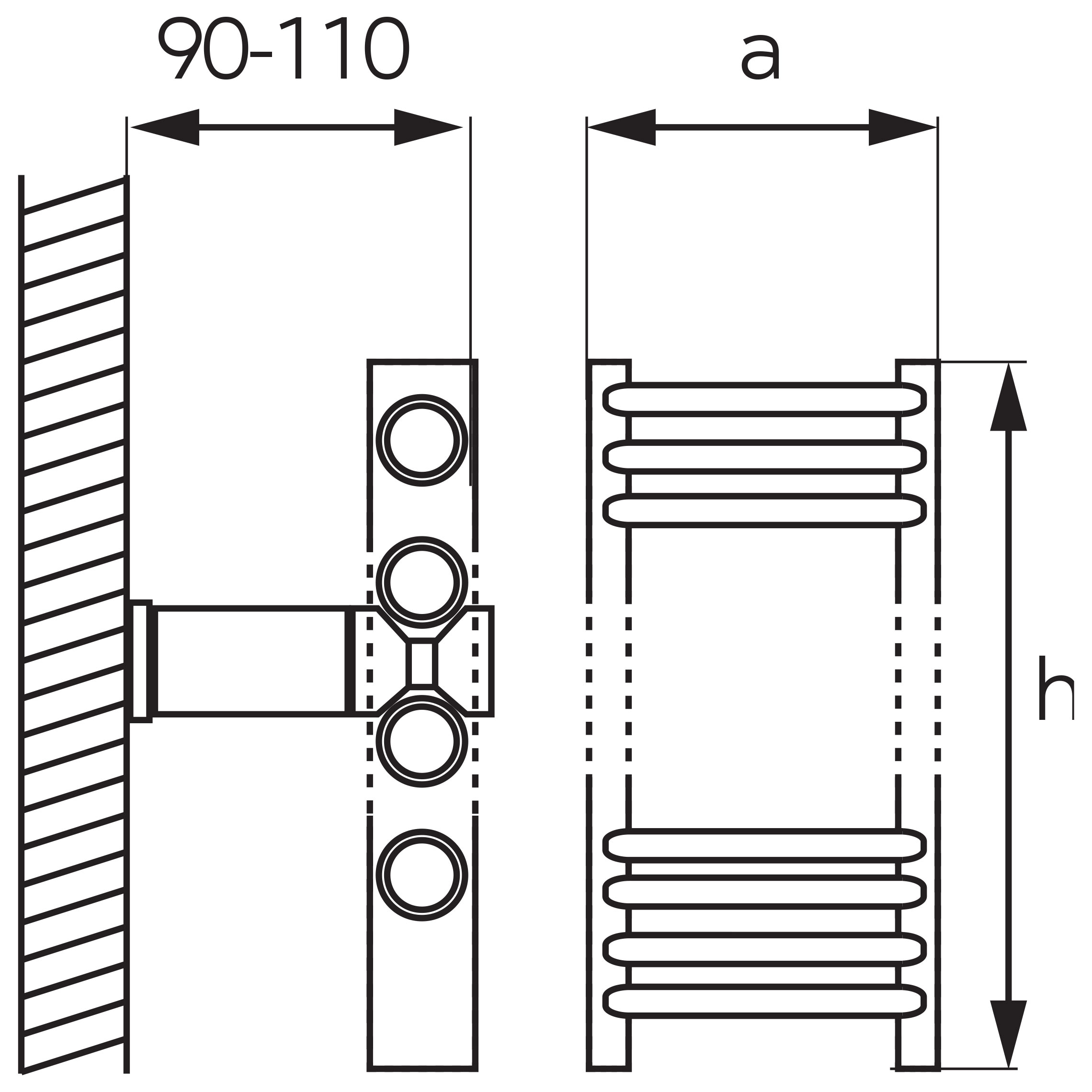

| Index | a [mm] | h [mm] | Connection spacing | Installation parameters [°C] | Power [W] | Dedicated heater power | Pipe arrangement |
| 450/900/R,1 | 450 | 900 | 406 | 90/70/20 | 455 | 300 | 4+5+8 |
| 75/65/20 | 363 | ||||||
| 65/55/20 | 276 | ||||||
| 55/45/20 | 193 | ||||||
| 450/1200/R,1 | 450 | 1200 | 406 | 90/70/20 | 604 | 300 | 4+5+15 |
| 75/65/20 | 482 | ||||||
| 65/55/20 | 365 | ||||||
| 55/45/20 | 255 | ||||||
| 600/900/R,1 | 600 | 900 | 555 | 90/70/20 | 574 | 300 | 4+5+8 |
| 75/65/20 | 458 | ||||||
| 65/55/20 | 347 | ||||||
| 55/45/20 | 243 | ||||||
| 600/1200/R,1 | 600 | 1200 | 555 | 90/70/20 | 761 | 300 | 4+5+15 |
| 75/65/20 | 607 | ||||||
| 65/55/20 | 460 | ||||||
| 55/45/20 | 321 | ||||||
| 600/1600/R,1 | 600 | 1600 | 555 | 90/70/20 | 1 033 | 600 | 4+5+6+7+8 |
| 75/65/20 | 823 | ||||||
| 65/55/20 | 622 | ||||||
| 55/45/20 | 434 |
Individual packaging:
1
