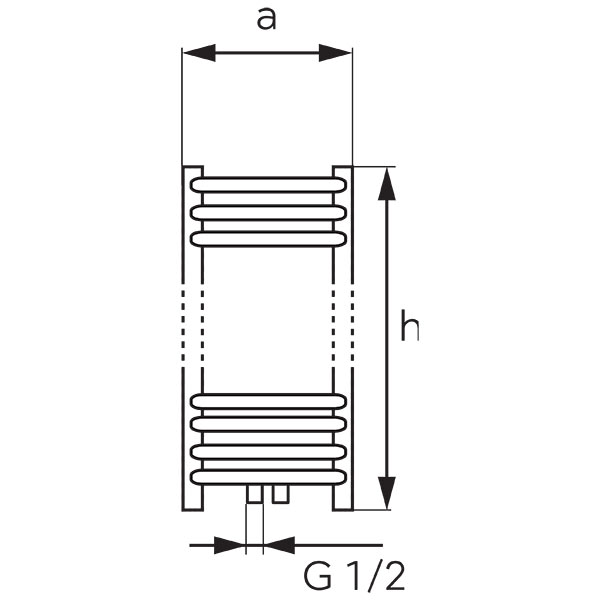

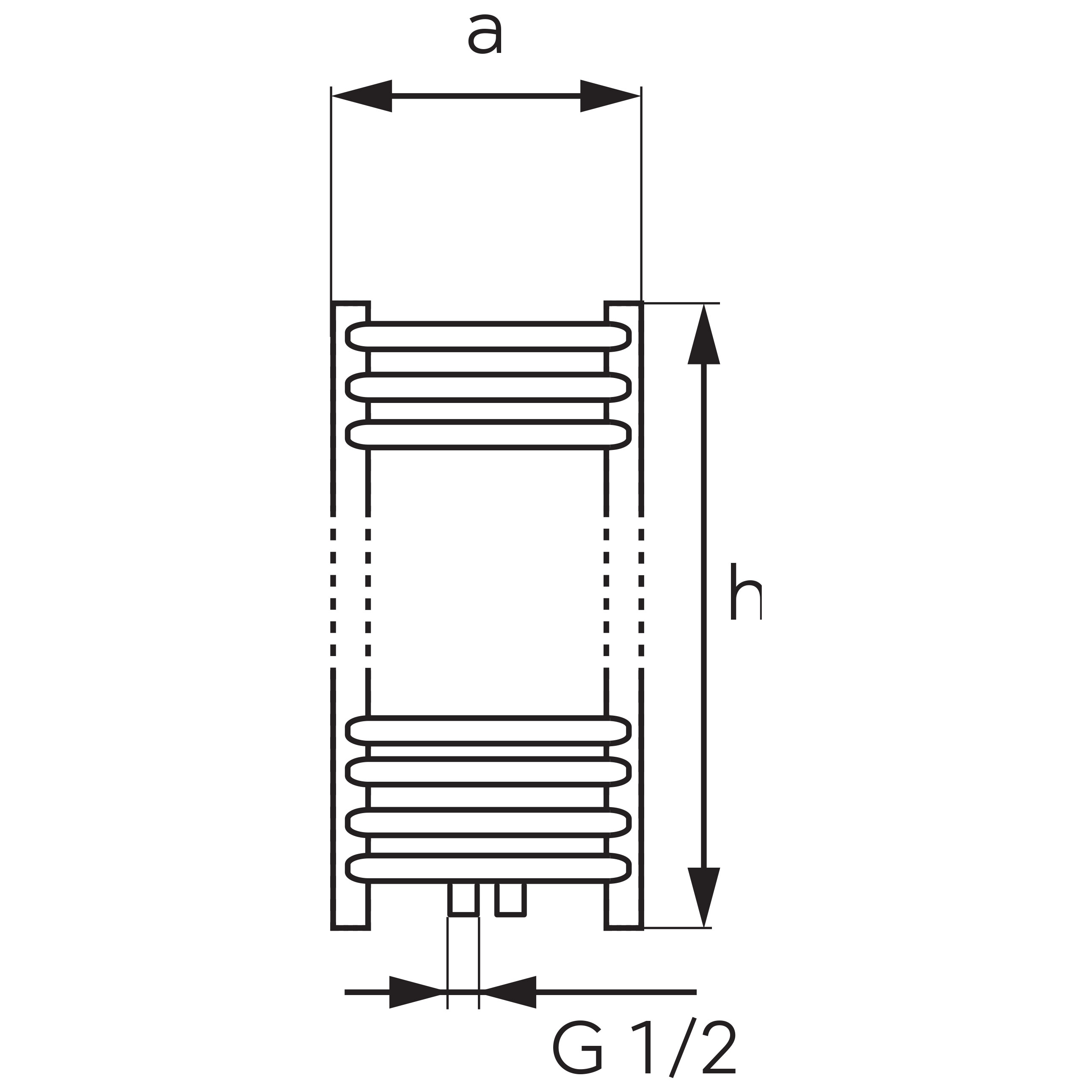

Index | a [mm] | h [mm] | Connection spacing | Installation parameters [°C] | Power [W] | Dedicated heater power | Pipe arrangement |
450/1200/RS,5 | 450 | 1200 | 50 | 90/70 | 604 | 300 | 4+5+15 |
75/65 | 482 | ||||||
65/55 | 365 | ||||||
55/45 | 255 | ||||||
450/1600/RS,5 | 450 | 1600 | 50 | 90/70 | 820 | 300 | 4+5+6+7+8 |
75/65 | 653 | ||||||
65/55 | 494 | ||||||
55/45 | 345 | ||||||
600/1200/RS,5 | 600 | 1200 | 50 | 90/70 | 761 | 300 | 4+5+15 |
75/65 | 607 | ||||||
65/55 | 460 | ||||||
55/45 | 321 | ||||||
600/1600/RS,5 | 600 | 1600 | 50 | 90/70 | 1033 | 400 | 4+5+6+7+8 |
75/65 | 823 | ||||||
65/55 | 622 | ||||||
55/45 | 434 | ||||||
600/1800/RS,5 | 600 | 1800 | 50 | 90/70 | 1176 | 400 | 4+5+6+7+13 |
75/65 | 939 | ||||||
65/55 | 710 | ||||||
55/45 | 497 |
