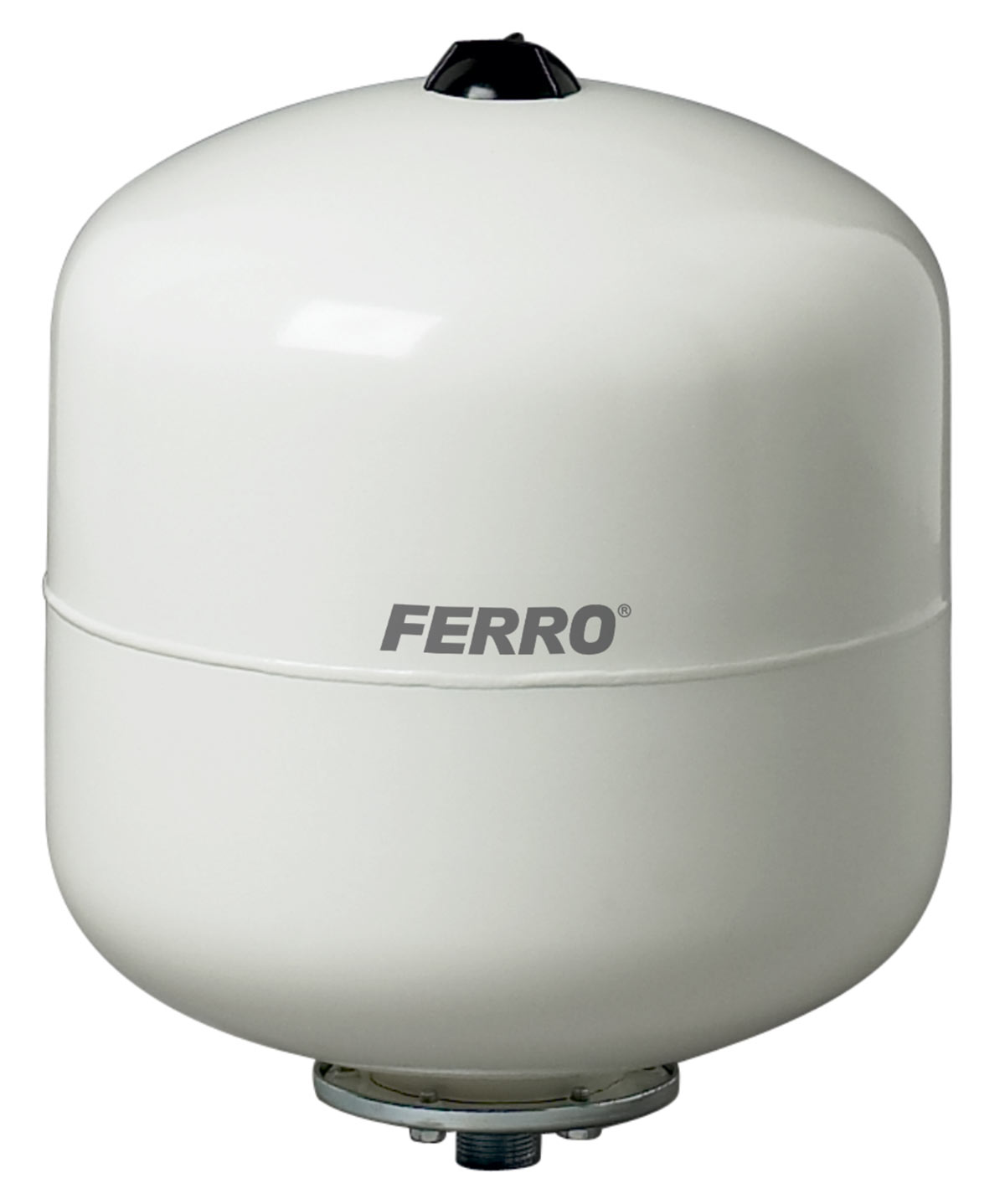

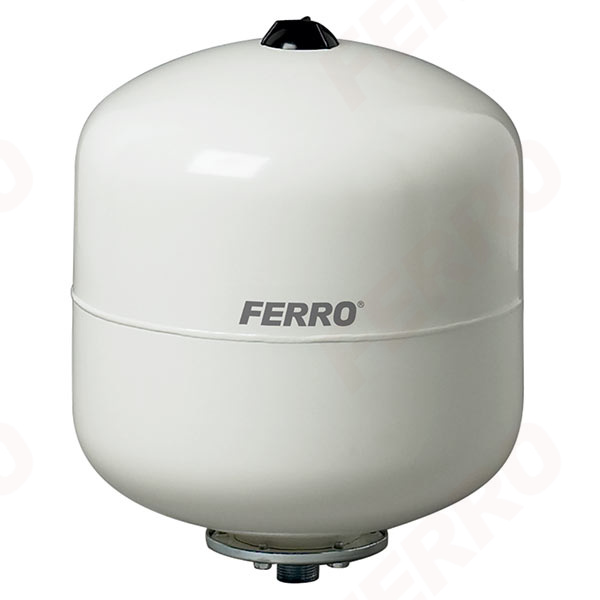

Expansion universal vessel - hanging

Expansion universal vessel - hanging

New!

Expansion universal vessel - hanging

Expansion universal vessel - hanging

Expansion universal vessel - hanging

Index: UNIxW


Opakowanie jednostkowe Individual packaging: 1

With a barcode for retail sale

Bulk packaginig: -

Download PDF file with card product


  • max. working pressure: 10 bar
  • precharge pressure: 3.5 bar
  • working temperature: from -10°C to +100°C
  • membrane (replaceable): butyl
  • flange material: AISI 304 stainless steel
  • colour: RAL 9010
  • media valves: water, glycol up to 40%

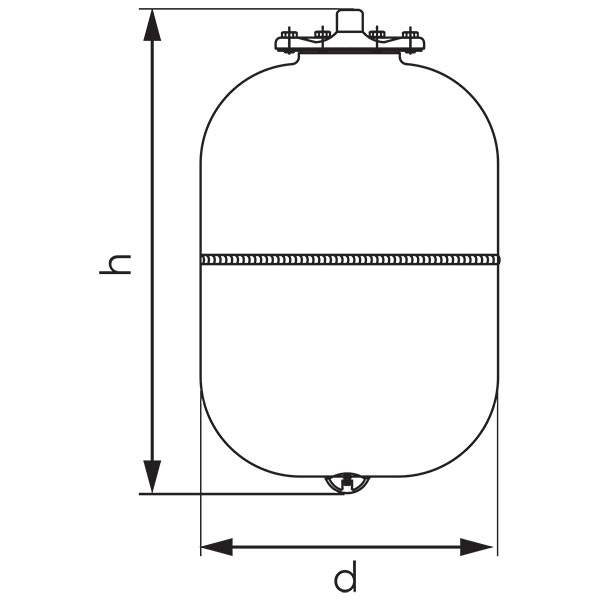

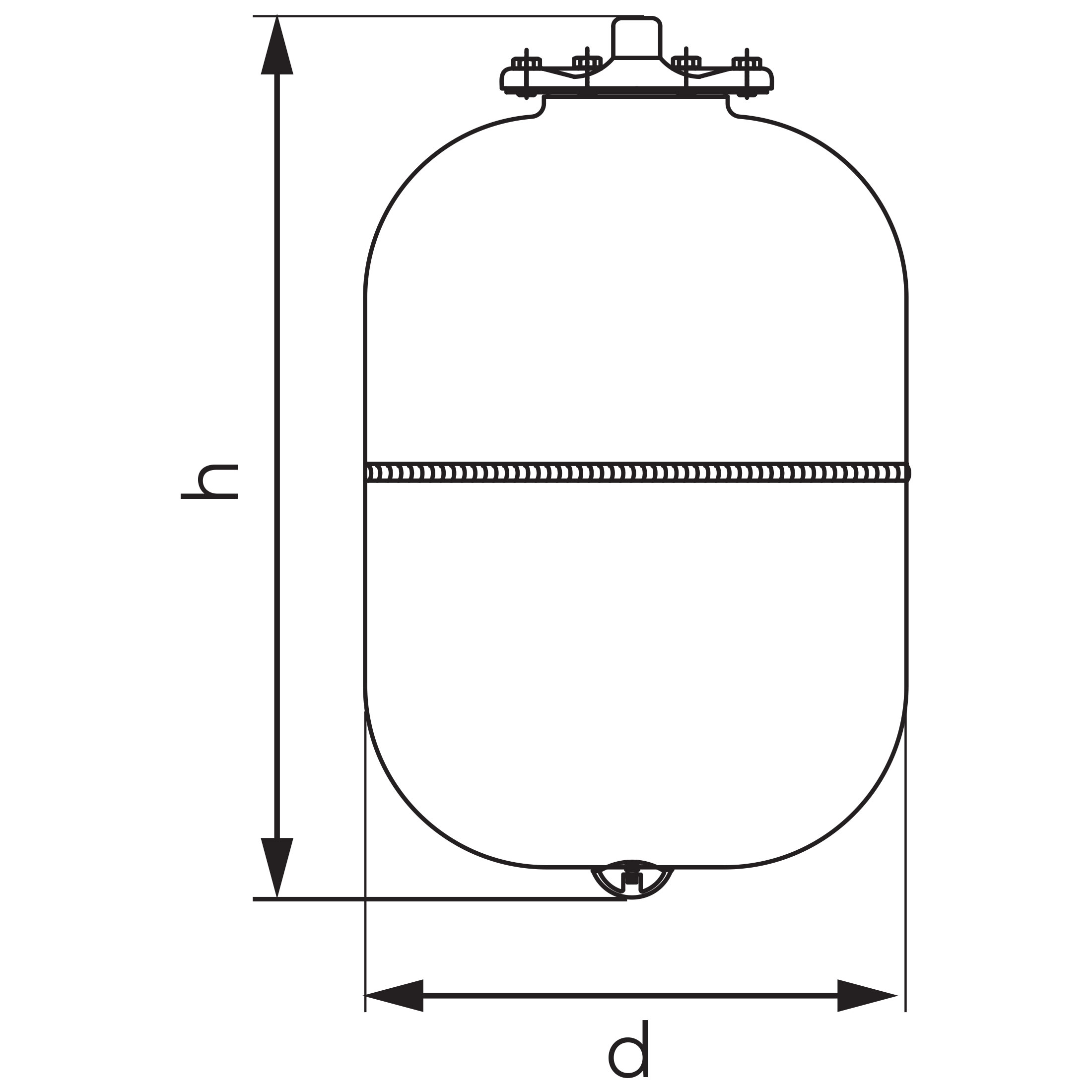

Index Model h [mm] d [mm] Connection Volume [l] Individ. pack. Bulk pack.
UNI5W M5+ 300 160 3/4” 5 1 -
UNI8W M8+ 316 200 3/4” 8 1 -
UNI12W M12+ 295 280 3/4” 12 1 -
UNI18W M18+ 430 280 3/4” 18 1 -
UNI24W M24+ 483 280 3/4” 24 1 -
UNI35W M35+ 440 365 1” 35 1 -
