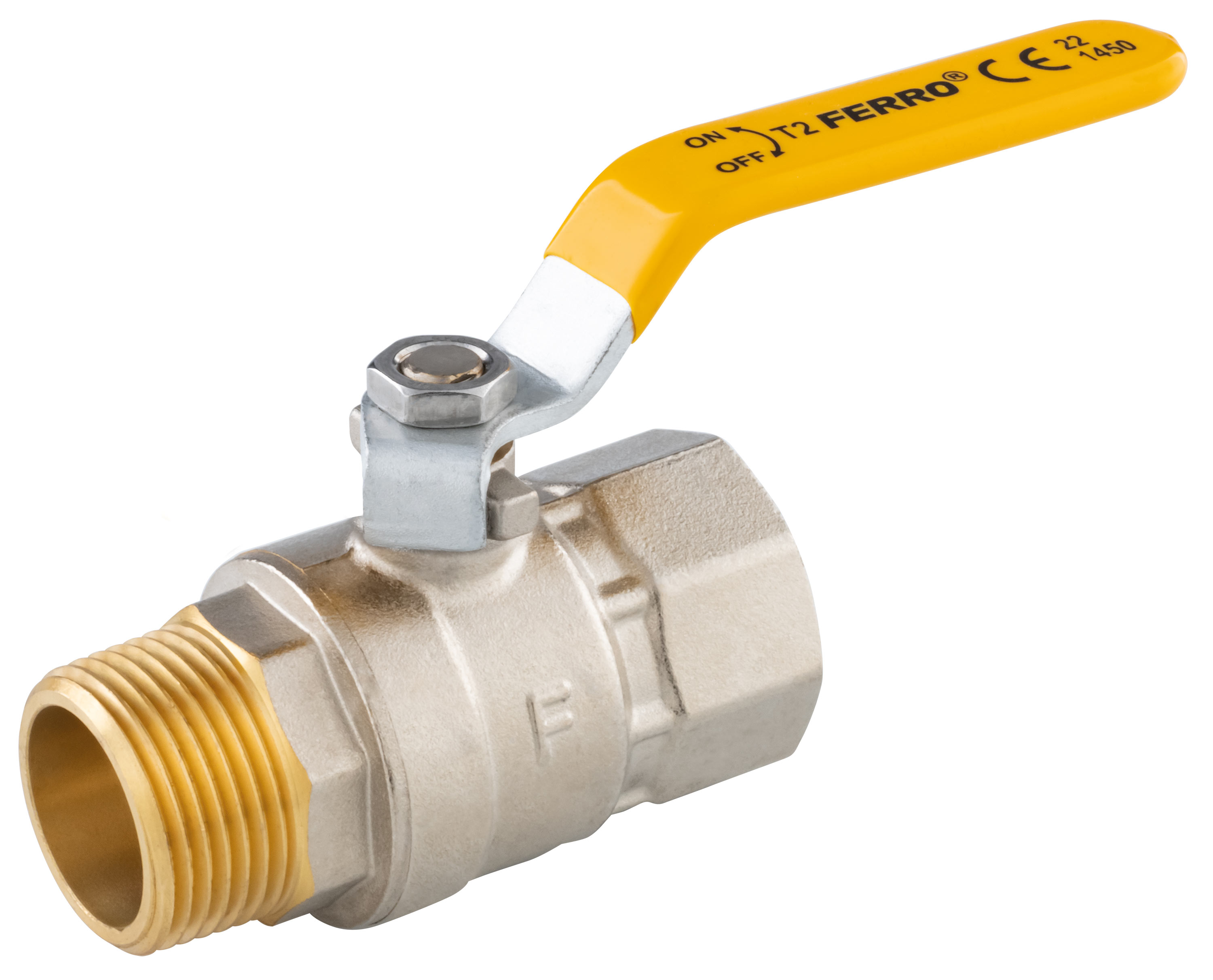

Gas ball valve - type G18

New!

Gas ball valve - type G18

Gas ball valve - type G18

Index: KGSx1

Download PDF file with card product

female-male
with gland
handle: metal lever
body and ball material: high quality brass CW617N
ball sealing: PTFE
stem sealing: PTFE and O-ring with NBR70
max. working pressure: MOP5 (0.5 MPa)
working temperature: T2 (-20°C to 60°C)

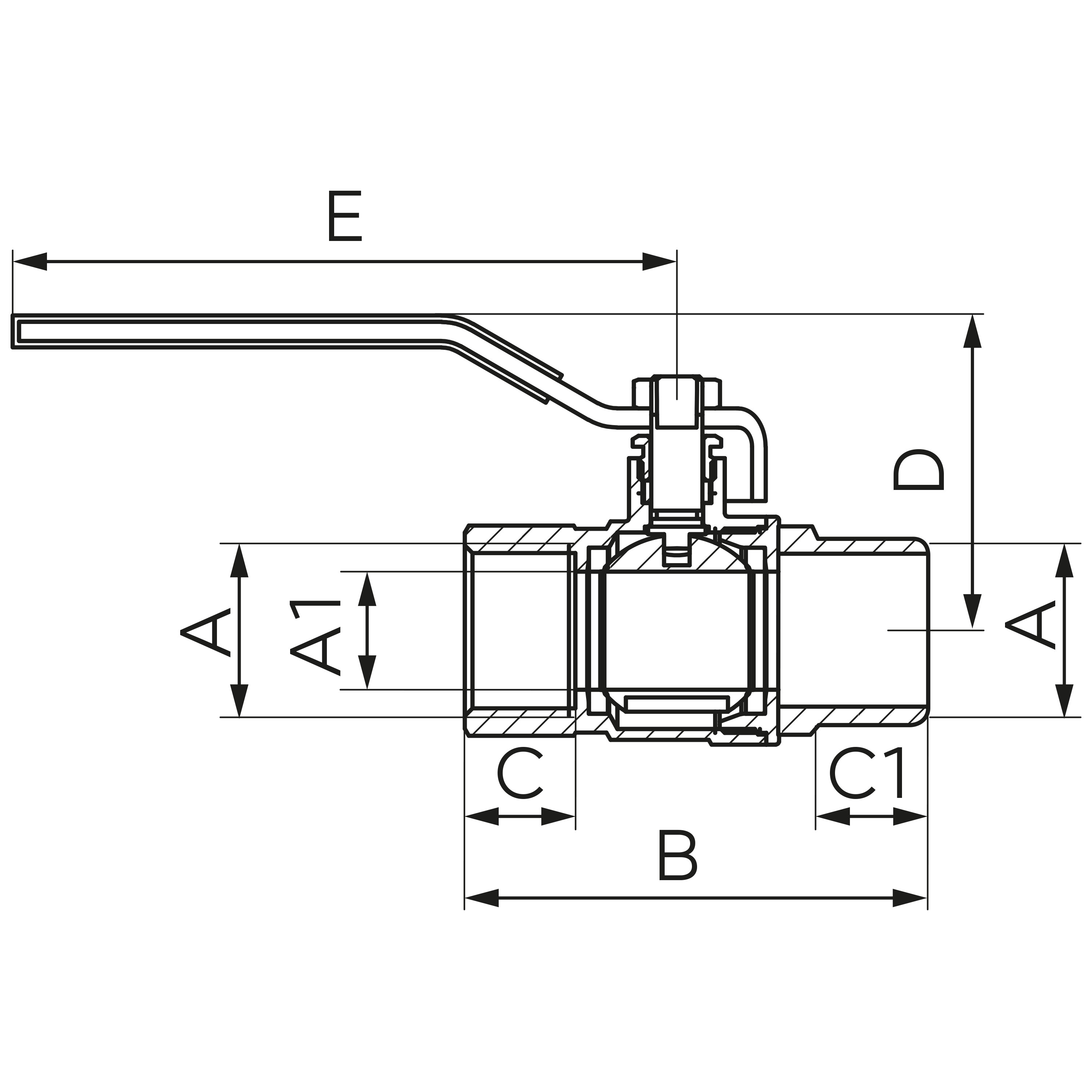

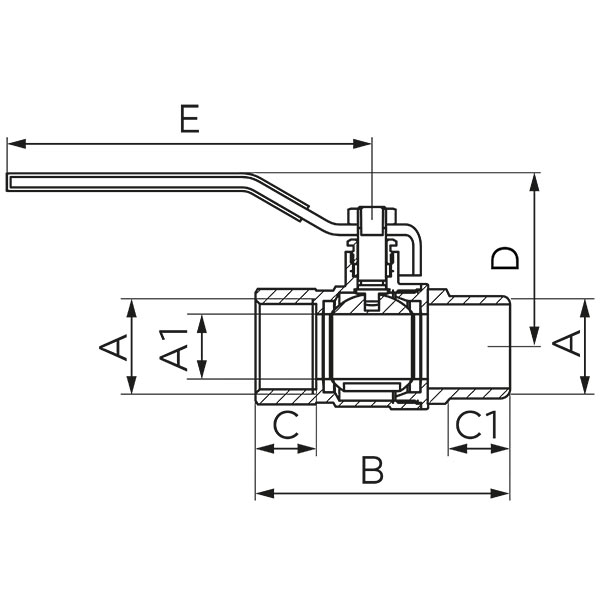

Index	DN	A	A1 [mm]	B [mm]	C/C1 [mm]	D [mm]	E [mm]	Individ. pack.	Bulk pack.
KGS11	15	Rp1/2-R1/2	14	63.2±1	min. 15/12.5	47.8±1	82±1	10	80
KGS21	20	Rp3/4-R3/4	18,5	71.7±1	min. 16.3/14	49.4±1	104±1	9	81
KGS31	25	Rp1-R1	23	83.8±1	min. 19.1/16	57.3±1	104±1	9	54
