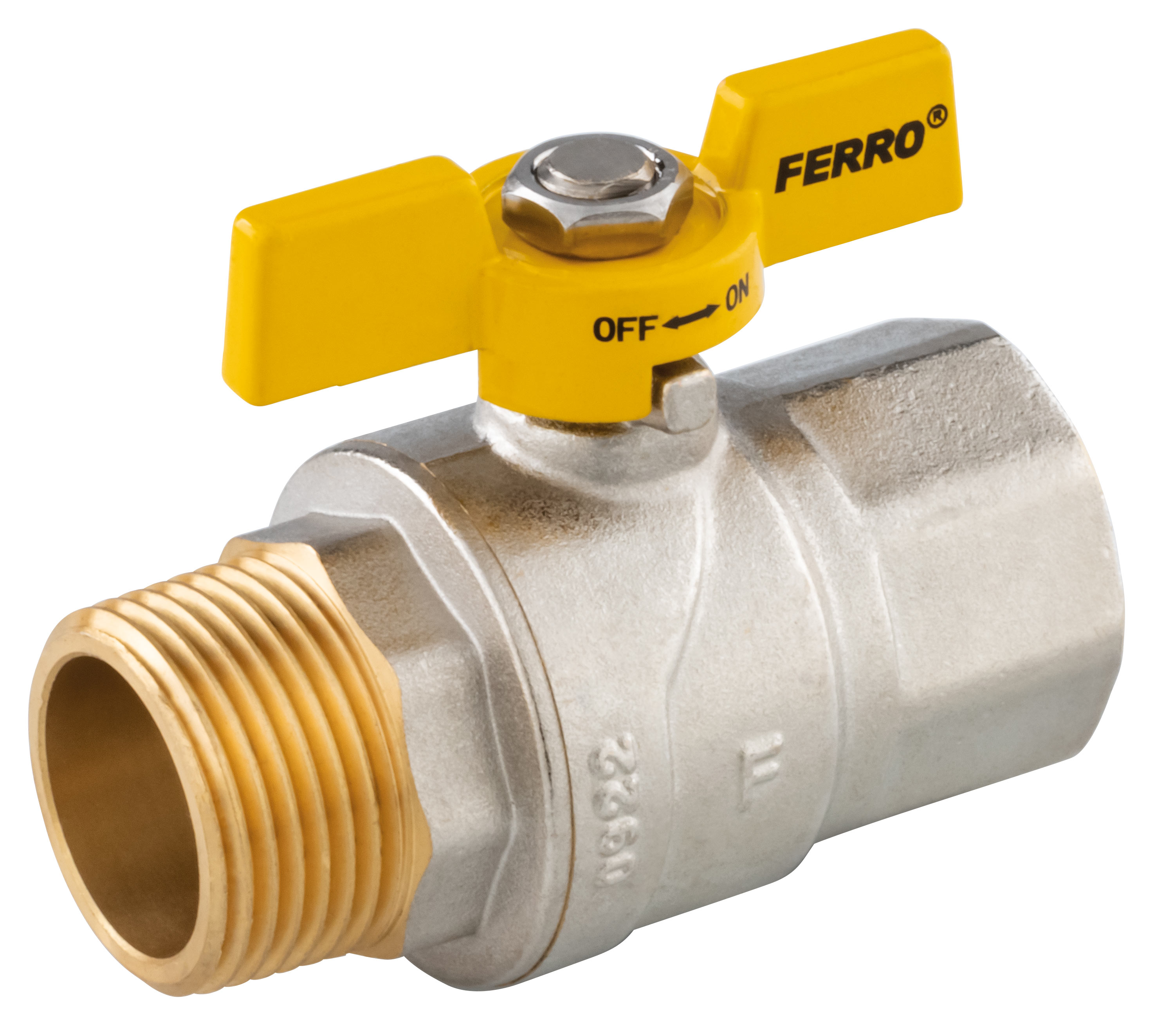

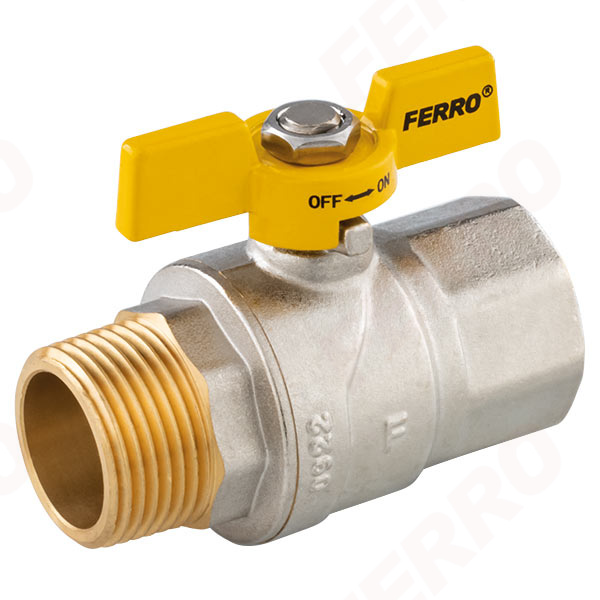

Gas ball valve - type G61

New!

Gas ball valve - type G61

Gas ball valve - type G61

Index: KGMNx1

Download PDF file with card product

female-male
handle: aluminium butterfly
body and ball material: high quality brass CW617N
ball sealing: PTFE
stem seal: double O-ring with NBR70
max. working pressure: MOP5 (0.5 MPa)
working temperature: T2 (-20°C to 60°C)

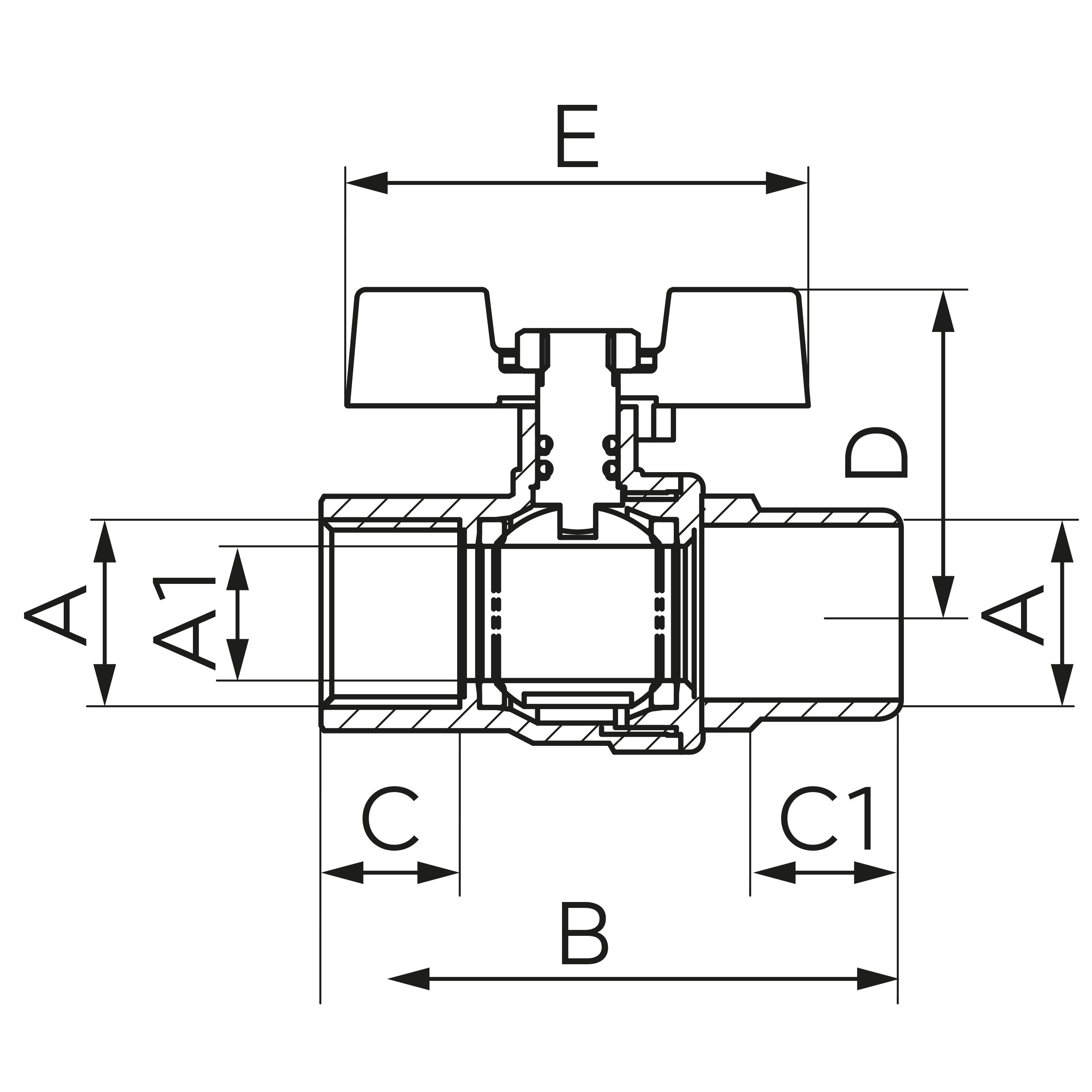

Index	DN	A	A1 [mm]	B [mm]	C/C1 [mm]	D [mm]	E [mm]	Individ. pack.	Bulk pack.	Index R*
KGMN11	15	Rp1/2-R1/2	15	63.2±1	min. 15/12.5	36.2±2	51.5±3	16	144	KGMN11W
KGMN21	20	Rp3/4-R3/4	20	71.5±1	min. 16.3/14	40.1±2	51.5±3	10	90	KGMN21W
KGMN31	25	Rp1-R1	24,5	85±1	min. 19.1/16	49.2±2	67±3	6	54	KGMN31W

*R - Product in individual packaging with EAN code enabling retail sale
