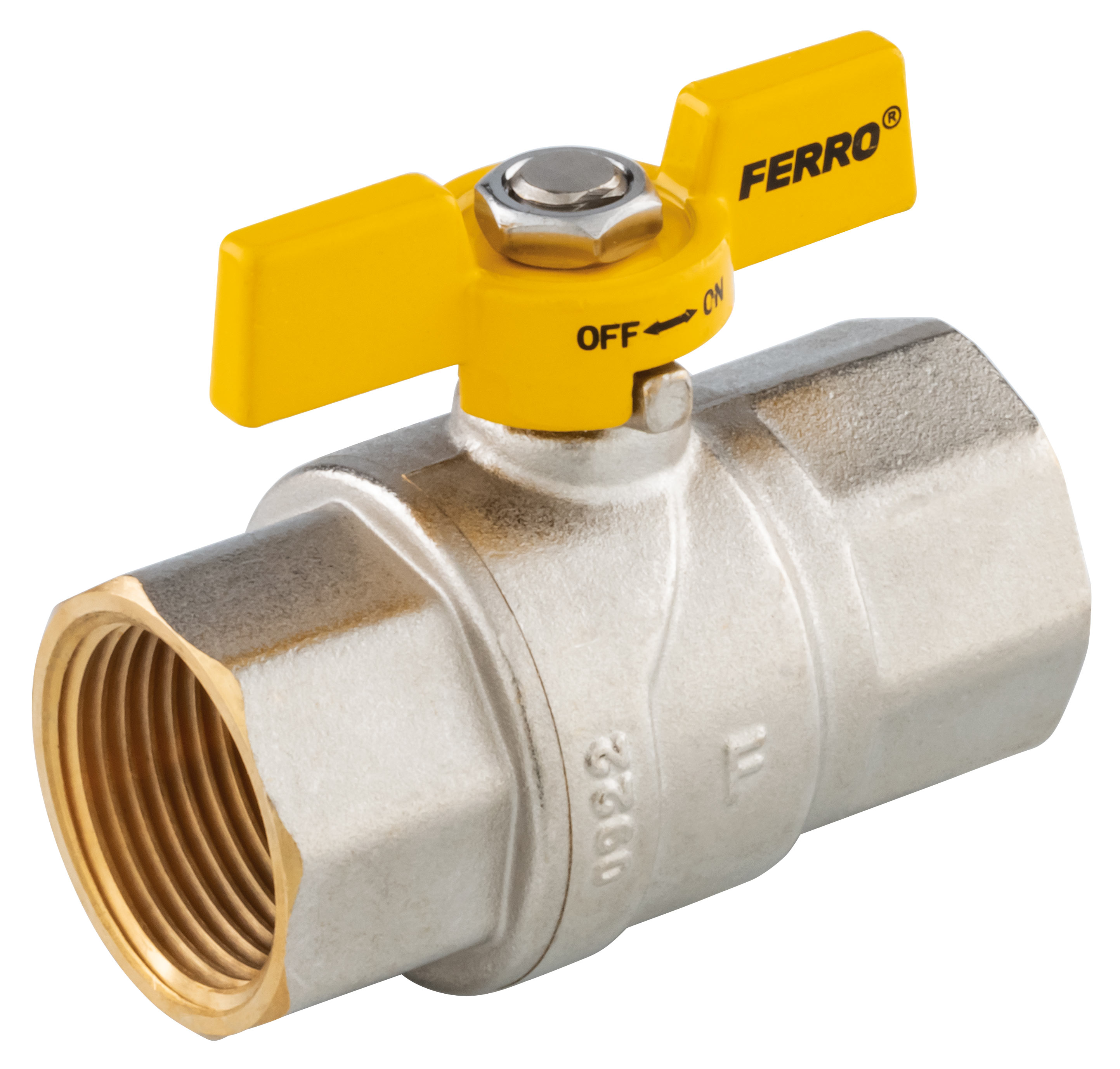

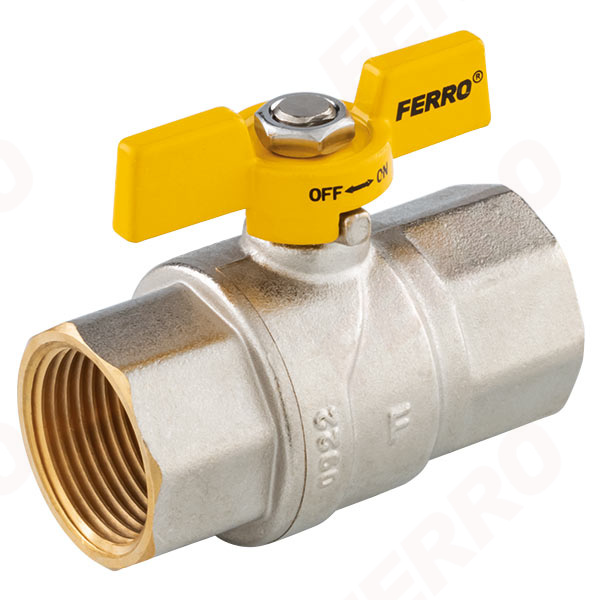

Gas ball valve - type G61

New!

Gas ball valve - type G61

Gas ball valve - type G61

Index: KGMNx

Download PDF file with card product

female - female
handle: aluminium butterfly
body and ball material: high quality brass CW617N
ball sealing: PTFE
stem seal: double O-ring with NBR70
max. working pressure: MOP5 (0.5 MPa)
working temperature: T2 (-20°C to 60°C)

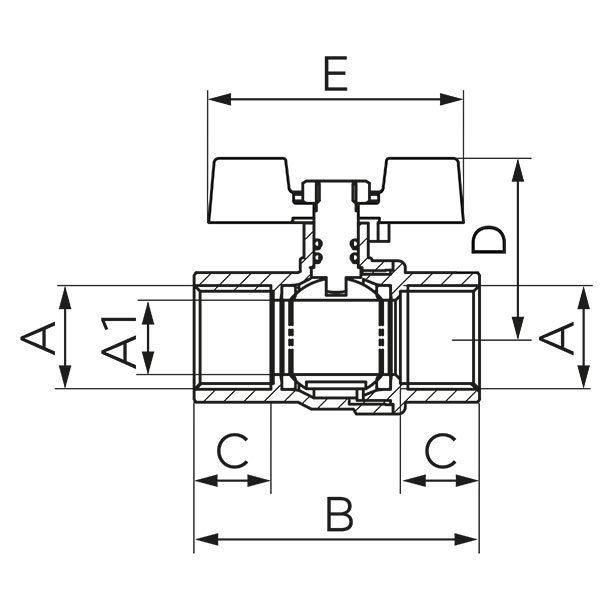

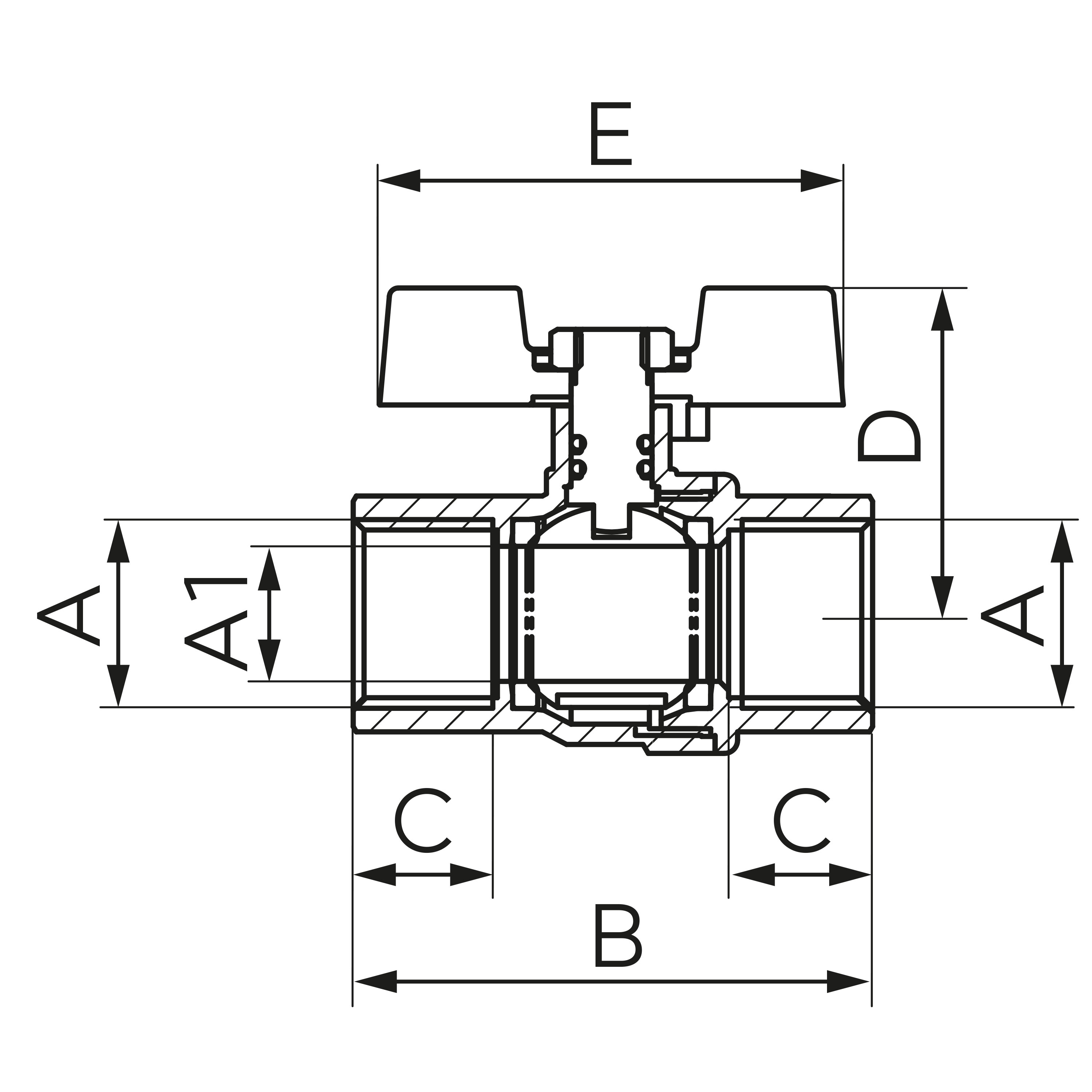

Index	DN	A	A1 [mm]	B [mm]	C[mm]	D [mm]	E [mm]	Individ. pack.	Bulk pack.	Index R*
KGMN1	15	Rp 1/2	15	57.7±1	min. 15	36.2±2	51.5±3	16	144	KGMN1W
KGMN2	20	Rp 3/4	20	67±1	min. 16.3	40.1±2	51.5±3	12	108	KGMN2W
KGMN3	25	Rp 1	24,5	81.3±1	min. 19.1	49.2±2	67±1	6	54	KGMN3W

*R - Product in individual packaging with EAN code enabling retail sale
