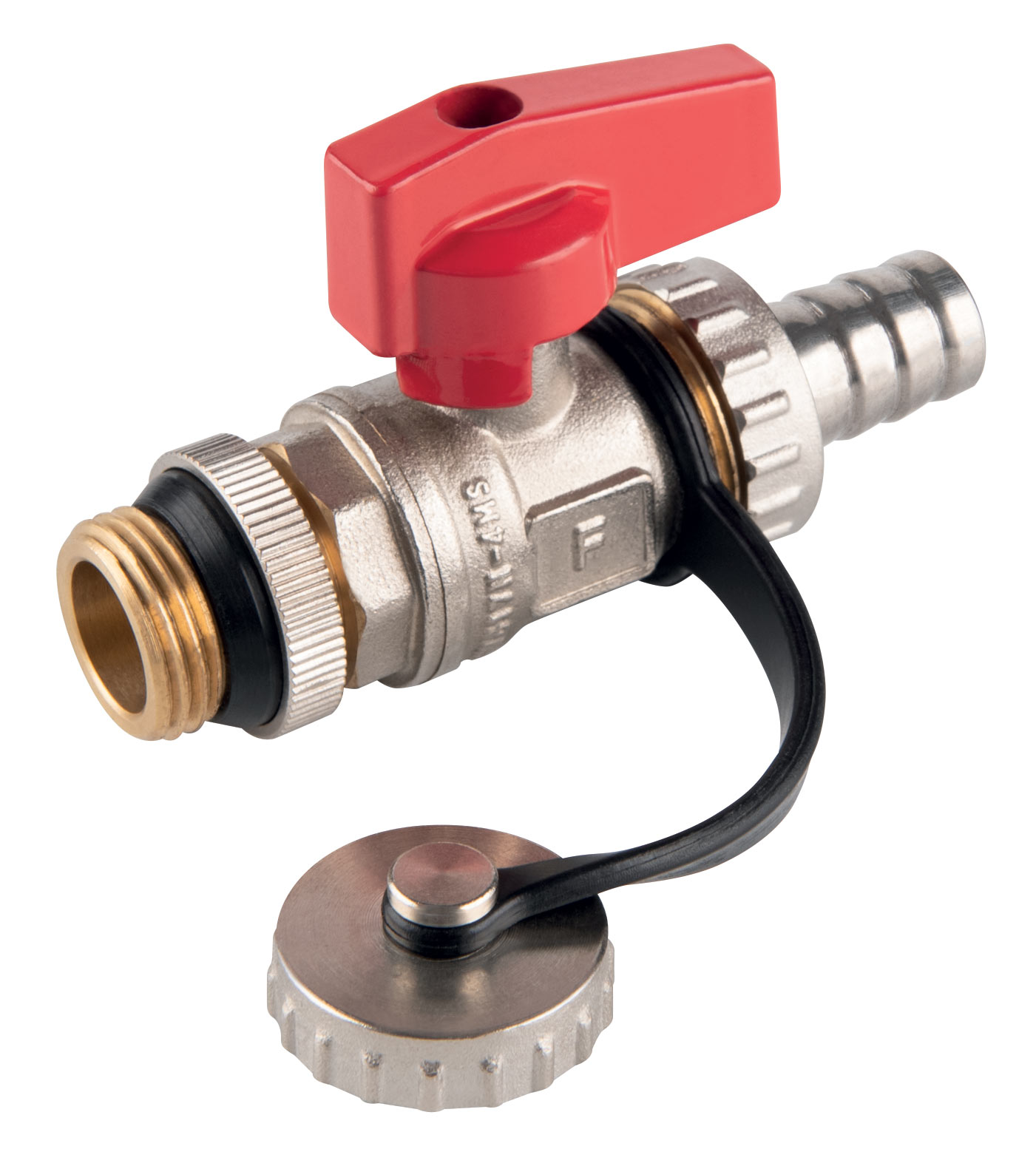

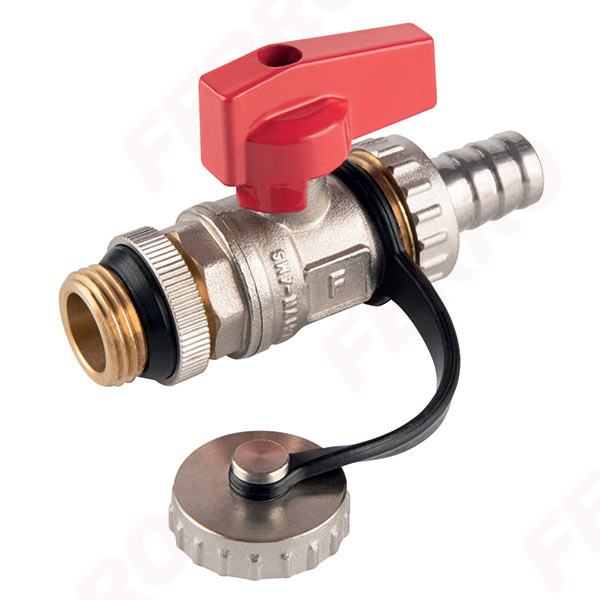

F-Comfort - Drain ball valve, male, cap handle

Download PDF file with card product

• warranty: 5 years
• medium: water
• hose connector and plug included
• an additional nut with a seal on the mounting thread
• body and ball material: brass
• brass CW617N-4MS - reduced lead and nickel content
• material of ball and stem seals: PTFE
• double stem sealing
• handle: metal butterfly
• nominal operating pressure: 10 bar (PN20)
• nominal operating temperature: 100°C
• NICKEL FREE - the surface of the valve that may be in contact with water is not nickel plated

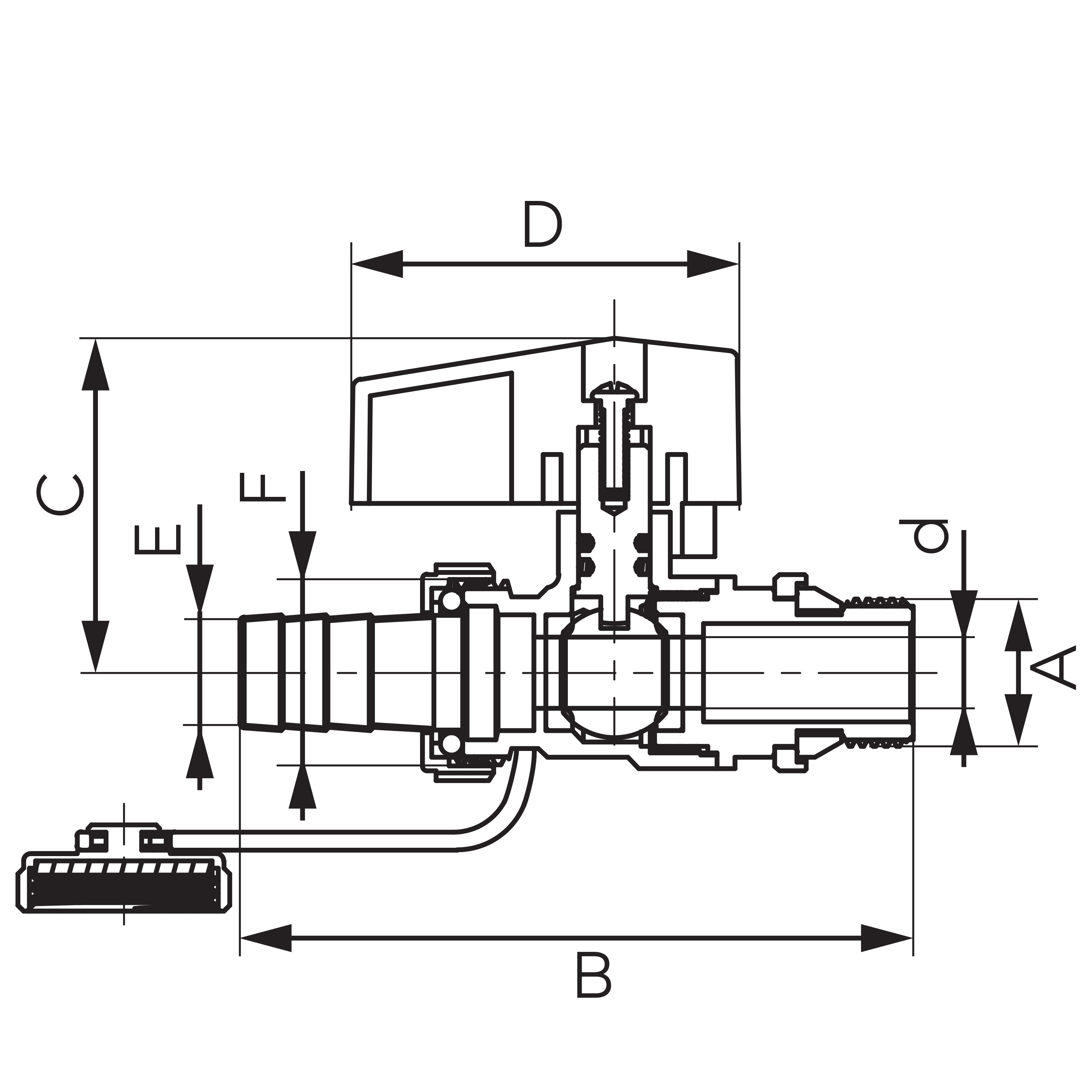

Code	DN	A	d [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F	Kvs [m³/h]
ZSUN10	10	G3/8	10	82,5	40,5	43,5	13	G1/2	3,54	10	120
ZSUN1	15	G1/2	12	92	41	43,5	15	G3/4	5,57	10	80
ZSUN2	20	G3/4	15	92	43	43,5	19,6	G1	10,37	10	60
