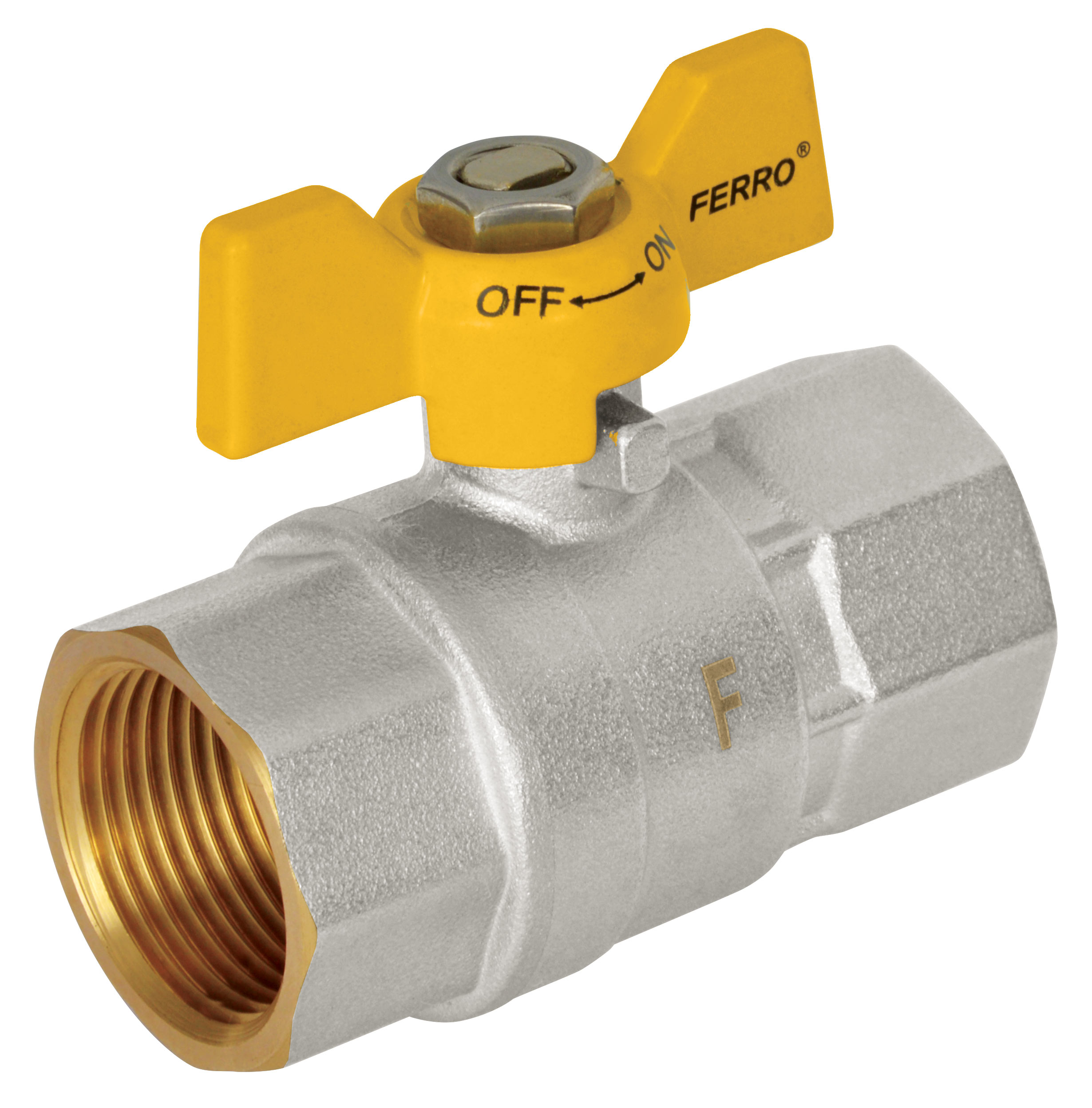

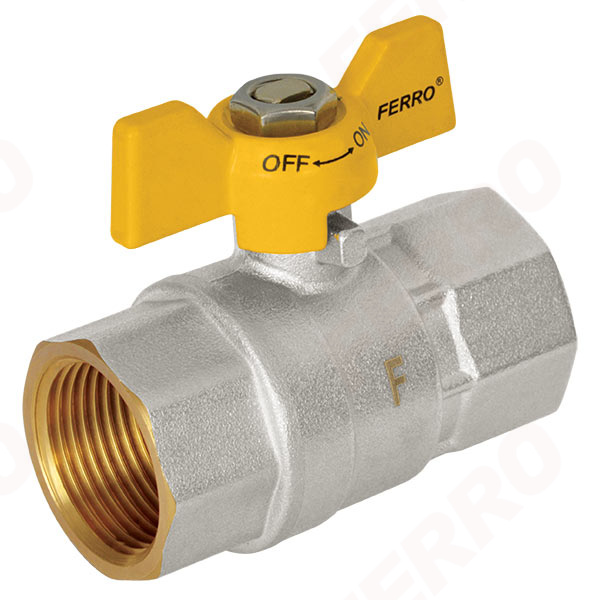

Gas ball valve - type G18

Gas ball valve - type G18

Gas ball valve - type G18

Index: KGMSx

Download PDF file with card product

female - female
with gland
handle: metal butterfly
body and ball material: high quality brass CW617N
ball sealing: PTFE
stem sealing: PTFE and O-ring with NBR70
max. working pressure: MOP5 (0.5 MPa)
working temperature: T2 (-20°C to 60°C)

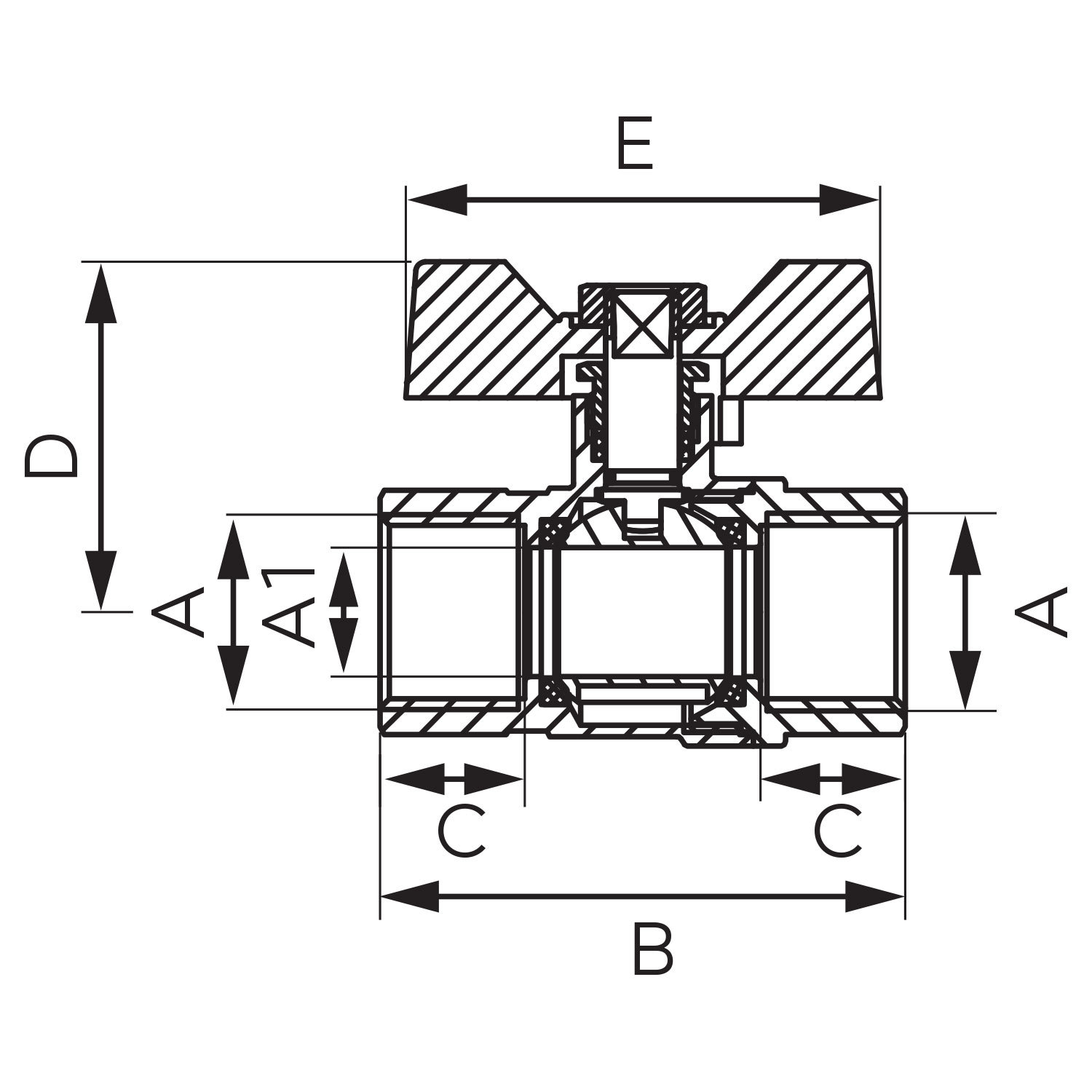

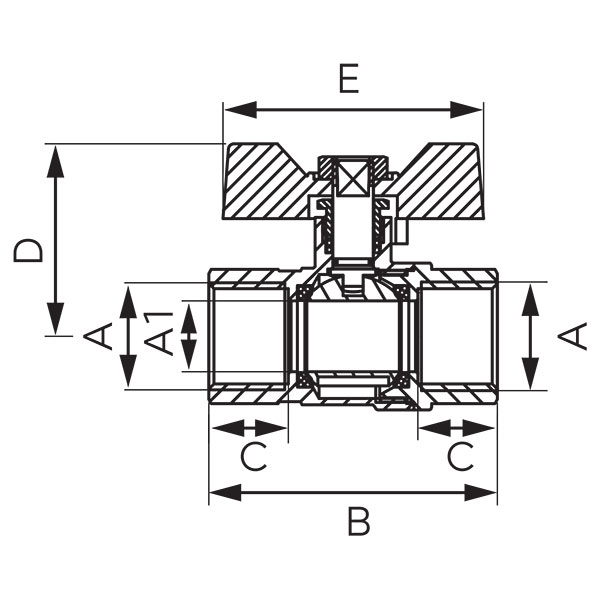

Index	DN	A	A1 [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Individ. pack.	Bulk pack.	R*
KGMS1	15	Rp 1/2	14	57±1	min. 15	39±1	51,5±1	16	144	KGMS1W
KGMS2	20	Rp 3/4	18,5	66,7±1	min. 16.3	42±1	51,5±1	12	108	KGMS2W
KGMS3	25	Rp 1	23	78±1	min. 19.1	54,5±1	67±1	7	63	KGMS3W

*R - Product in individual packaging with EAN code enabling retail sale.
