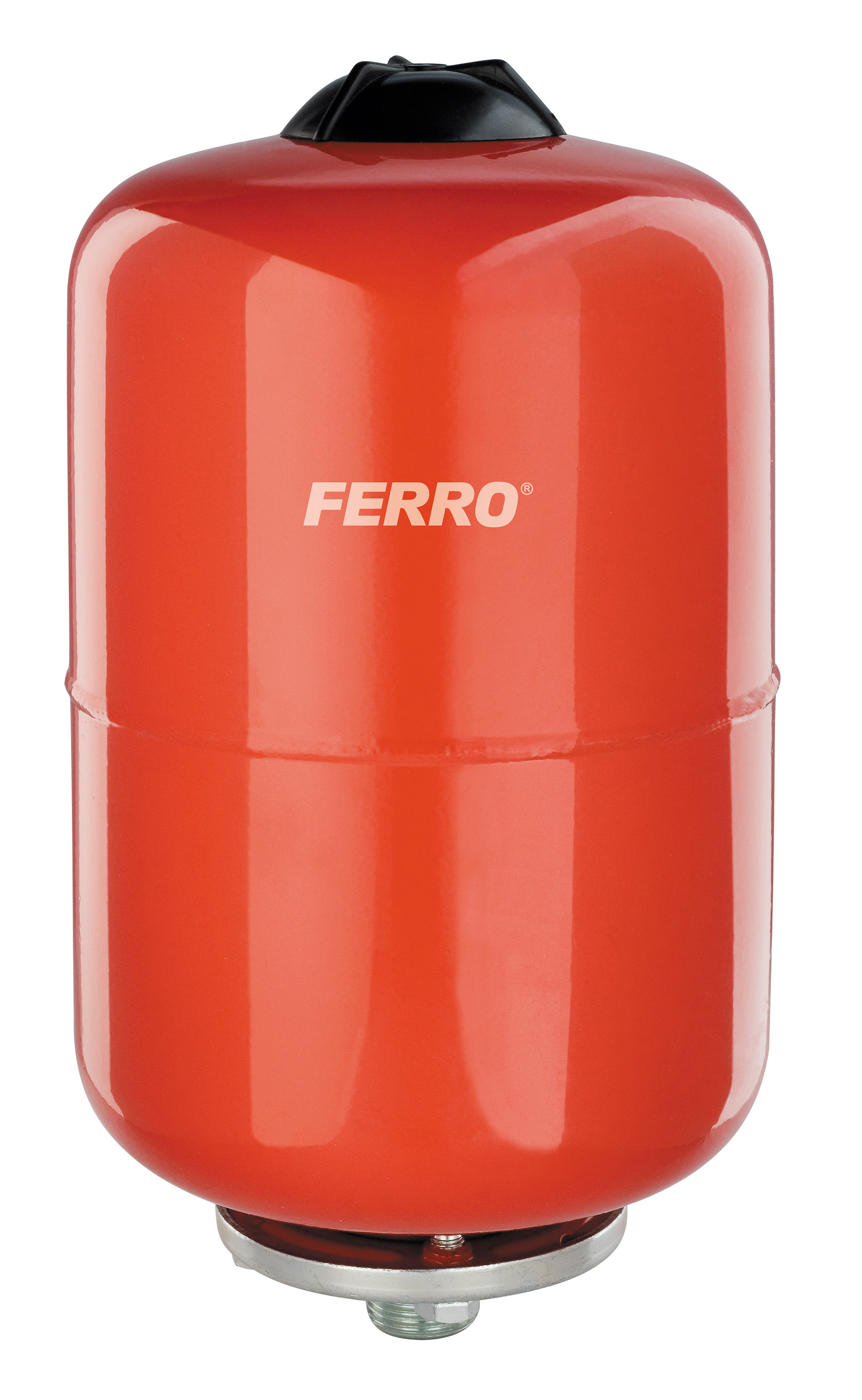

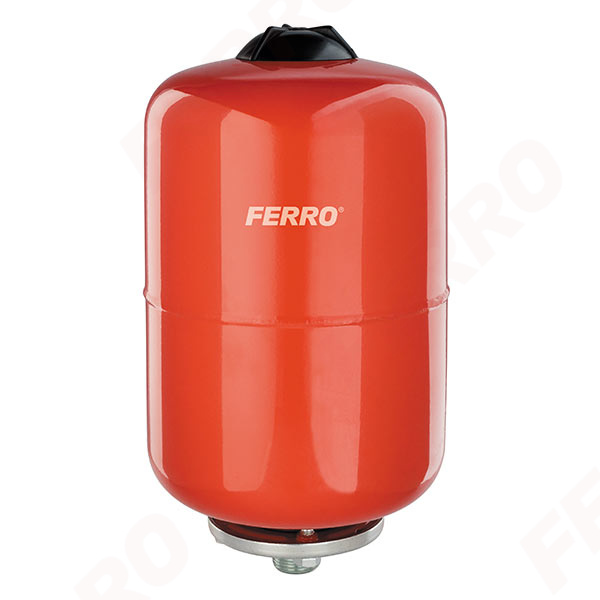

Vessels for heating systems - hanging

Vessels for heating systems - hanging

Vessels for heating systems - hanging

Code: CO

Individual packaging: 1
with a barcode for retail sale

Collective packaginig: -

Download PDF file with card product

warranty: 2 years
max. working pressure: 8 bar
precharge pressure: 1.5 bar
working temperature: from -10°C to +100°C
membrane (replaceable): EPDM
colour: RAL 3000

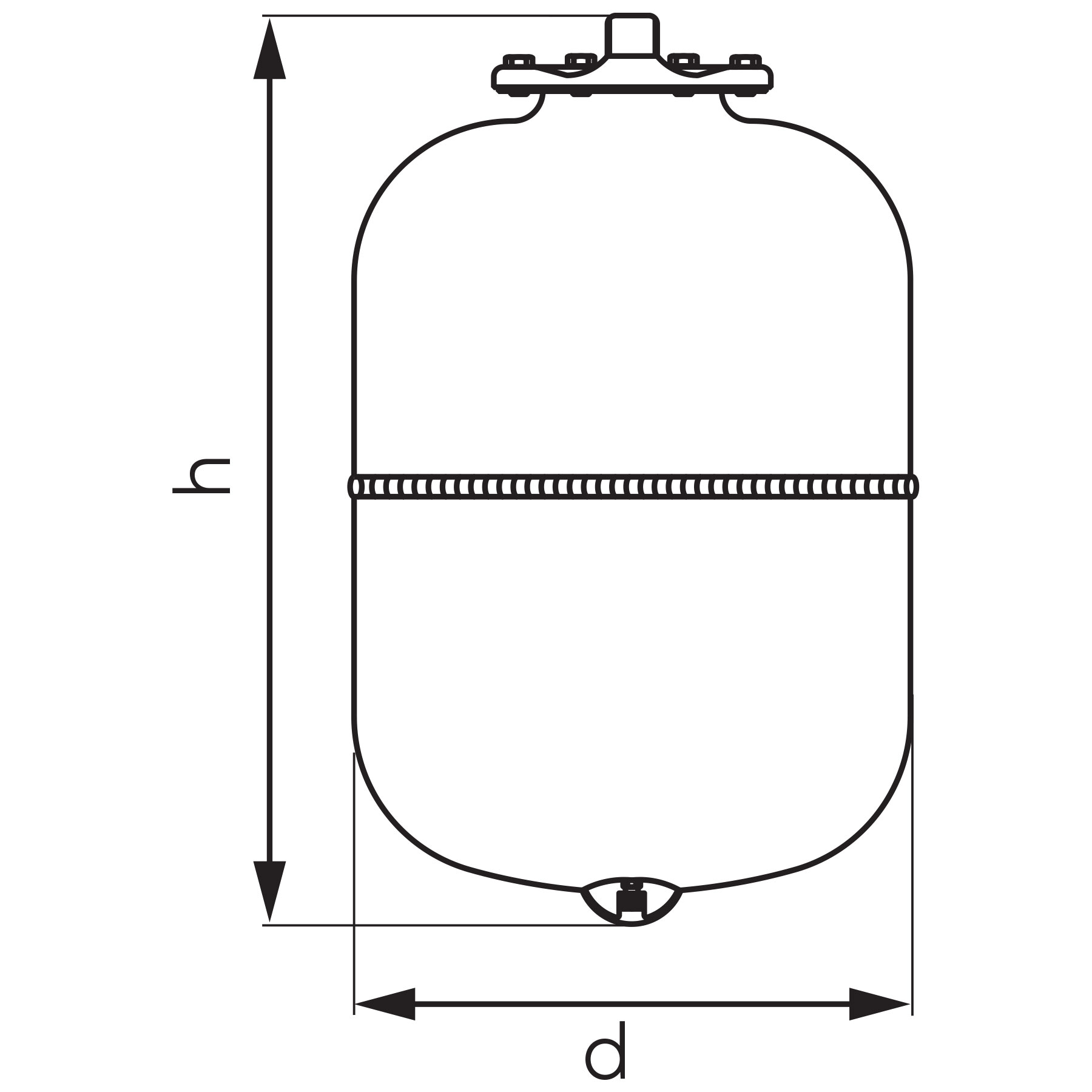

Code	Model	h [mm]	d [mm]	Connection	Volume [l]	Individ. pack.	Collect. pack.
CO5W	R5	300	160	3/4”	5	1	-
CO8W	R8	316	200	3/4”	8	1	-
CO12W	R12	295	280	3/4”	12	1	-
CO18W	R18	430	280	3/4”	18	1	-
CO24W	R24	483	280	3/4”	24	1	-
CO35W	R35	440	365	3/4”	35	1	-
CO50W	R50	585	365	3/4”	50	1	-
