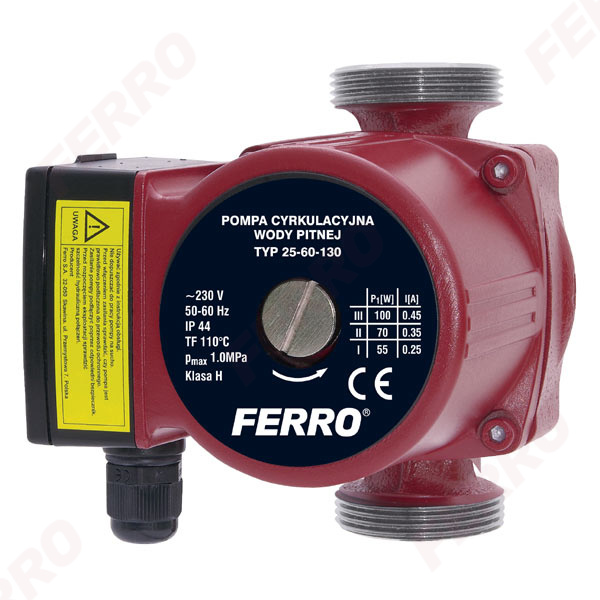

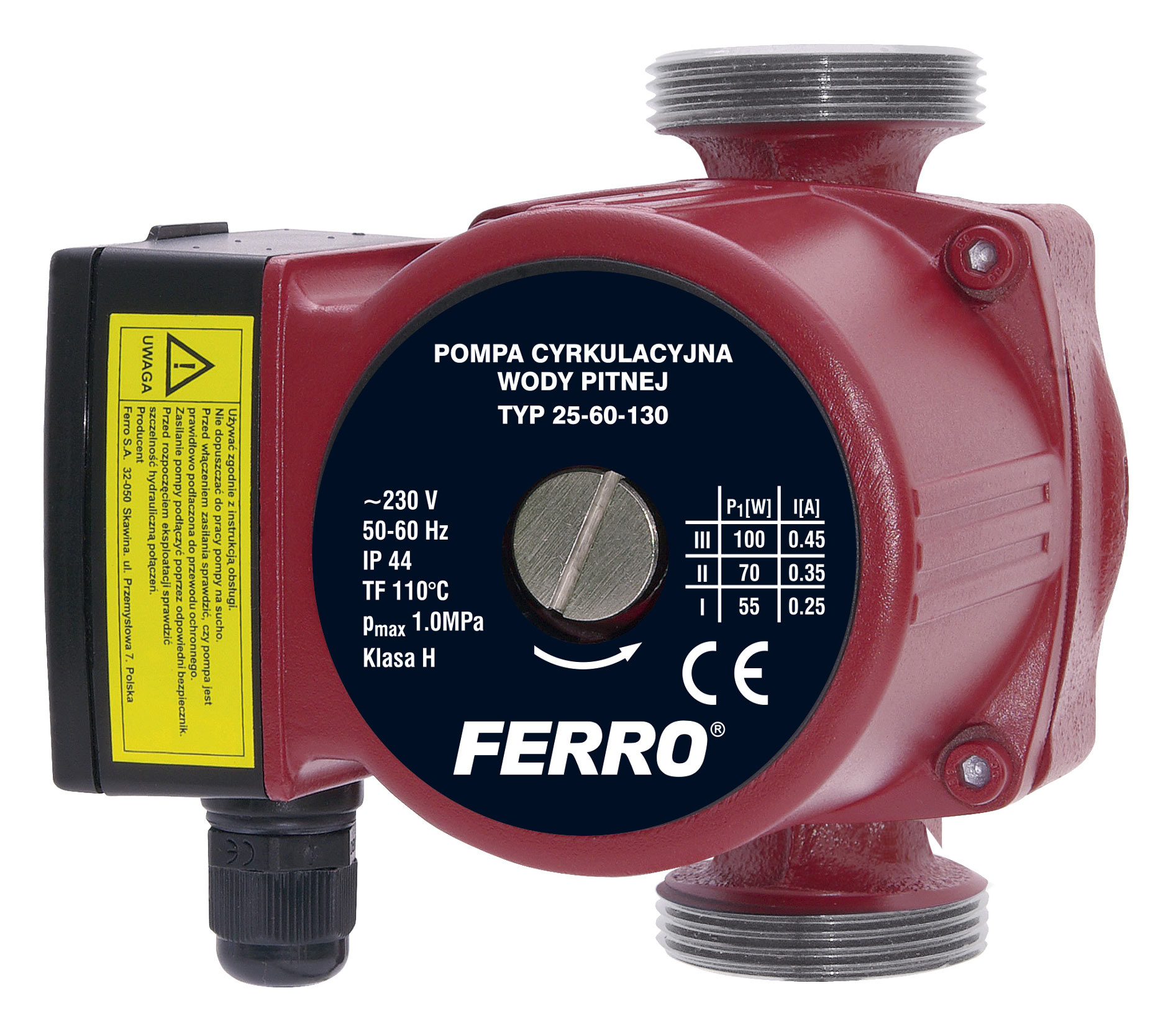

25-60-130 drinking water circulation pump

25-60-130 drinking water circulation pump

25-60-130 drinking water circulation pump

25-60-130 drinking water circulation pump

25-60-130 drinking water circulation pump

25-60-130 drinking water circulation pump

Code: 0204W


Opakowanie jednostkowe Individual packaging: 1
with a barcode for retail sale

Collective packaginig: 8

Download PDF file with card product


  • Operating range: 0.2 - 4.5 m³/h
  • Lifting height: max. 5.5 m
  • Liquid temperature: min. +2°C, max. +110°C
  • Application: intended exclusively for drinking water
  • Maximum pressure: 10 bar
  • Protection class: IP 44
  • Insulation class: H
  • Cable gland: PG 11
  • Installation: axel shaft in horizontal position and terminal box located as desired except under the pump
  • Voltage: 50-60 Hz, ~230 V
  • Power consumption (I,II,III): 55/70/100 W

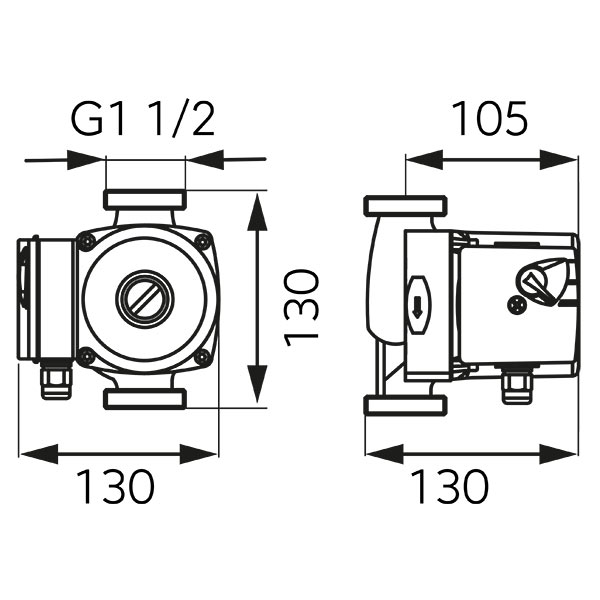

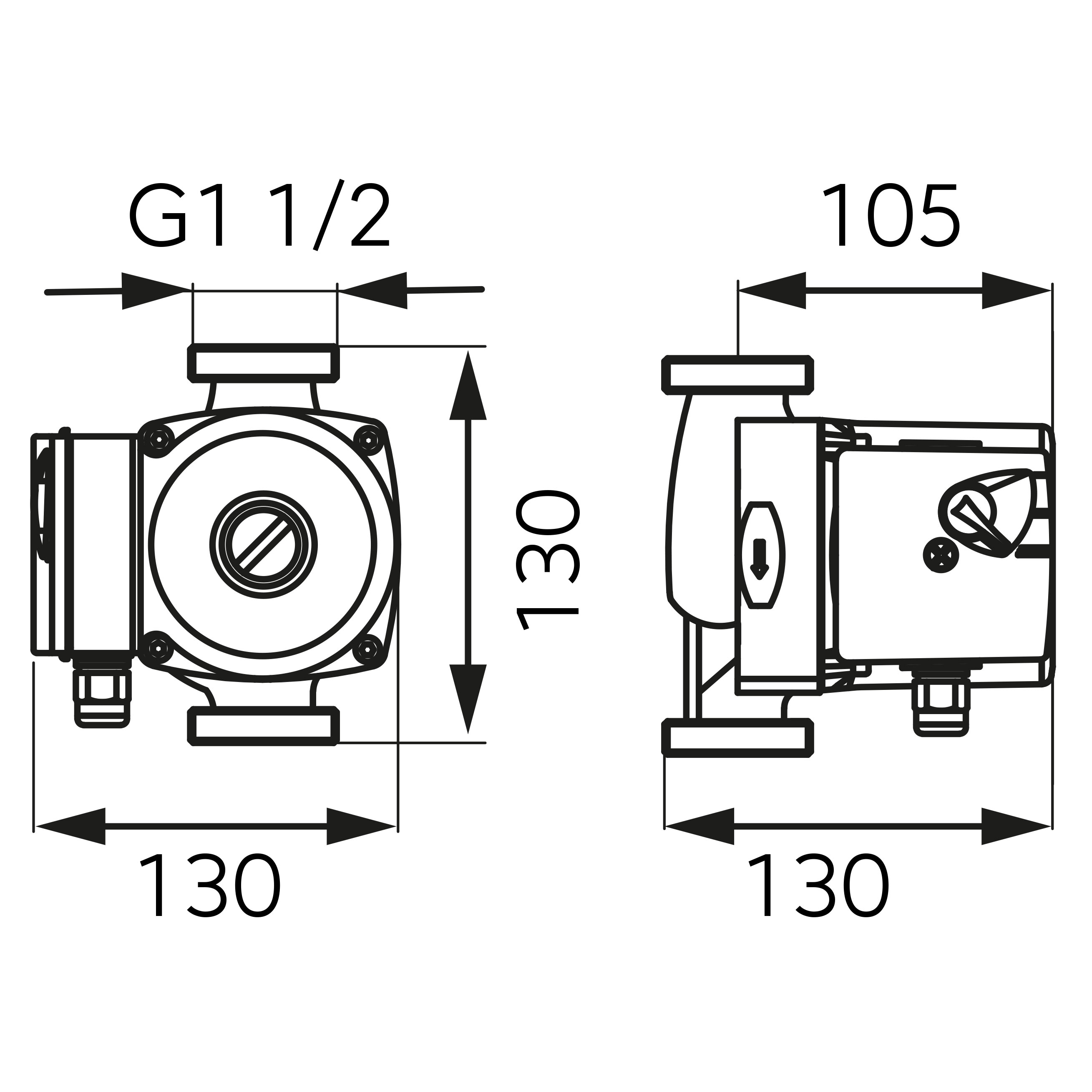

  • Connection spacing: 130 mm
  • Connection: G1 1/2
  • Ambient temperature: min. +2°C, max. +40°C
