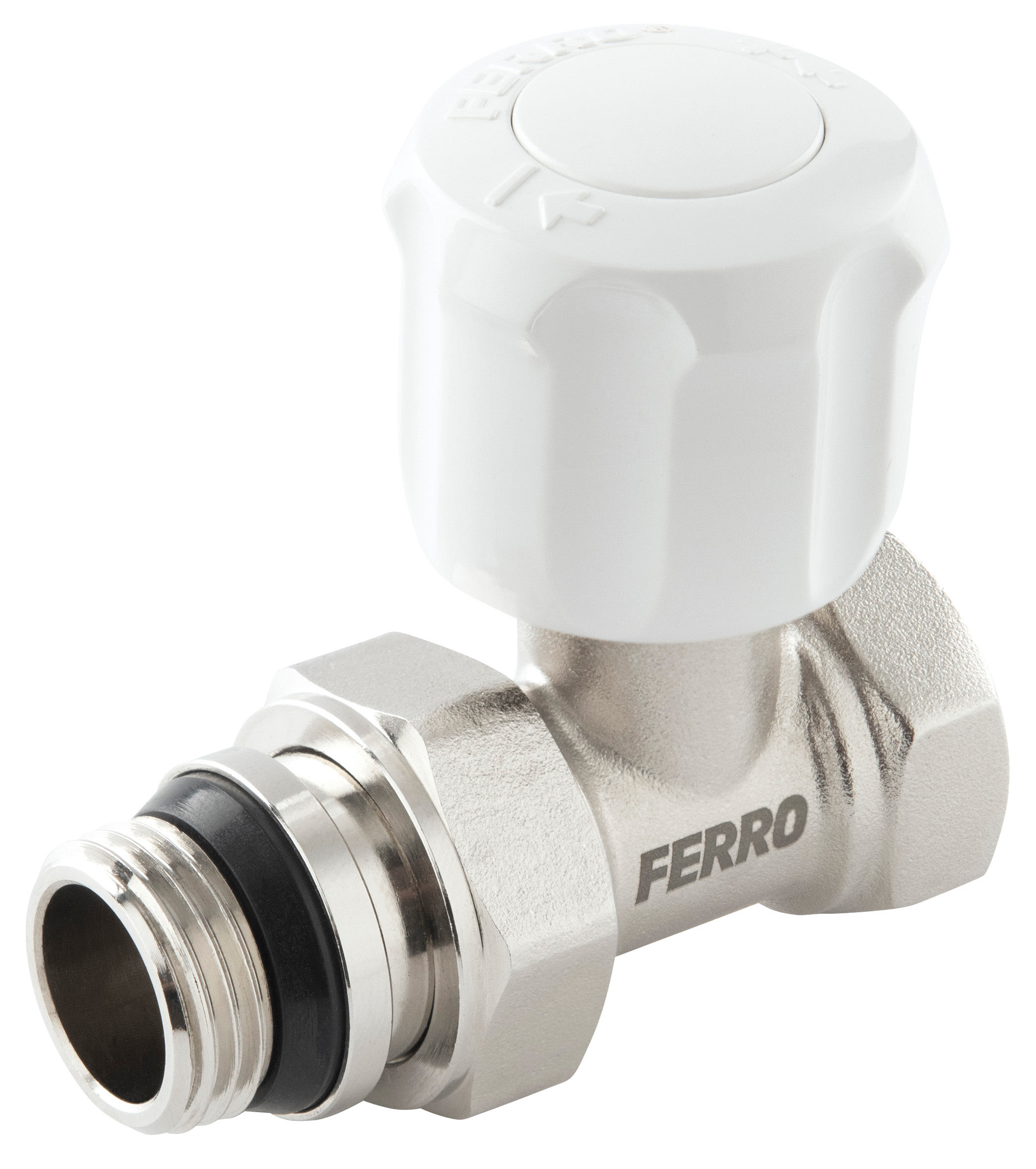

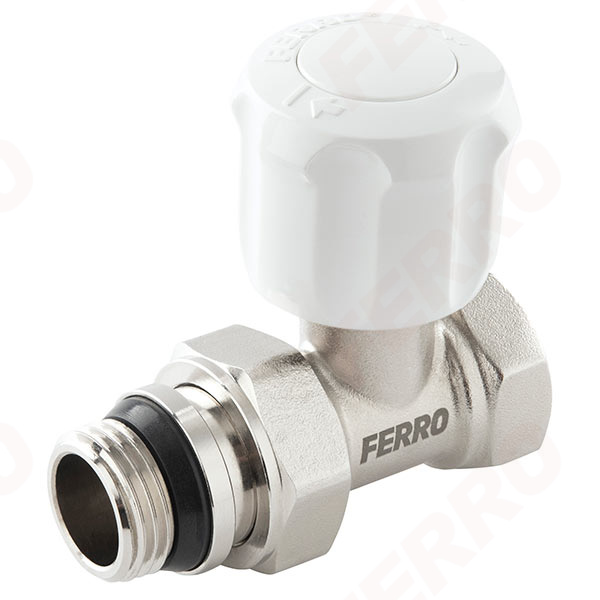

Straight radiator control valve

Individual packaging: 1

With a barcode for retail sale

Download PDF file with card product

• radiator connection with cone seal
• conical EPDM seal
• body material, stem: CW671N
• material of handwheel: ABS
• double stem sealing: EPDM o-ring
• nominal pressure: 1.0 MPa
• maximum operating temperature: 100°C
• flow capacity: 0.340 m3/h
• flow coefficient Kv (when the valve is fully open): 1.075 m3/h
• medium: water, glycol/water solution (50%)
