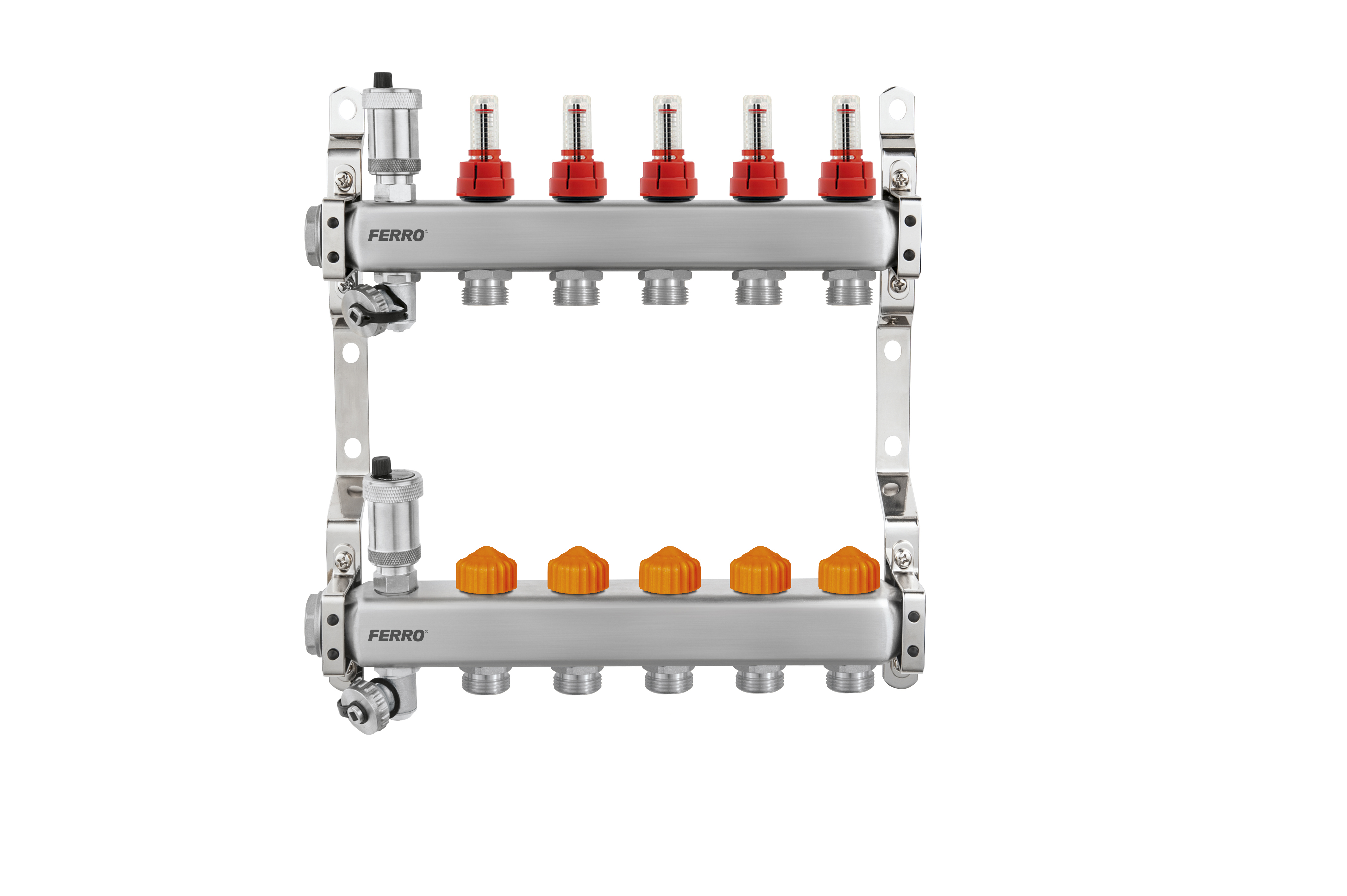

Stainless steel manifold F-PRO with automatic flow control, 12-way
F-PRO
The stainless steel F-PRO manifold with automatic flow limiters, 12-way version, is a central element of a modern heating manifold system. It distributes the heating medium to individual circuits in radiator, underfloor heating and cooling, as well as mixed installations, supporting stable operation of the entire hydraulic heating manifold.

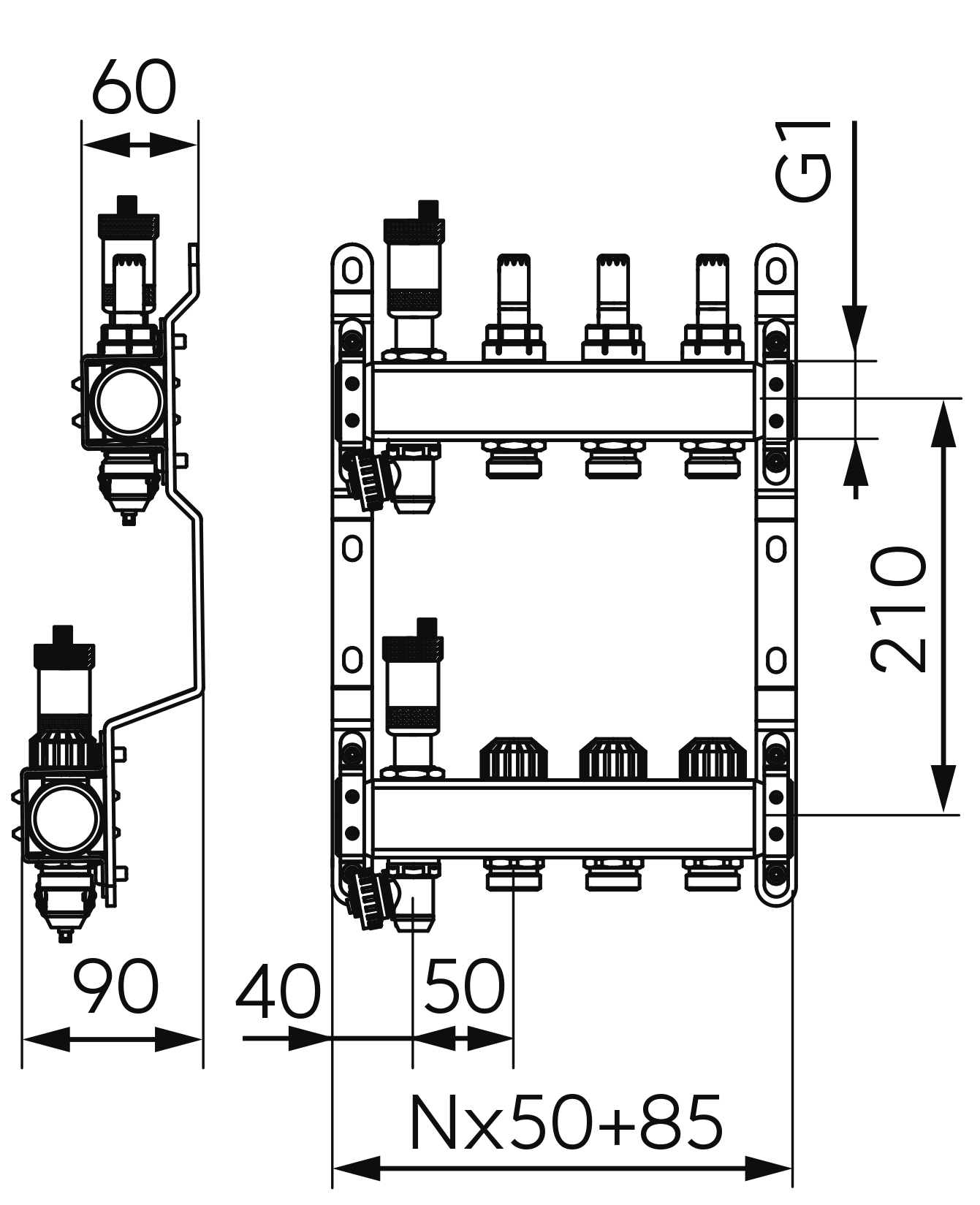

The 12 sections and 685 mm beam length suit larger residential or commercial systems, while automatic flow limiters on the return beam keep each circuit balanced. The supply beam is equipped with balancing and measuring valves with flow meters, so the installer can easily set the required flow rates for every loop in the heating distribution manifold.
The beams are made of AISI 304 stainless steel, resistant to corrosion and daily operating loads. The set includes steel brackets for secure mounting in the cabinet, rotary G1/2 x G3/4 drain valves on each beam and an automatic air vent for safe start-up and operation. G3/4 nipples for 16 x 2 mm pipes are supplied for each circuit, and the 1" G male-female beam connection fits standard heating installations with water or up to 50% glycol.
Packed in a practical box and ready for installation, this F-PRO stainless steel manifold is a reliable choice for demanding heating projects where precise regulation, durability and professional hydraulic distribution matter.
- Bar size:
- 1" F-M
- No. of drain valves:
- 2
- Type of vent valve:
- automatic
- Type of valve on return bar:
- automatic flow limiter
- Type of valves on supply bar:
- balancing and measuring valves (flow meters)
- Unit packaging method:
- box
- Drain valve type:
- swivel G1/2xG3/4
- Nipple type:
- G3/4
- Media:
-
- 50% glycol
- water
- Body material/assembly material:
- AISI 304 stainless steel
