Sediment filter with magnet, F-F, DN15, G1/2

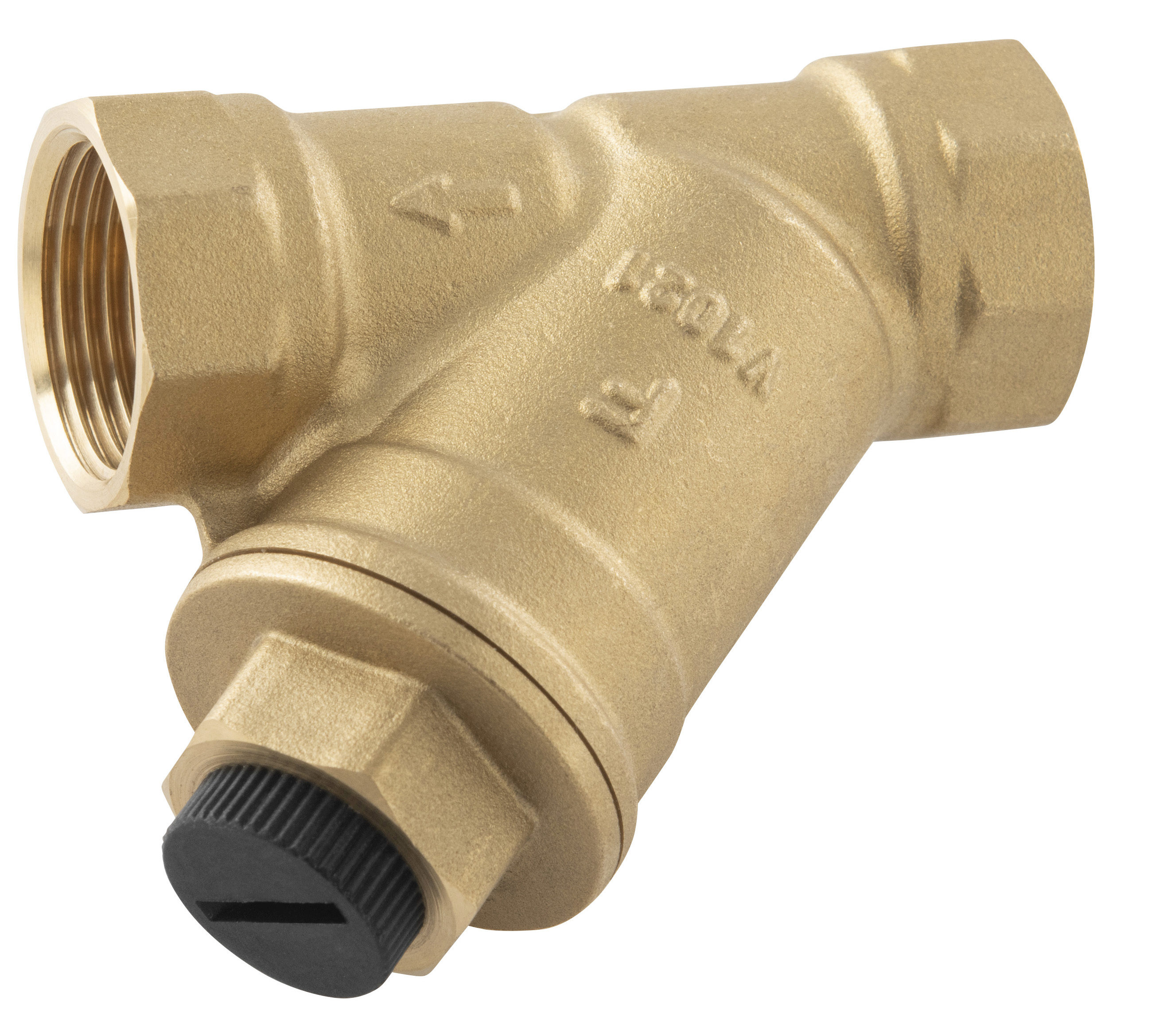

The angled mesh filter with magnet is a compact installation component designed to protect heating and water systems from solid particles. Its oblique body layout supports efficient flow control in domestic and light commercial applications.

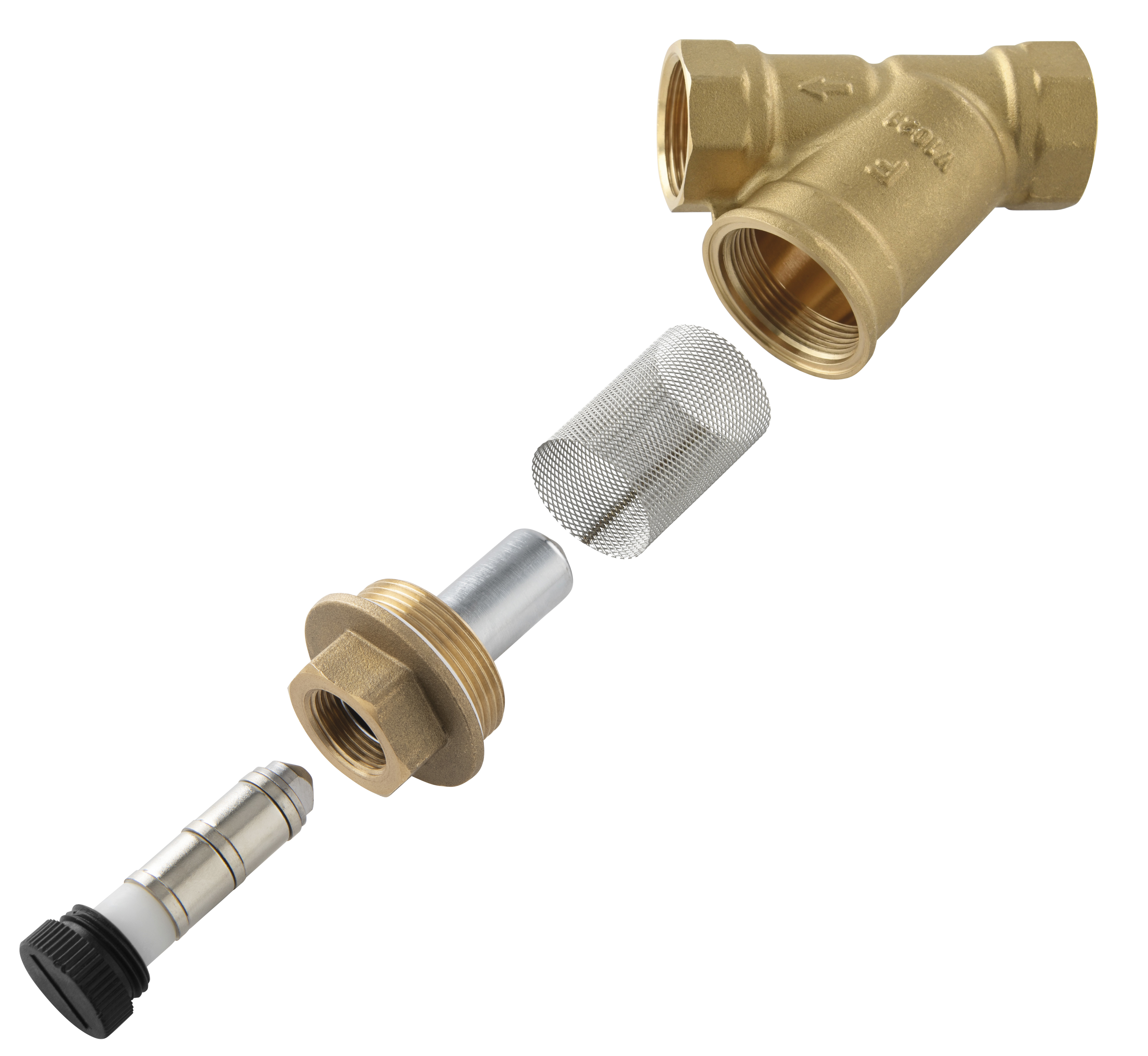

The integrated mesh filter captures fine impurities from water or water-glycol mixtures up to 50%, while the built-in magnet targets ferromagnetic particles. With a nominal pressure rating of 16 bar and maximum operating temperature of 100°C, the filter performs reliably in demanding system conditions.
The body made of CW617N brass in 4MS alloy offers high resistance to corrosion and dezincification, and the nickel-free finish suits installations where contact with drinking water is expected. A nut-to-nut G1/2 connection simplifies integration with standard pipework, and the compact dimensions support use in tight installation spaces.
The angled mesh filter with magnet is a practical choice for installers and users who value long-term protection of the installation and stable operation of heating or water systems.
- Maximum operating temperature [°C]:
- 100
- Nominal pressure [bar]:
- 16
- Maximum operating pressure [bar]:
- 16
- Unit packaging method:
- hanger
- Filter type:
- diagonal mesh
- Barcode:
- bar code packaging for retail sale
- NICKEL FREE:
- yes
- Connection type:
- screw out-screw out
- Gland:
- no
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Full bore:
- no
- Rosette included:
- no
- Media:
-
- 50% glycol
- water
- Body material/assembly material:
- brass CW617N - 4MS
