S. steel manifold w. flowmeters, valves 16x2 mm connect. 2 w
The stainless steel manifold type SN-RZP 1" with thermostatic valves and flow meters is a central element of a heating manifold system, distributing the heating medium evenly to two separate circuits. It works equally well in radiator heating, surface heating and cooling, as well as in mixed installations, supporting stable operation of the entire system.
The supply beam is equipped with balancing flow meters for precise flow regulation, while the return beam features thermostatic valves with manual knobs and an M30x1.5 connection for electrothermal heads. Automatic air vents and two rotary drain valves G1/2 x G3/4 simplify commissioning and servicing, so the heating manifold remains easy to control in everyday use.

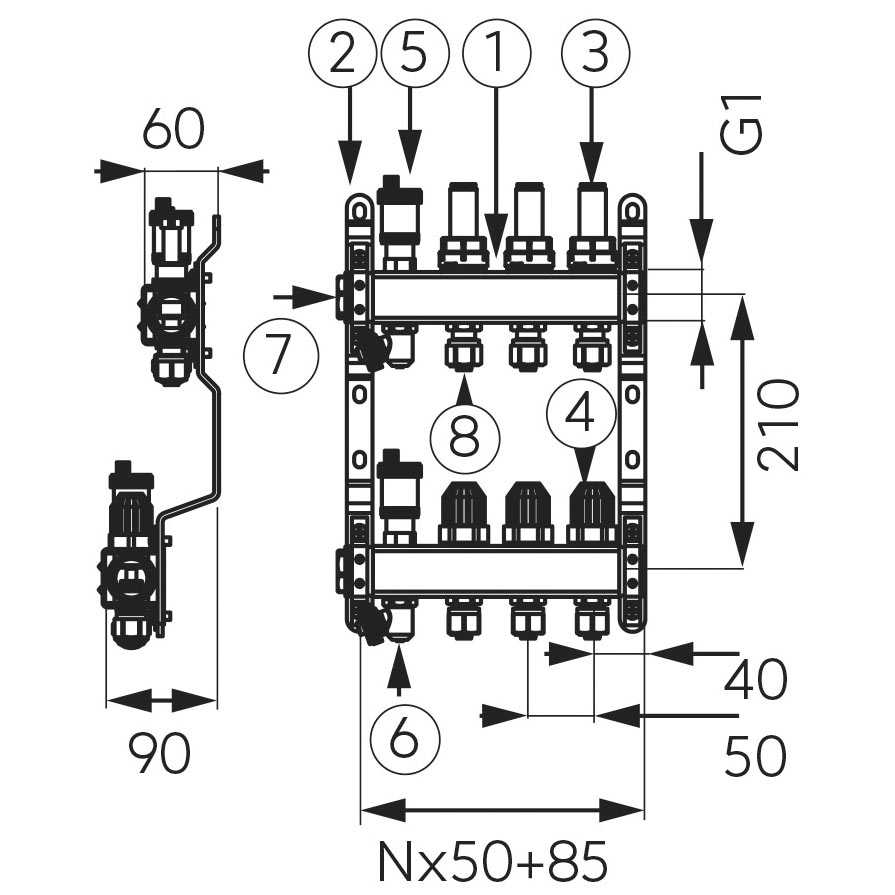

The 1" beams are made of AISI 304 stainless steel, resistant to corrosion and designed for long-term work with water or 50% glycol. Steel mounting brackets are included, and the compact 185 mm length of the two-section beam fits well into cabinets and tight technical spaces. Nipples G1/2 with connectors for multilayer 16 x 2 mm pipes integrate the manifold smoothly with modern heating installations.
The stainless steel heating manifold with flow meters and thermostatic control is a reliable choice for professional radiator and water distribution systems, combining precise regulation, durable materials and a complete set of accessories ready for quick installation.
- Application area:
- for heating and domestic hot water installation
- Included In Kit:
- set of steel brackets
- Bar size:
- 1"
- No. of drain valves:
- 2
- Type of vent valve:
- automatic
- Type of valves on supply bar:
- balancing and measuring valves (flow meters)
- Barcode:
- bar code packaging for retail sale
- Drain valve type:
- swivel G1/2xG3/4
- Nipple type:
- G1/2 with connectors for 16x2 mm multilayer pipe
- Flow meters for flow rate regulation included:
- yes
- Subtype:
- SN-RZP
- Type of valve on return bar:
- thermostatic valves equipped with knobs for manual adjustment, with the possibility of connecting a thermoelectric head M30x1.5
- Media:
-
- 50% glycol
- water
- Body material/assembly material:
- stainless steel
