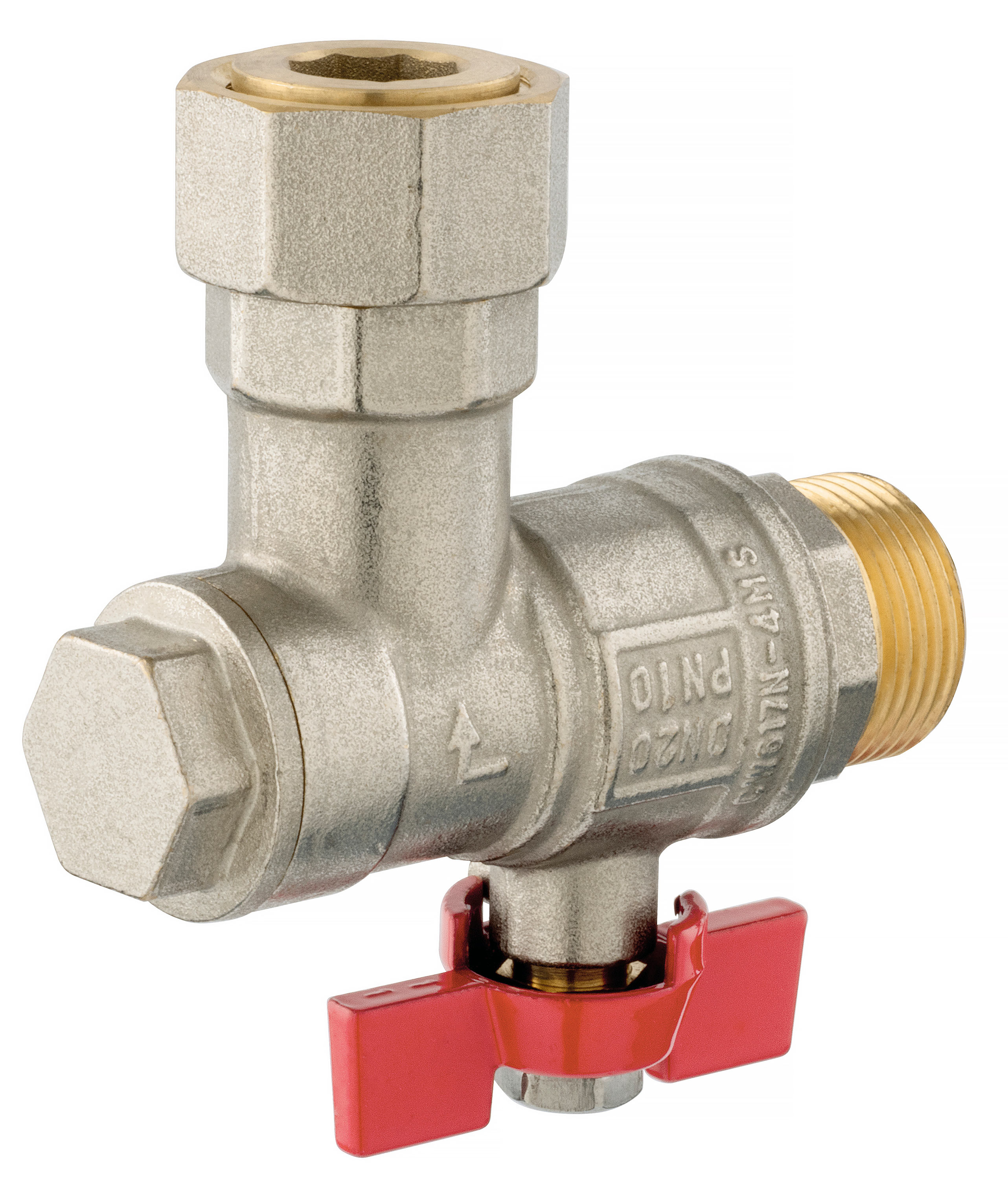

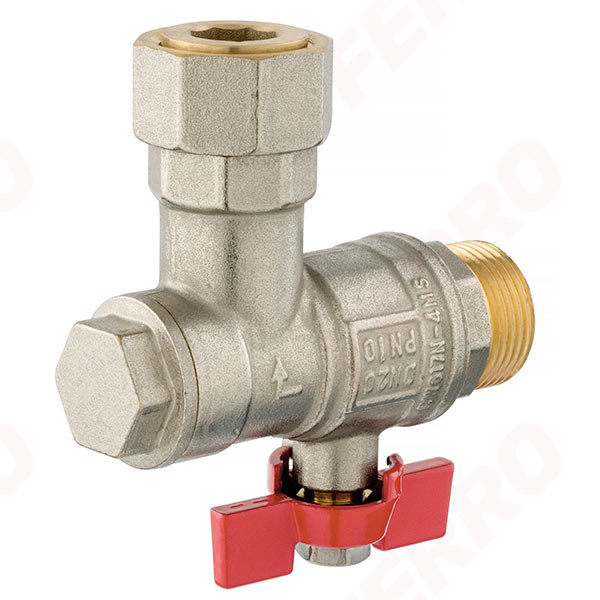

Ball valve angular DN20 with half union and filter
The angled ball valve with filter, butterfly handle and union connection GW-GZ is a compact control element for water and water/glycol installations. Designed in DN15 with a Kv of 4.3 m³/h, it works well in domestic systems where stable flow and reliable shut-off are required.
The integrated stainless steel mesh filter made of AISI 304 captures fine particles in the medium, protecting connected devices. The red butterfly handle under the valve body gives precise flow control even in tight spaces, while the stuffing box design supports safe operation at working pressure up to 10 bar and temperature up to 100°C. As a DN15 ball valve with filter, it fits common small-diameter installation lines.
The body made of high-grade CW617N – 4MS brass and brass ball with PTFE seals resist wear and corrosion, and the nickel-free finish meets stricter water contact requirements. PTFE stem seals limit leakage risk, and the flat EPDM gasket at the connection ensures tightness without additional sealing materials. The angled design with rotating union nut simplifies mounting and later disassembly of appliances, so the valve suits both new builds and upgrades.
The union connection type and compact dimensions support quick, tidy installation in concealed areas, while individual hanger packaging protects the product on site. This angled ball valve with filter is a solid choice for premium plumbing installations where durability, easy servicing and precise shut-off are essential.
- Nominal pressure [bar]:
- 10
- Maximum operating pressure [bar]:
- 10
- Maximum operating temperature [°C]:
- 100
- Filter type:
- mesh; stainless steel
- Unit packaging method:
- hanger
- Connection type:
- with half union
- Ball valve ball material :
- brass
- Type of holder:
- butterfly
- Additional connection seal:
- flat gasket EPDM
- Gland:
- yes
- NICKEL FREE:
- yes
- Built-in filter:
- yes
- Ball sealing material :
- PTFE
- Material of stem seal:
- PTFE
- Media:
-
- 50% glycol
- water
- Body material/assembly material:
- brass CW617N - 4MS
