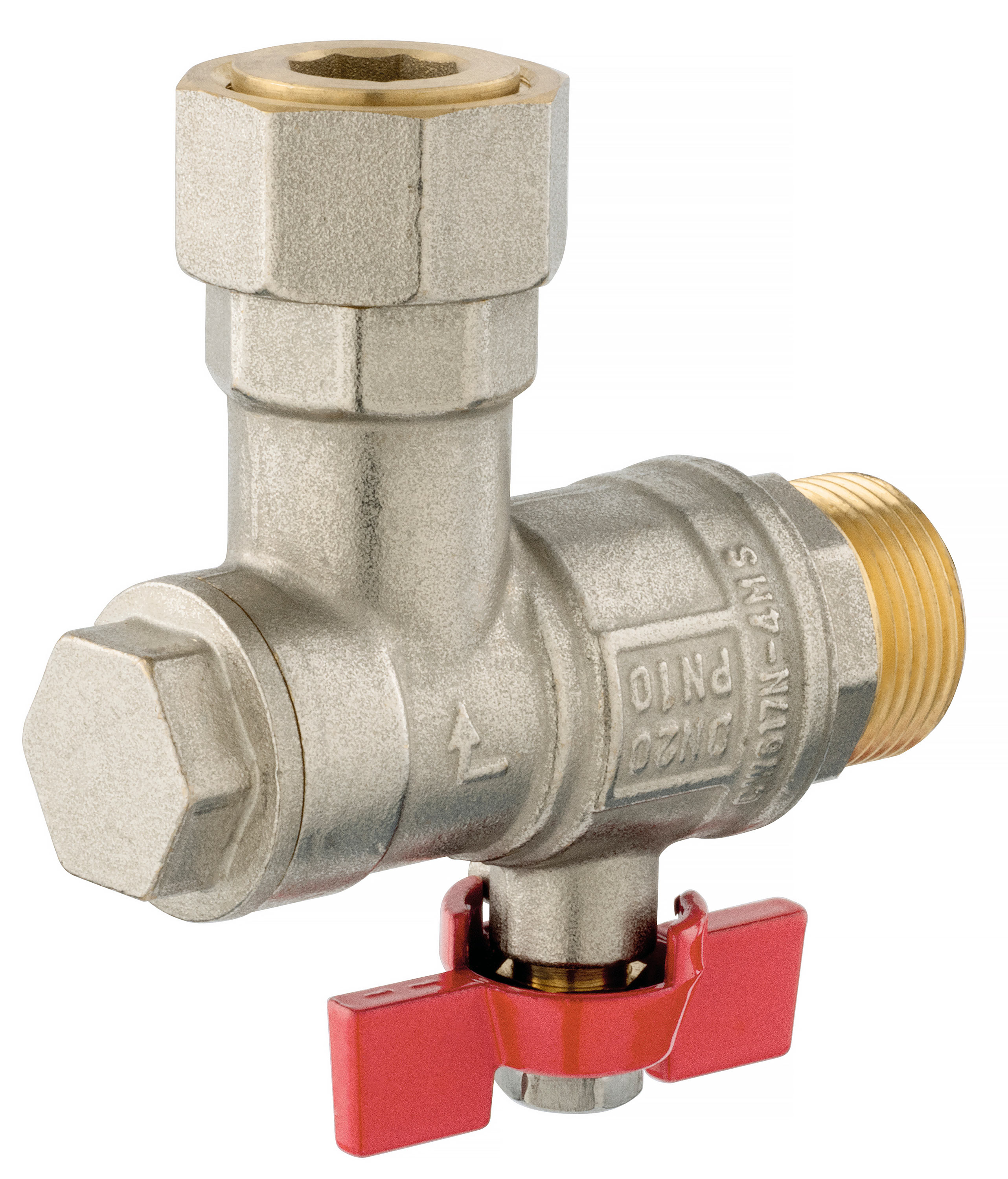

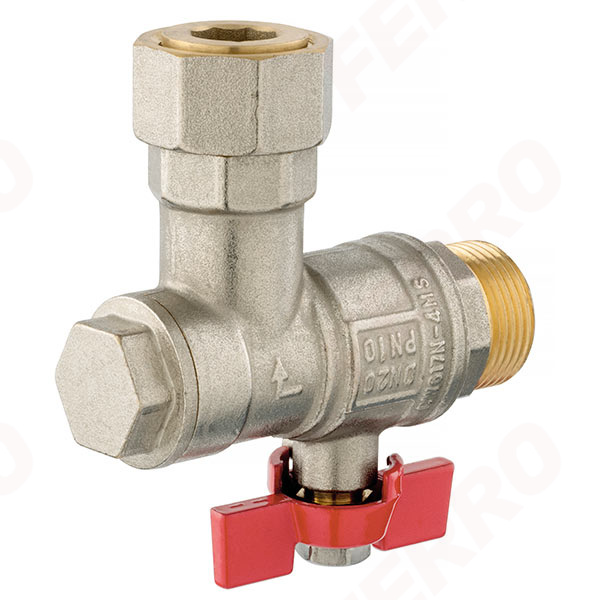

Angle ball valve with butterfly placed under the body and with filter, check valve and half-union, female-male

New!

Angle ball valve with butterfly placed under the body and with filter, check valve and half-union, female-male

Angle ball valve with butterfly placed under the body and with filter, check valve and half-union, female-male

Code: KFMFZZ2SGK

Individual packaging: 1
with a barcode for retail sale

Download PDF file with card product

NICKEL FREE - inner surfaces are not nickel-plated
CW617N-4MS brass - reduced lead and nickel content
application: water, glycol 50%
female-male with half-union
with gland
check valve
handle: metal butterfly type placed under the body
body and ball material: brass
material of ball and stem seals: PTFE
material of flat seals: EPDM
material of filter: stainless steel
nominal pressure: 10 bar
maximum working temperature: 100°C

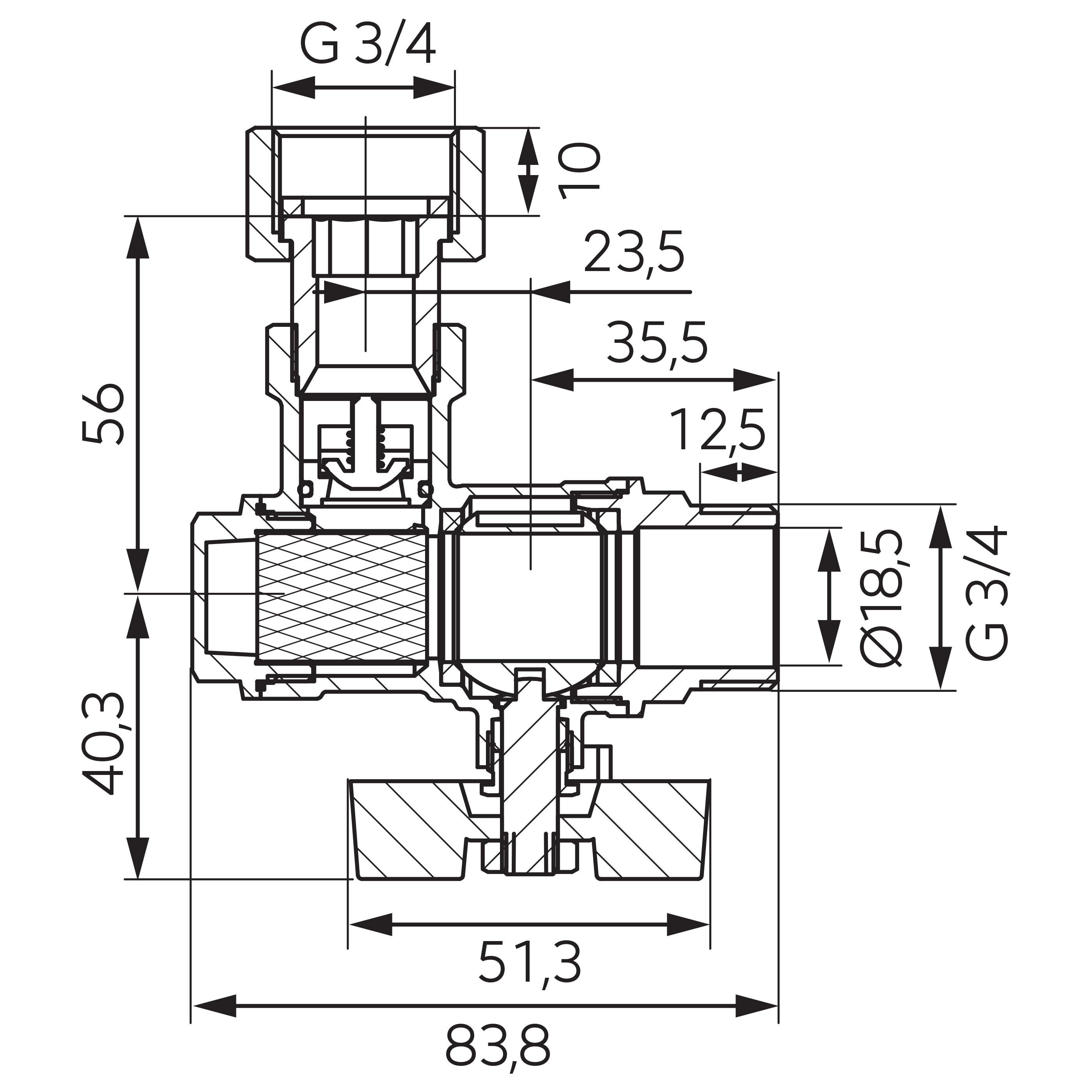

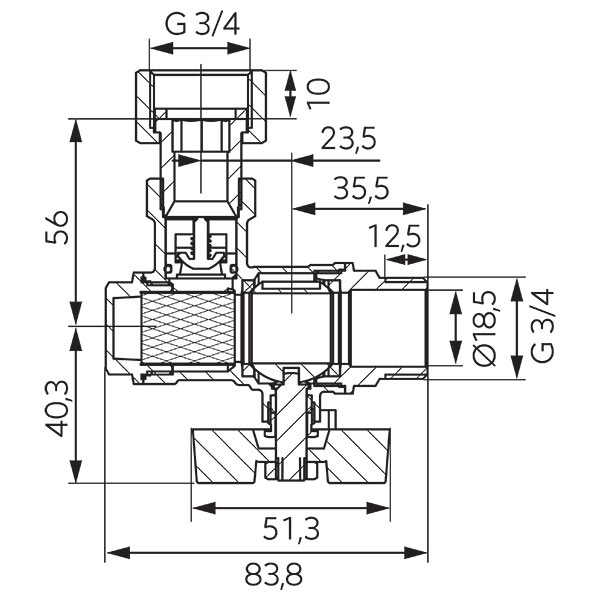

Code

DN

Connection dimension

A

d

C

D

E

F

H

J

Kvs [m³/h]

Valve handle color

KFMFZZ2SGK

DN20

3/4”

G3/4

18.5

83.8

10

40.3

51.3

54.5

35.5

1.08

red
