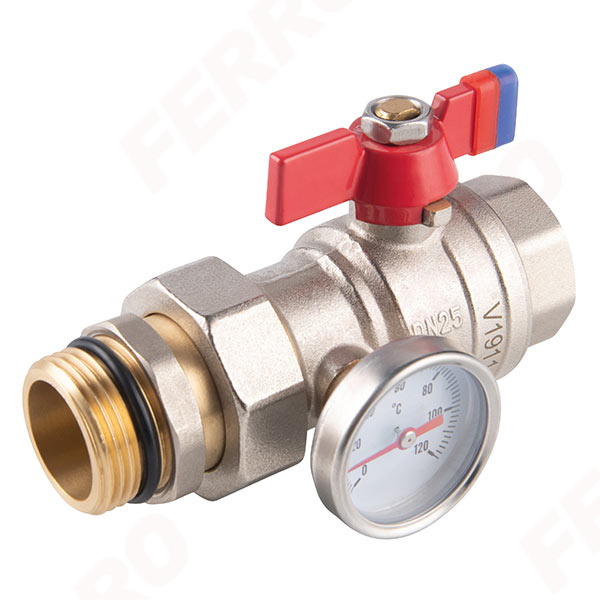

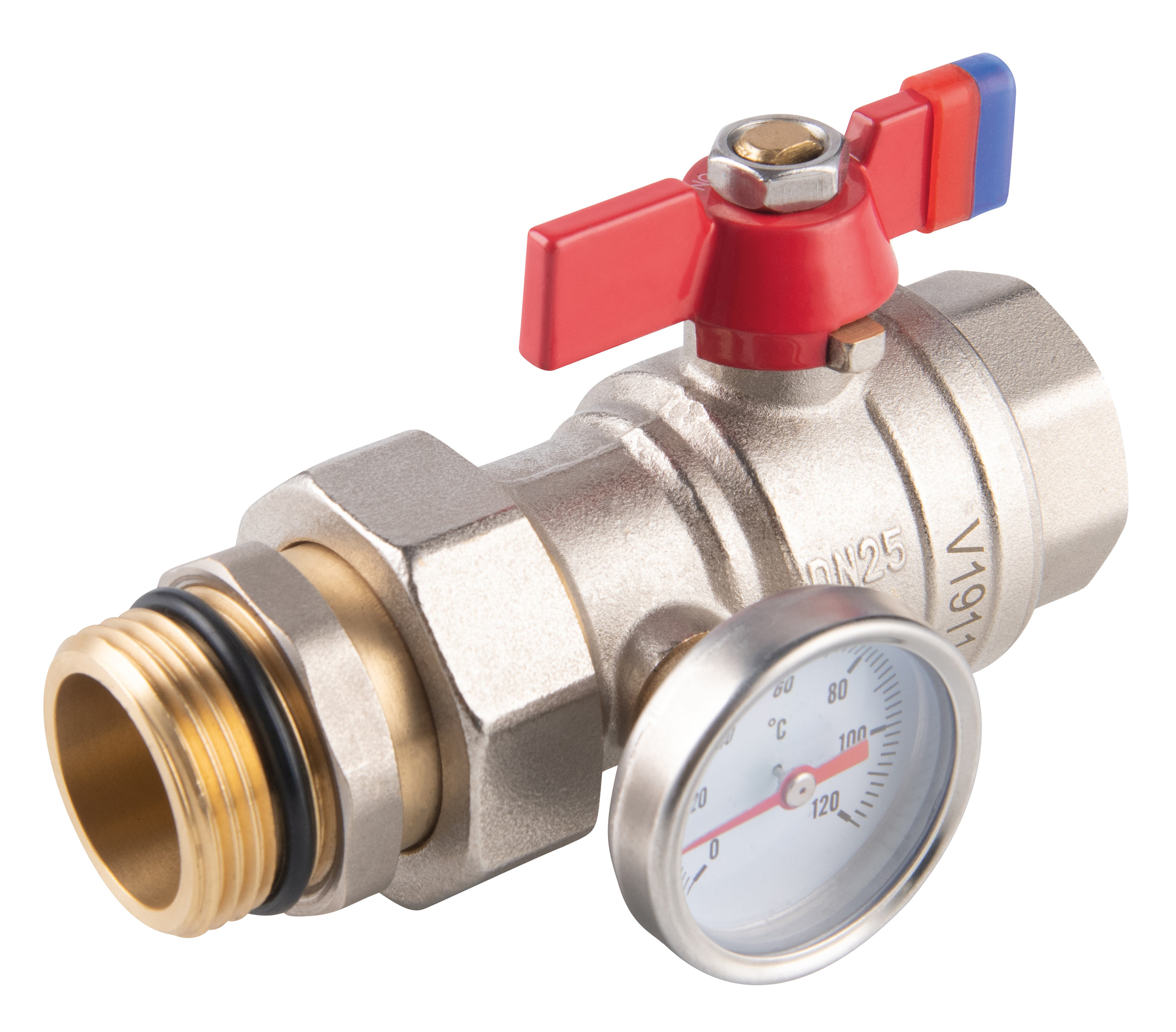

F-Power - ball valve

Index: KFPS3T

With a barcode for retail sale

warranty: 10 years
media valves: water, glycol 50%, compressed air
female-male with union
additional nut with a seal on the mounting thread
with gland
handle: butterfly
body and ball material: brass
material of ball and stem seals: PTFE
nominal pressure: 30 bar (PN30)
maximum working temperature: 120°C
NICKEL FREE - all product elements which may have contact with potable water are not covered with nickel
CW617N-4MS brass - the latest hygienic standard

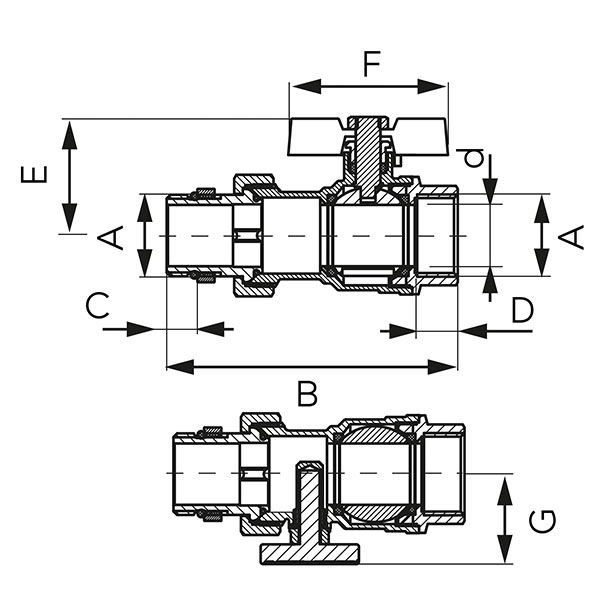

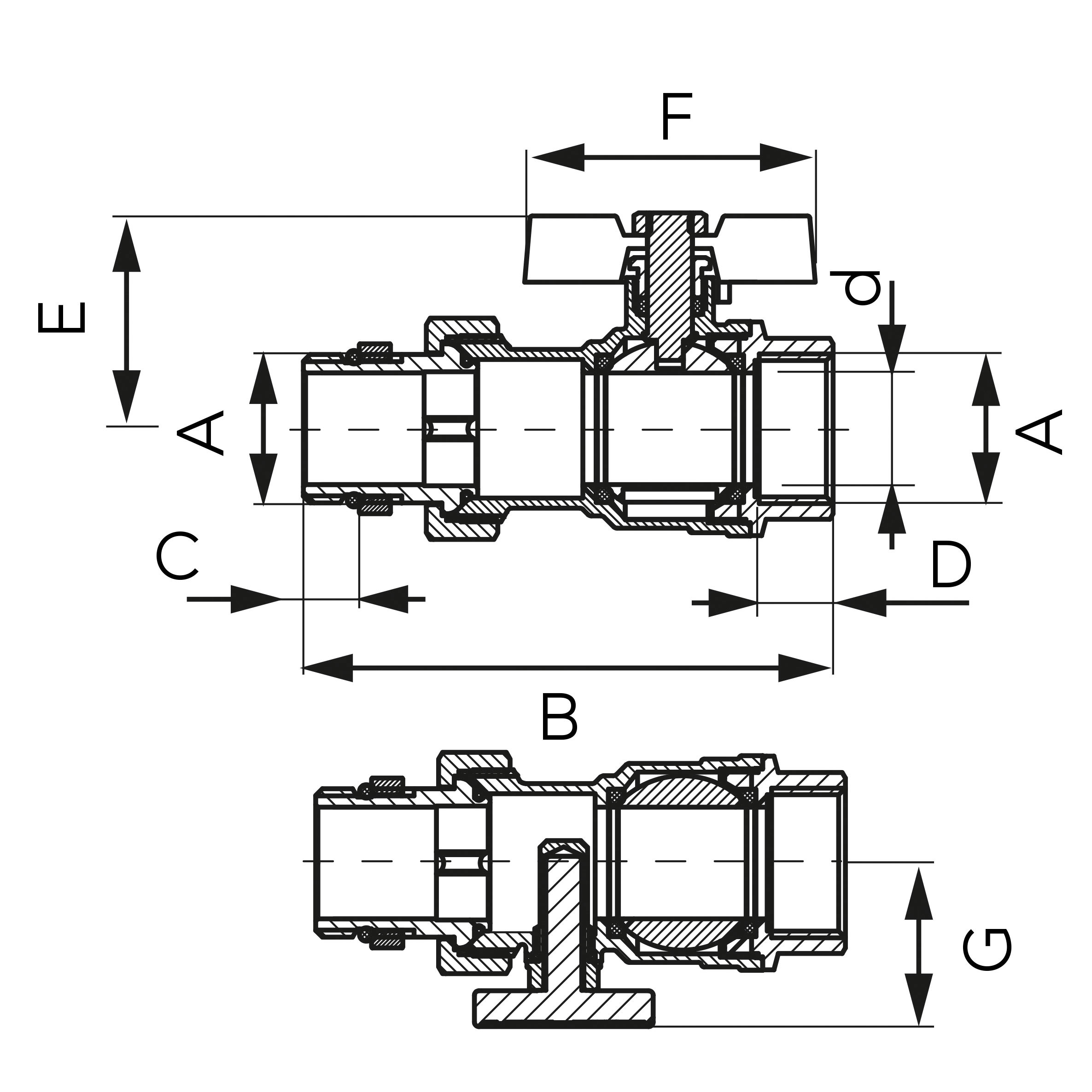

Index	DN	A	d [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	G [mm]	Kvs [m3/h]	Individ. pack.	Bulk pack.
KFPS3T	25	G1	25	118,5	12,5	17,5	47,6	65	36,6	19,01	4	24
