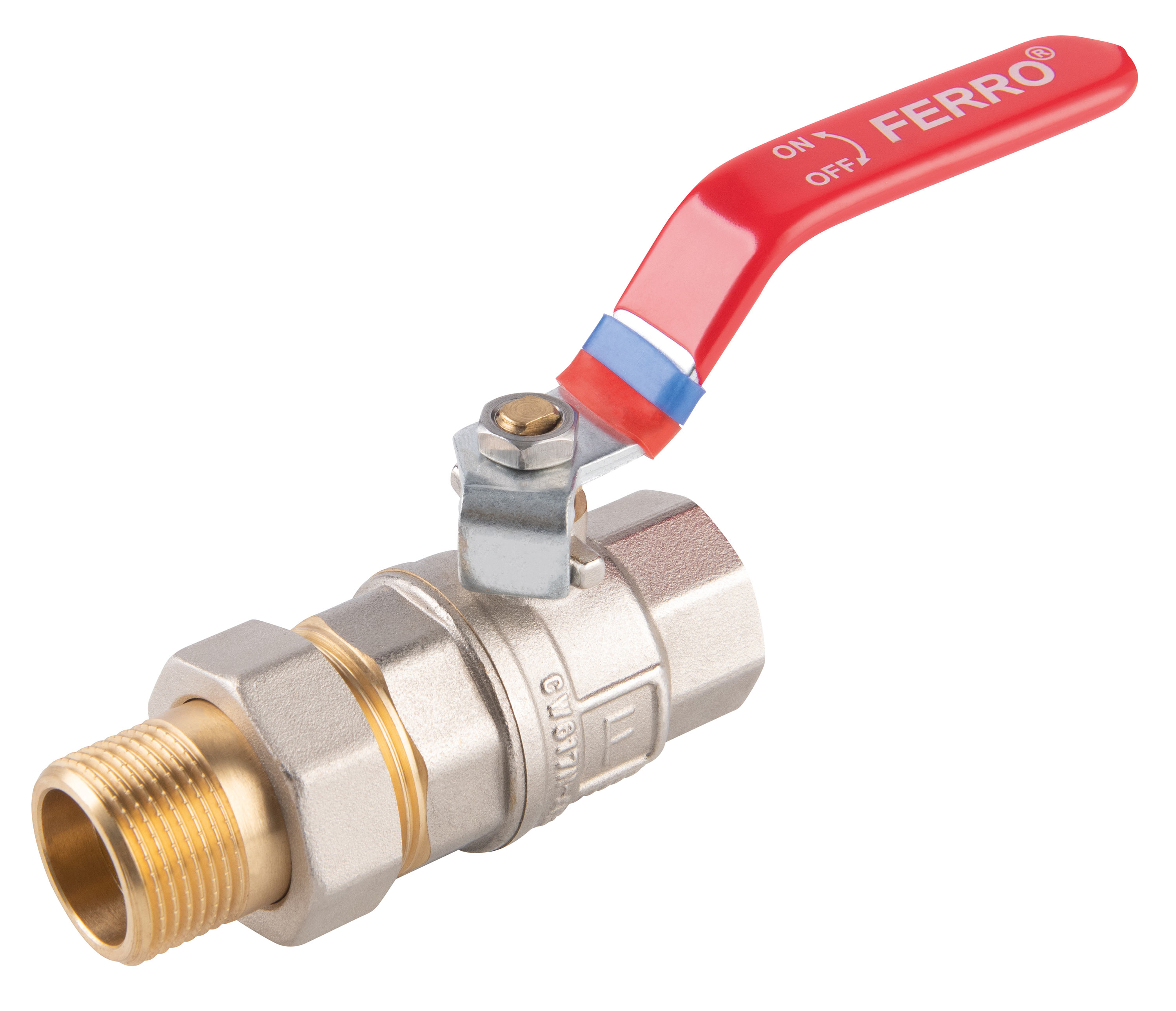

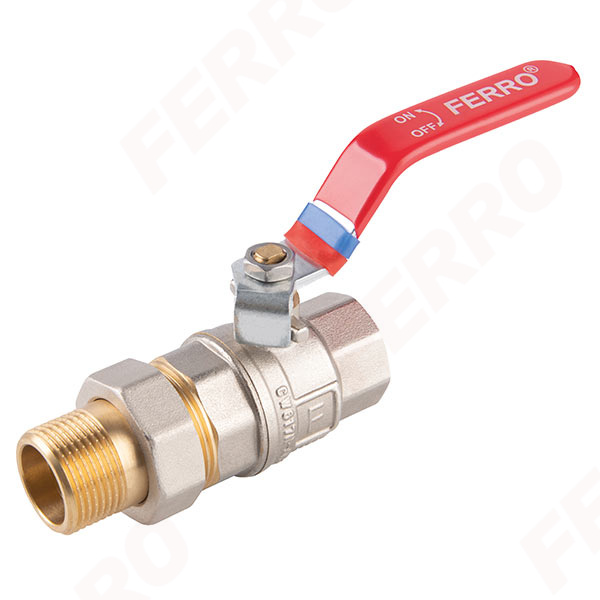

F-Power - ball valve

F-Power - ball valve

F-Power - ball valve

Code: KFPS

Download PDF file with card product

warranty: 10 years
application: water, glycol 50%, compressed air
female-male with union
full bore
with gland
handle: metal lever
body and ball material: brass
material of ball and stem seals: PTFE
nominal pressure: 30 bar (PN30)
maximum working temperature: 120°C
minimum working temperature: -30°C
NICKEL FREE - inner surfaces are not nickel-plated
CW617N-4MS brass - reduced lead and nickel content

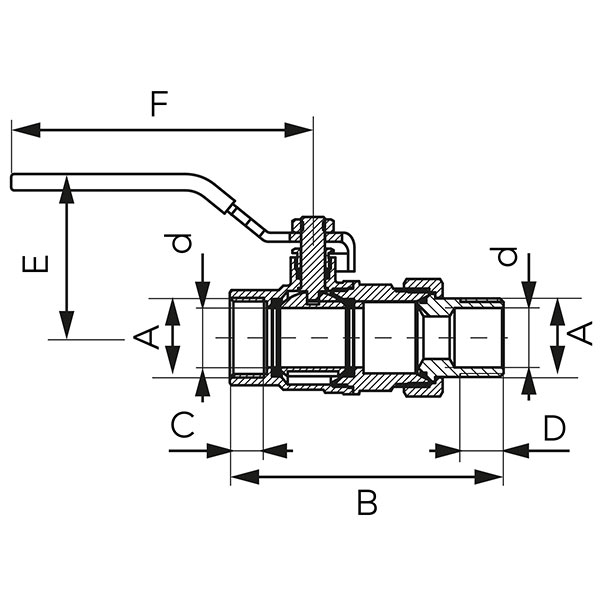

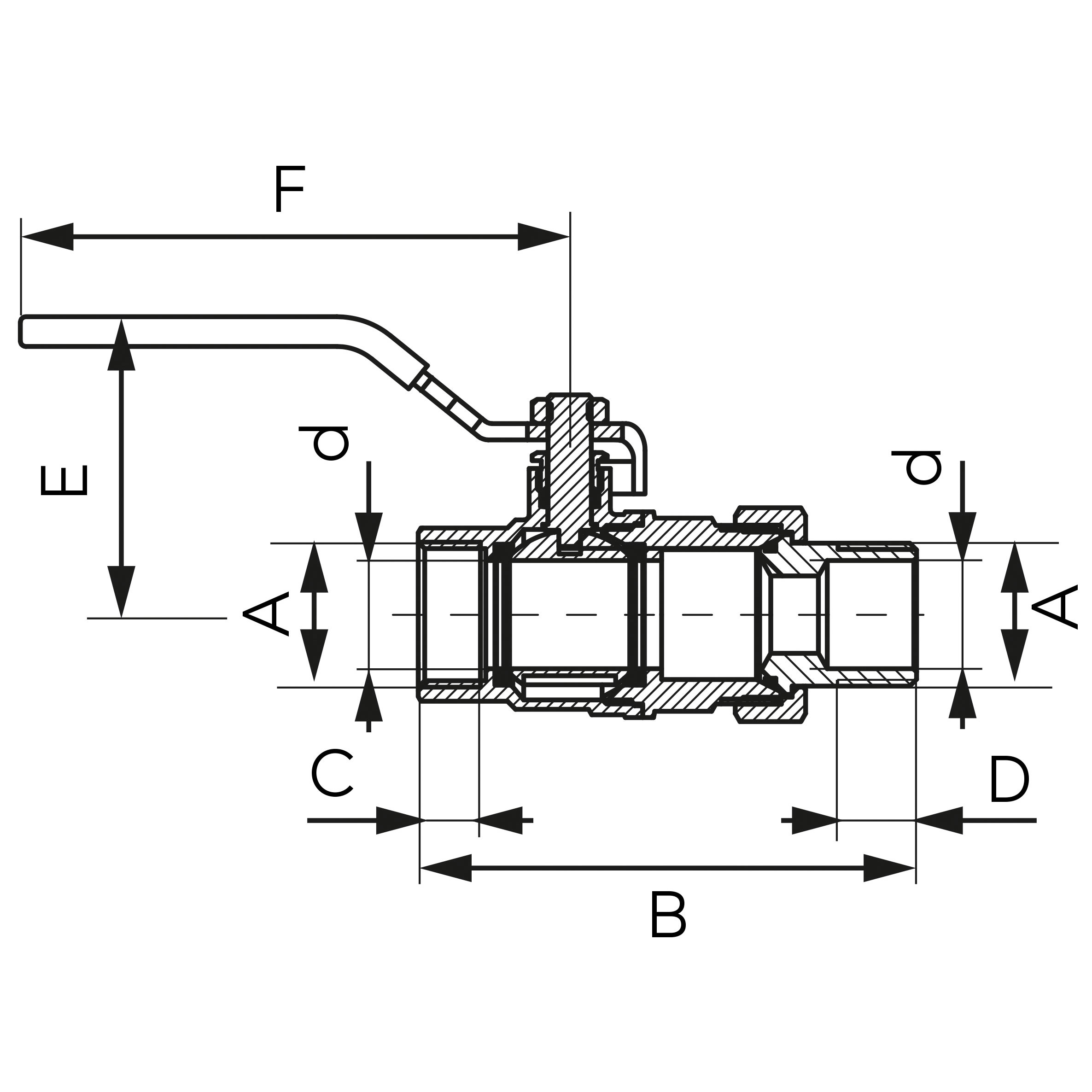

Code	DN	A	d [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	Kvs [m3/h]	Individ. pack.	Collect. pack.
KFPS11	15	G1/2	15	80,8	12,5	10,5	48,5	96	7,29	8	80
KFPS21	20	G3/4	20	93	14,5	11	53,8	101,5	14,80	6	48
KFPS31	25	G1	25	108	16,5	13	64,6	116,5	22,43	4	20
KFPS41	32	G1 1/4	32	124,6	18,5	14	70,5	116,5	41,10	2	12
