Straight 1/2” thermostatic set with valve with presetting with pre-setting and thermostatic head with 16°C limit

Straight 1/2” thermostatic set with valve with presetting with pre-setting and thermostatic head with 16°C limit

New!

Straight 1/2” thermostatic set with valve with presetting with pre-setting and thermostatic head with 16°C limit

Straight 1/2” thermostatic set with valve with presetting with pre-setting and thermostatic head with 16°C limit

Straight 1/2” thermostatic set with valve with presetting with pre-setting and thermostatic head with 16°C limit

Code: ZTMN01-16


Opakowanie jednostkowe Individual packaging: 1
with a barcode for retail sale

Download PDF file with card product

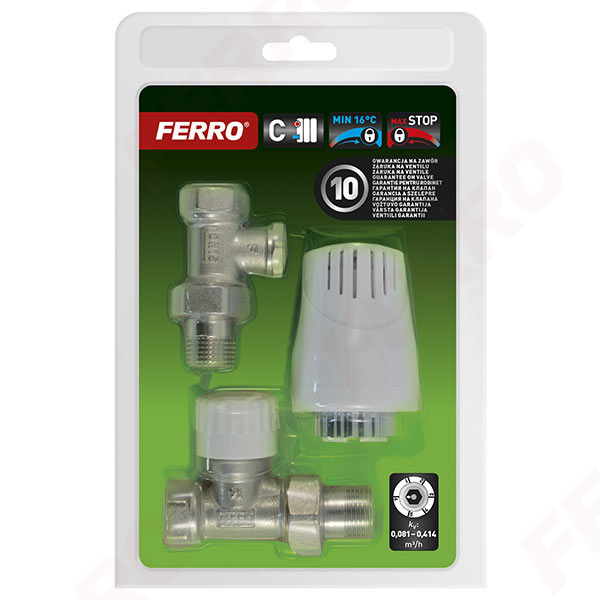

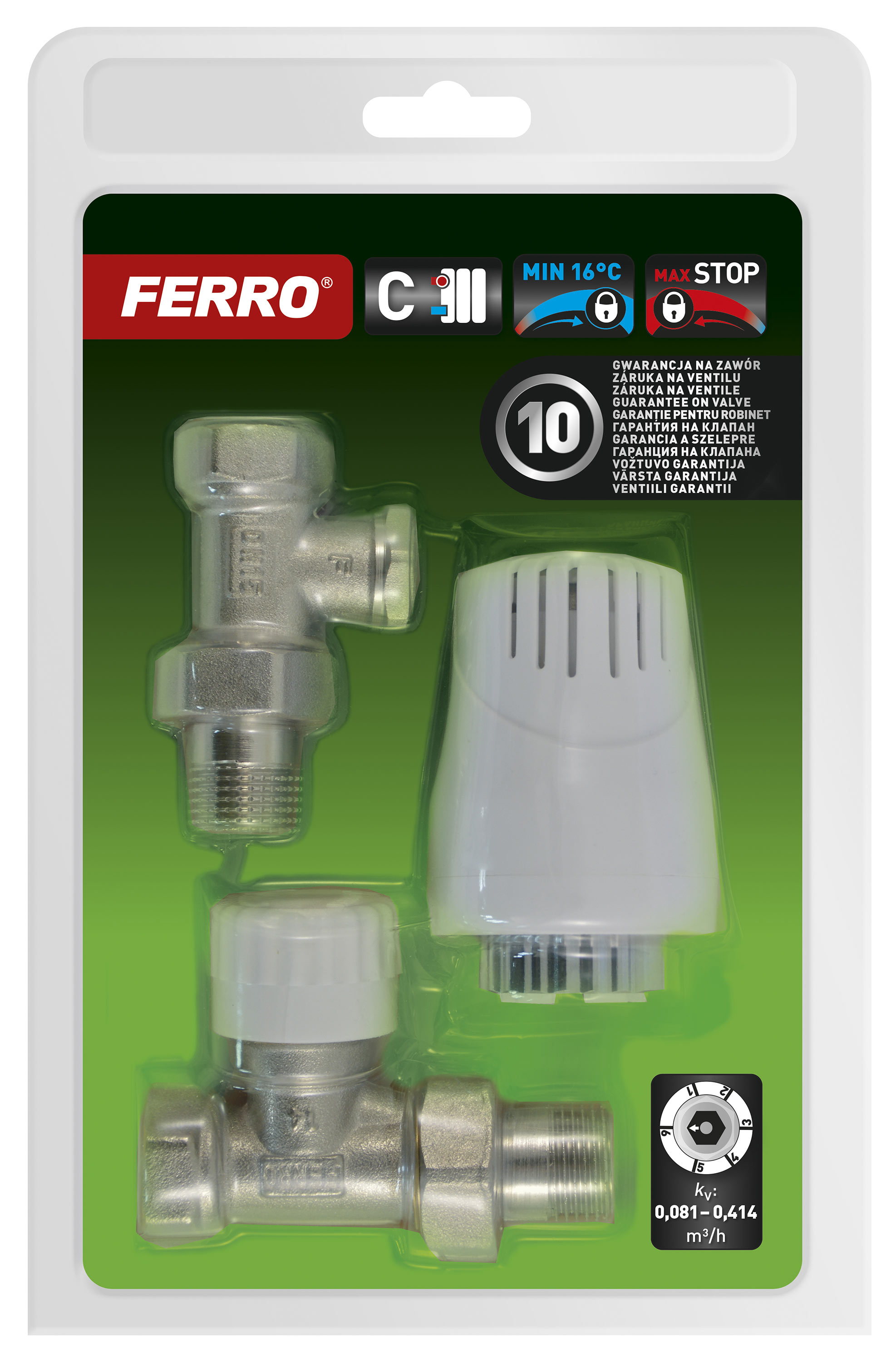

  • Elements of the set:
    • GT12-16 thermostatic head with M30 x 1.5 connection
    • ZT2Y thermostatic straight valve with presetting
    • ZP2Y straight cut-off valve
  • Technical parameters:
    • max. working temperature: 100°C
    • max. working pressure: 1 MPa (10 bar)
    • max. ambient temperature: 50°C
    • scale of adjustment: 2 - 5
    • adjustment range: up to 30°C
    • valve connection diameter: 1/2”
  • Warranty:
    • 10 years on thermostatic valve
Pre-setting 1 2 3 4 5 6
kv [m3/h] ZT2Y + GT12-16 0,081 0,181 0,265 0,33 0,379 0,414
