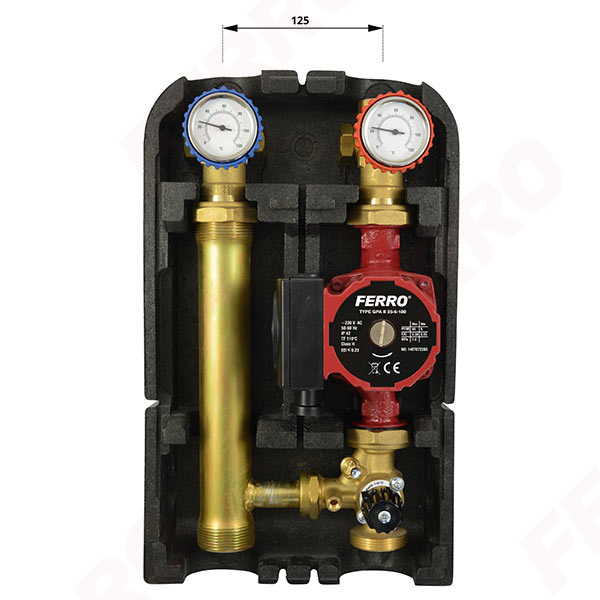

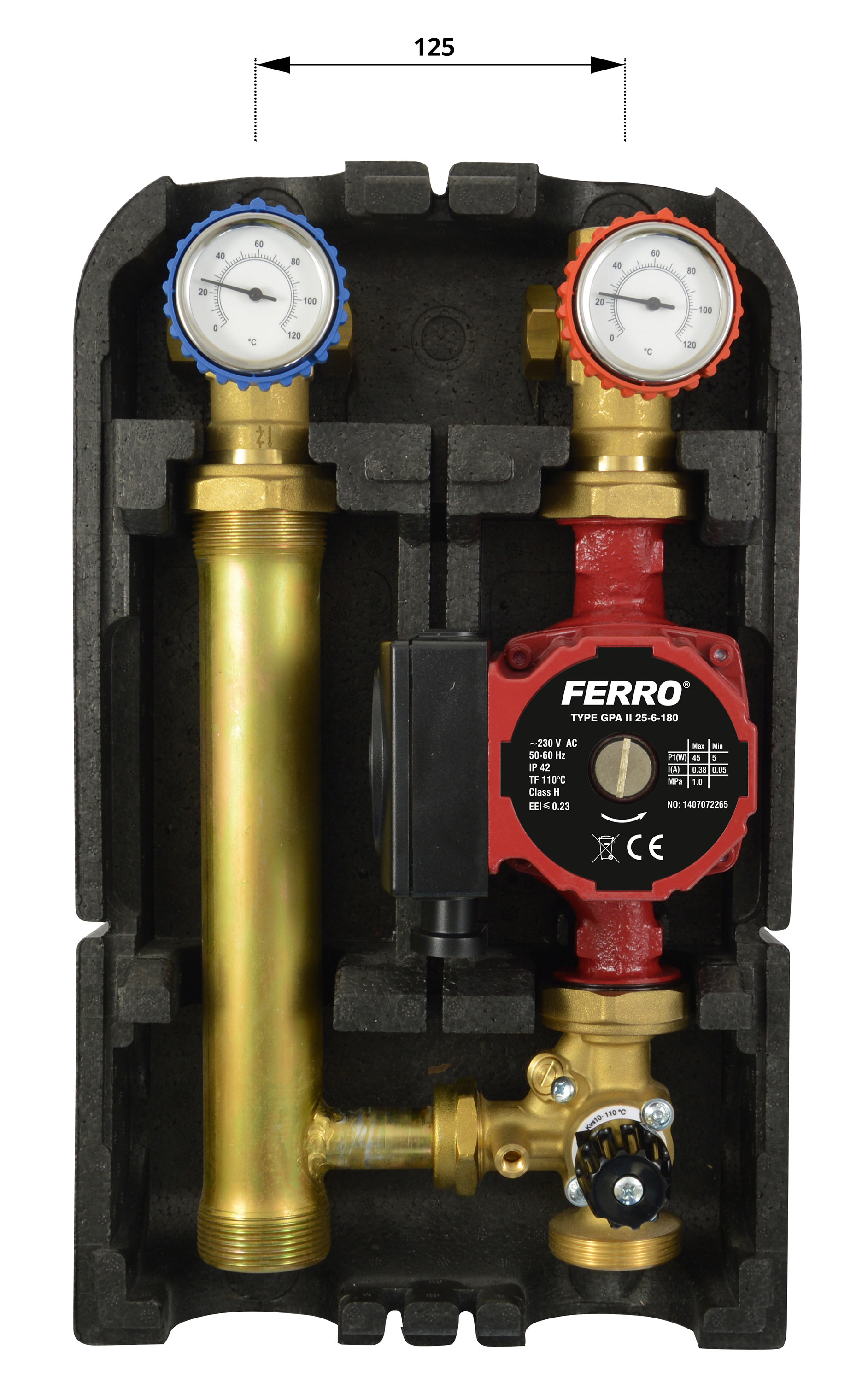

Mixing group for low-temperature installations

Mixing group for low-temperature installations

Mixing group for low-temperature installations

Code: GMP602GPA


Opakowanie jednostkowe Individual packaging: 1
with a barcode for retail sale

Collective packaginig: -

Download PDF file with card product


  • Equipment:
    • 25-6-180 electronic circulation pump
    • 3-way mixing valve with flow Kv = 10 m3/h
    • ball valves with built-in thermometers in handles
    • check valve on the return side
    • lower connections: 6/4” M for flat gasket
    • upper connections: 1” F
  • Technical parameters:
    • max. working temperature: 90°C
    • max. working pressure: 1.0 MPa (10 bar)
    • thermometer measuring scope: 0 - 120°C
    • 3-way mixing valve body: CW617N brass
    • sealing: PTFE, EPDM
