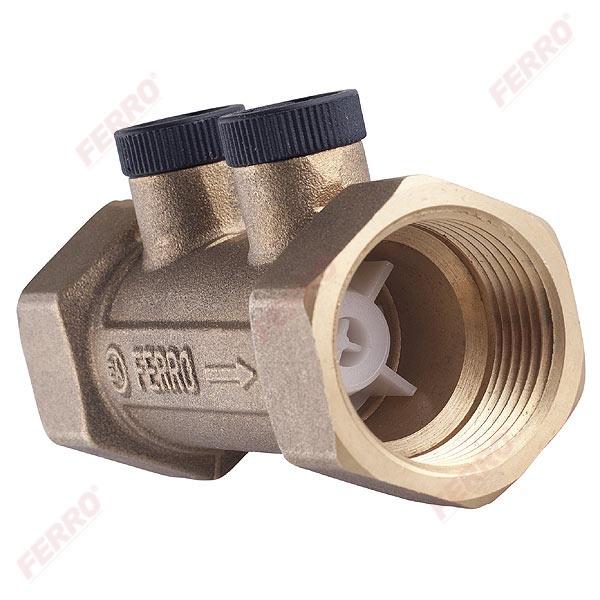

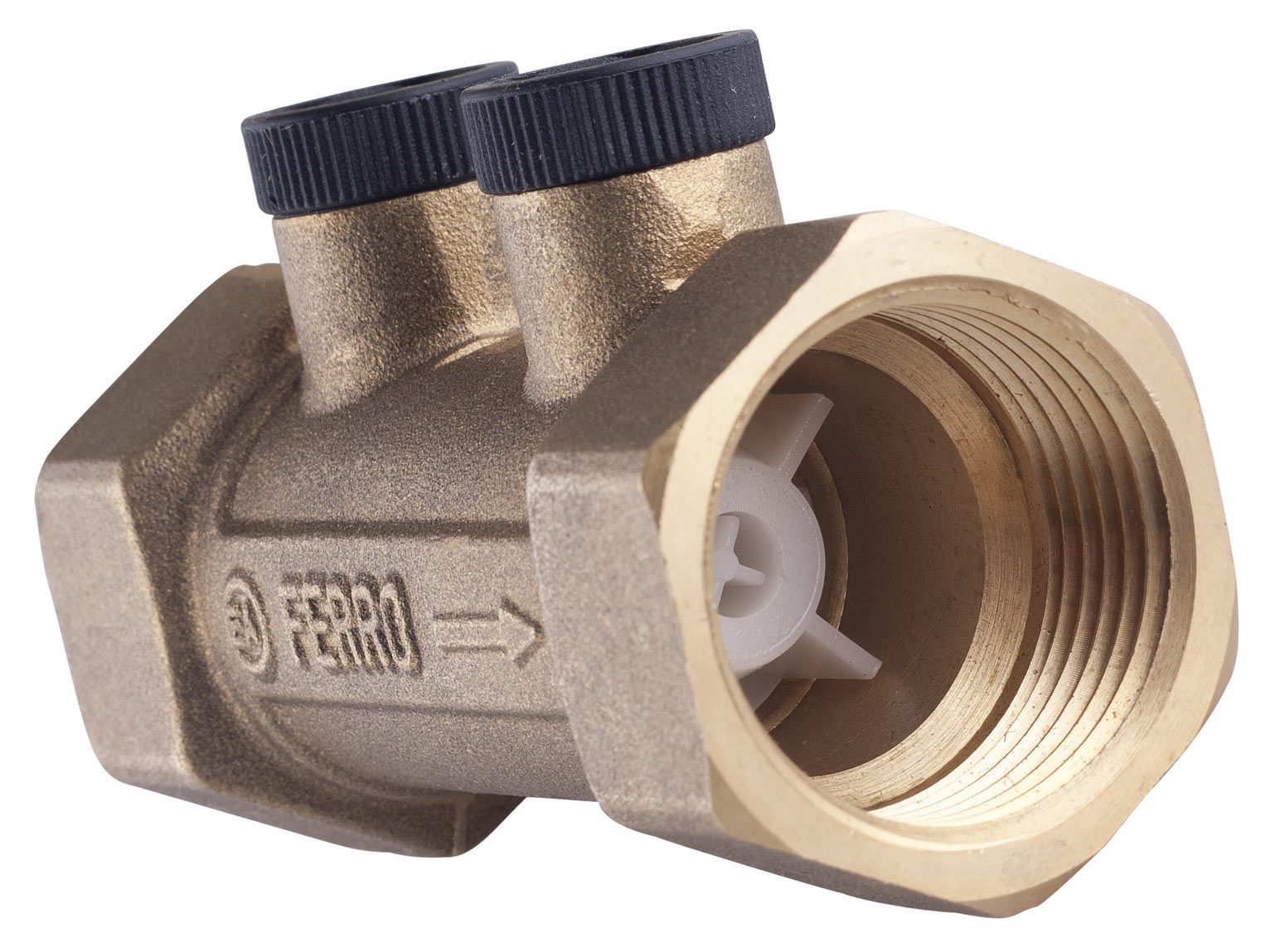

Anti-contamination check valve

Anti-contamination check valve

Anti-contamination check valve

Code: ZZA

Download PDF file with card product

nominal pressure: 1.0 MPa (10 bar)
working temperature: 65°C
max. temperature: 90°C for 1 h
working position: any
class EA
Utility Valves:
- water

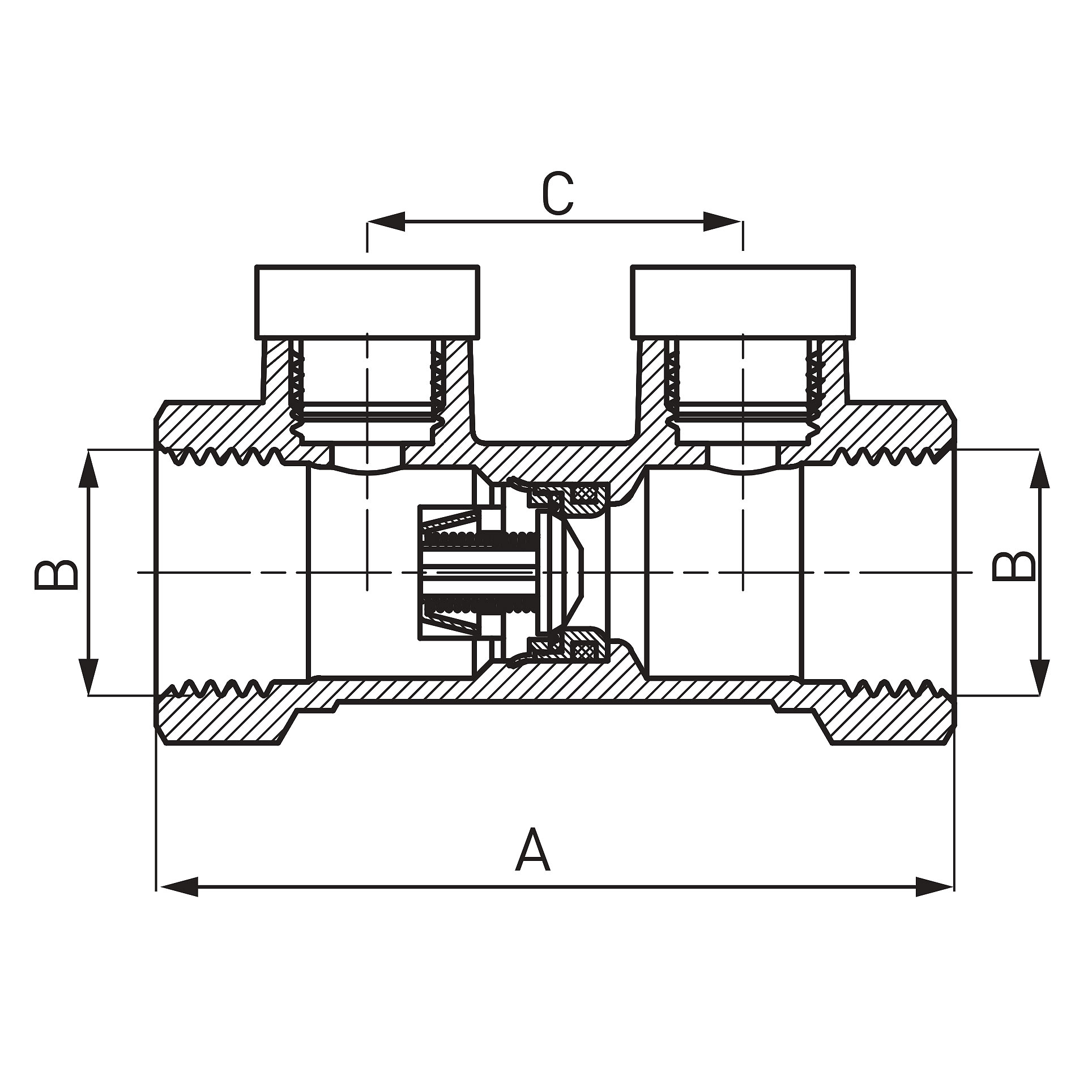

Code	Anti-contamination valve	A [mm]	B	C [mm]	Individ. pack.	Collect. pack.	R*
ZZA01	1/2"	68	G½"	32	20	240	ZZA01W
ZZA02	3/4"	78	G¾"	32	22	132	ZZA02W
ZZA03	1"	90	G1"	32	14	84	ZZA03W
ZZA04	5/4"	110	G5/4"	32	8	48
ZZA05	6/4"	120	G6/4"	38	3	24
ZZA06	2"	150	G2"	50	3	18

*R - Product in individual packaging with EAN code enabling retail sale.
