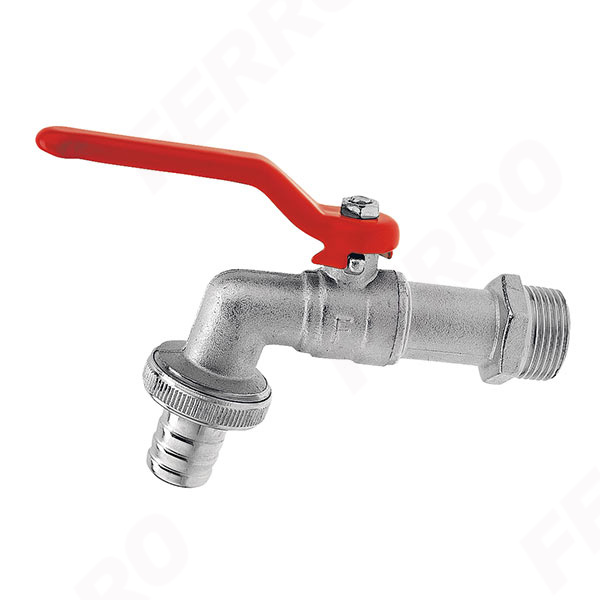

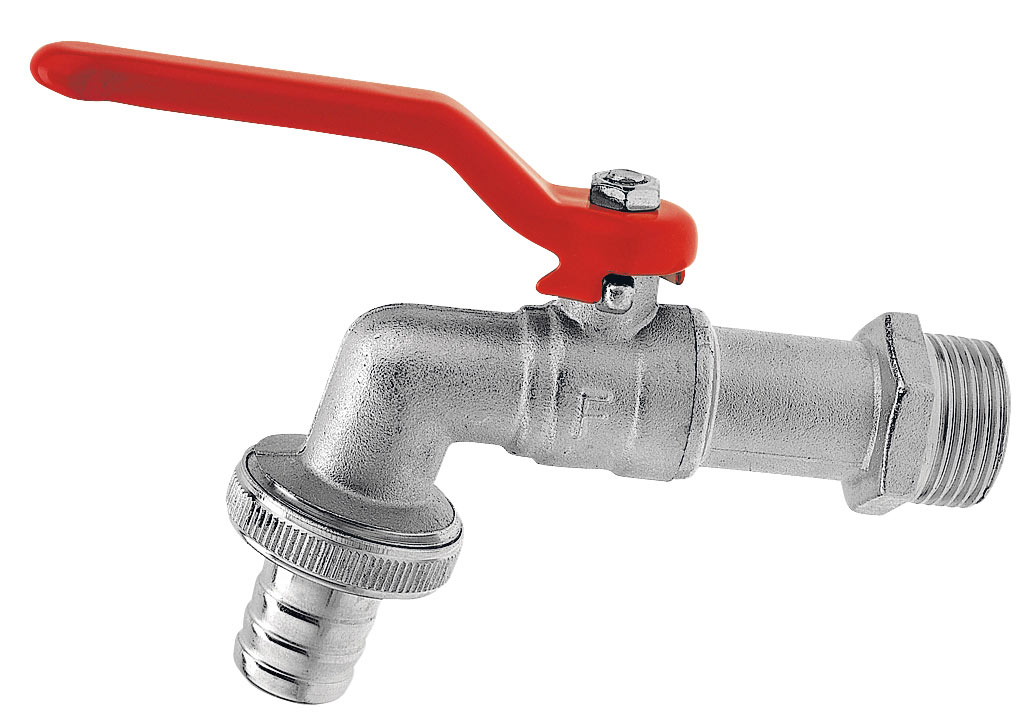

Ball bibcock

Ball bibcock

Ball bibcock

Code: KC

Download PDF file with card product

Utility Valves:
- water
with gland
with metal hose connector
handle: metal lever
body and ball material: brass
ball and stem seal: PTFE
nominal pressure: 1.0 MPa (10 bar)
maximum working temperature: 100°C

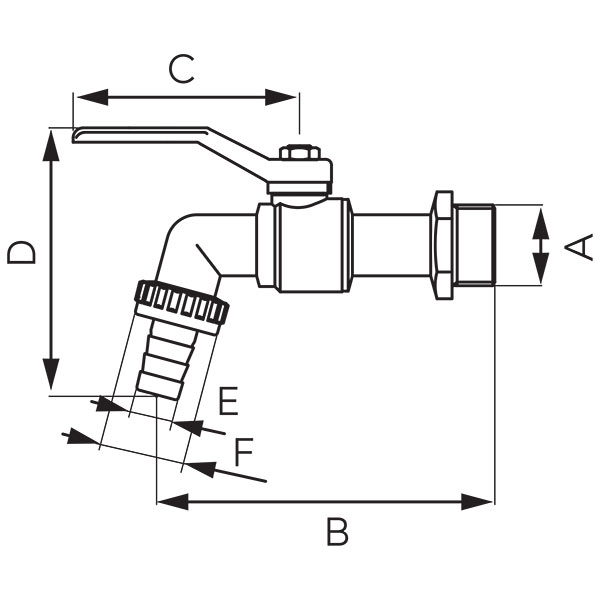

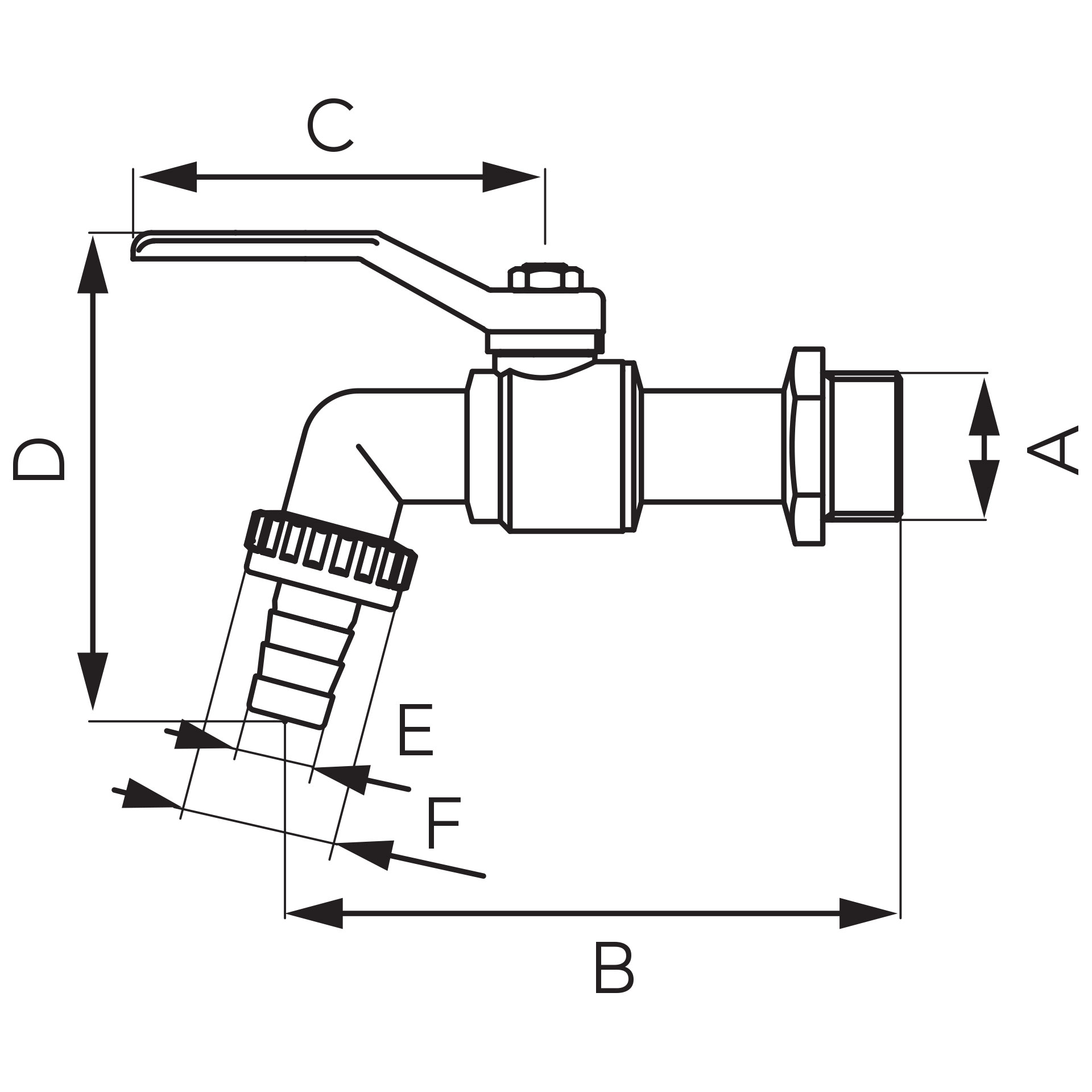

Code	Size of connectors	DN	d [mm]	A	B [mm]	C [mm]	D [mm]	Ø E [mm]	F	Kvs [m³/h]	Individual packaging	Collective packaginig	R*	E*
KC1	1/2"	15	11	G1/2	90	84	86,5	15	G3/4	5	15	135	KC1W	KC1E
KC2	3/4"	20	12,5	G3/4	102	84	93	20	G1	8	10	90	KC2W	KC2E
KC3	1"	25	15	G1	124	98	110	28	G1 1/4	14	6	36	KC3W	KC3E

*R - Product in individual packaging with EAN code enabling retail sale.
*E - Products on euro-slot with barcode enabling retail sale.
