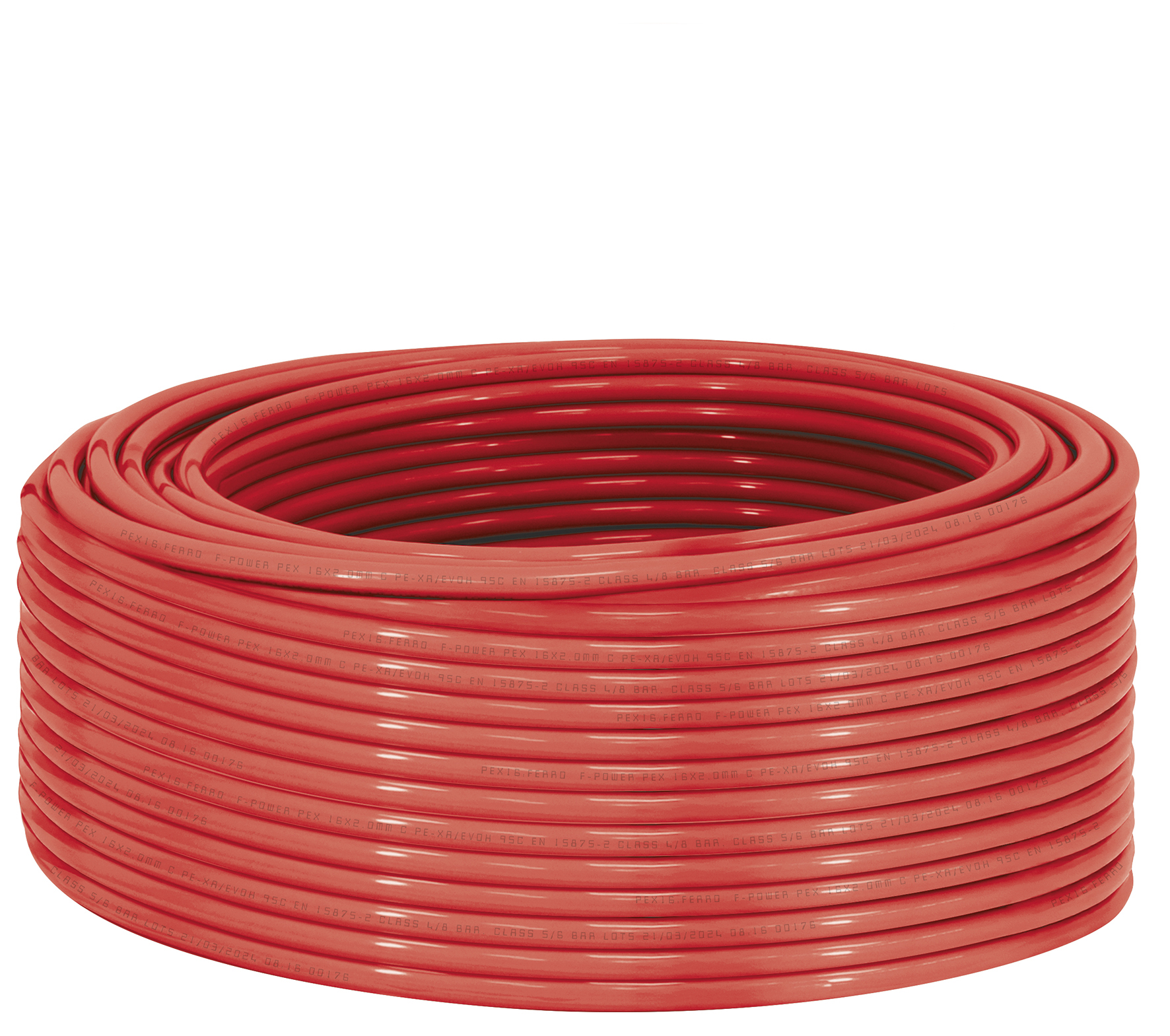

Pipe 5-layer with EVOH - PEXa
Pipe 5-layer with EVOH - PEXa from the F-POWER PEX collection is a high-performance multilayer pipe designed for modern heating and plumbing installations. The 16 mm outer diameter suits the most common PEX pipe sizes used in residential systems, making it a versatile choice for new builds and renovations.
The five-layer structure with an integrated EVOH oxygen barrier protects the installation against oxygen diffusion, supporting the long-term reliability of boilers, pumps and radiators. A maximum operating pressure of 8 bar in class 4 and 6 bar in class 5, combined with a working temperature up to 95°C, fits demanding underfloor heating and high-temperature radiator circuits.
The pipe is made of Pe-Xa in accordance with EN ISO 15875, so it maintains flexibility during PEX pipe bending while retaining dimensional stability over time. A 2 mm wall thickness contributes to resistance to mechanical damage, and the 250 m coil length reduces the number of connections in the system, which benefits both installation speed and leak-tightness.
This F-POWER PEX multilayer pipe is a solid choice for professionals looking for a durable, oxygen-tight PEX installation solution with parameters tailored to everyday residential and small commercial projects.
- Wall thickness [mm]:
- 2
- Structure:
- 5-layer
- Maximum operating pressure - Class 5 [bar]:
- 6
- Maximum working pressure [bar]:
- 6-8
- Maximum operating pressure - Class 4 [bar]:
- 8
- Maximum operating temperature [°C]:
- 95
- Body material/assembly material:
- PE-Xa in accordance with EN ISO 15875
