Pipe 5-layer with EVOH - PERT II generation
The 5-layer pipe with EVOH barrier from the F-COMFORT PERT collection is a high-quality installation pipe designed for modern heating and water systems. Its multilayer structure supports stable operation of the installation and fits demanding residential and commercial projects.
The outer diameter of 17 mm combined with a 2 mm wall thickness creates a robust yet flexible solution for underfloor heating and other installation tubing. The pipe works safely at operating pressures up to 6 bar in both class 4 and class 5 applications, so it performs well in systems with higher loads and variable temperatures.
The pipe is made of PE-RT of the second generation in accordance with EN ISO 22391, which raises resistance to temperature and long-term stress. The EVOH oxygen barrier protects metal components of the system from accelerated wear, while the maximum working temperature of 90°C widens the range of possible uses in central heating installations.

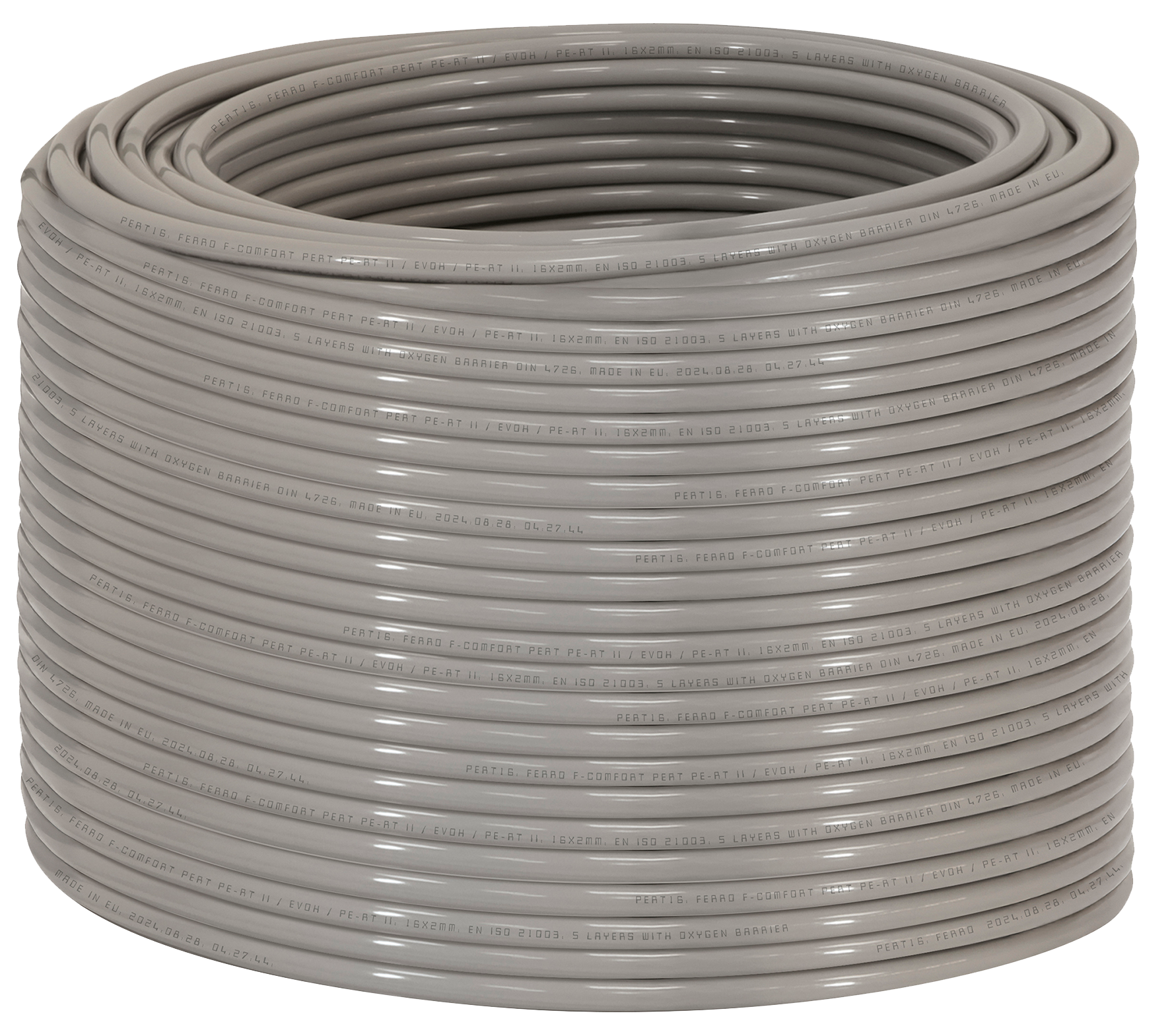

A 600 m coil simplifies transport and reduces the number of connections in the system, which supports reliability and speeds up installation on site. The 5-layer EVOH pipe from the F-COMFORT PERT line is a solid choice for professionals looking for durable, efficient installation tubing for advanced heating projects.
- Wall thickness [mm]:
- 2
- Structure:
- 5-layer
- Maximum working pressure [bar]:
- 6
- Maximum operating pressure - Class 4 [bar]:
- 6
- Maximum operating pressure - Class 5 [bar]:
- 6
- Maximum operating temperature [°C]:
- 90
- Body material/assembly material:
- PE-RT in accordance with EN ISO 22391
