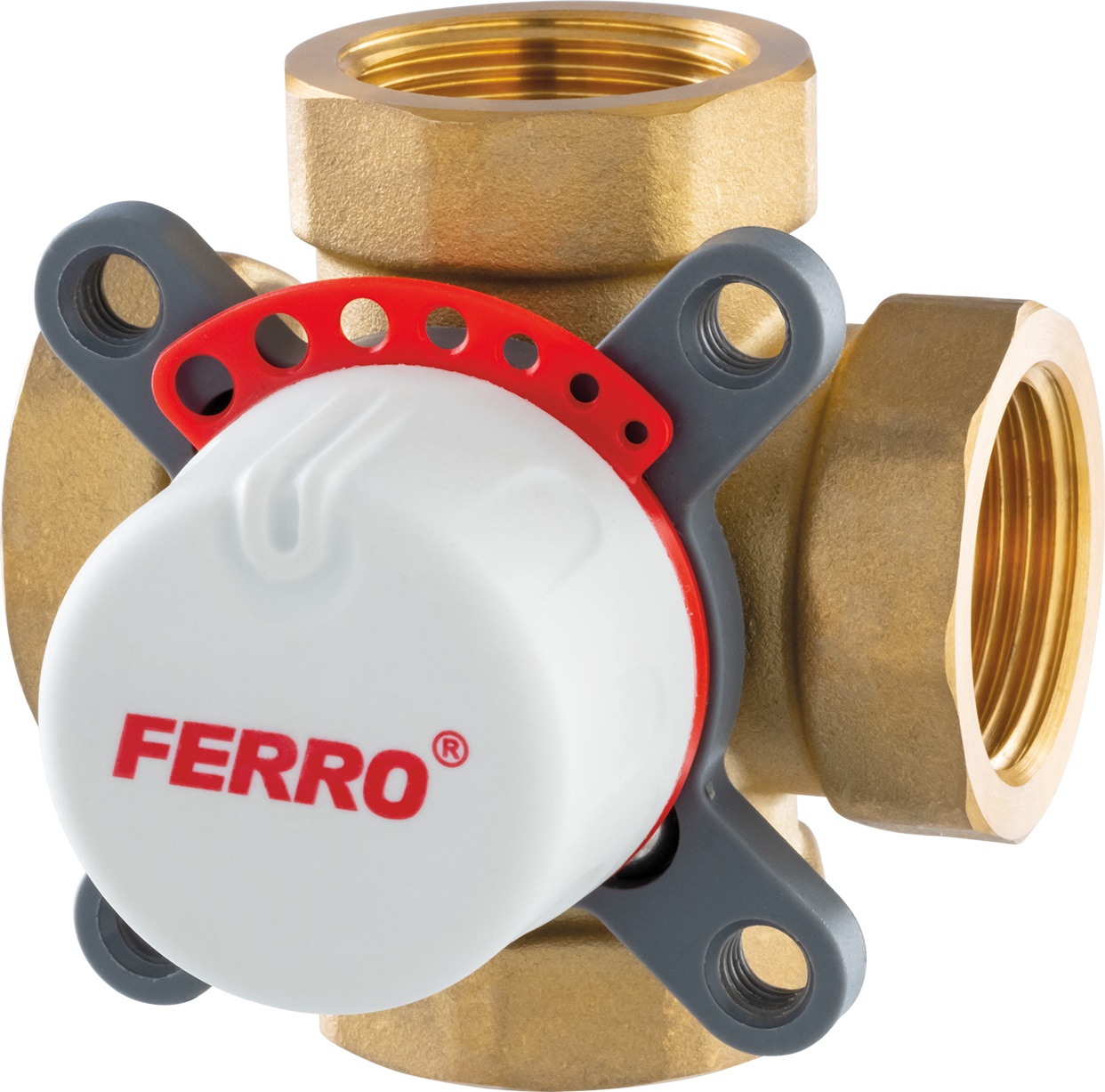

Mixing valve, 4-ways
The 4-way mixing valve DN32 is designed for precise control of heating and cooling installations, combining efficient flow management with compact dimensions. With a nominal diameter DN32 and threaded Rp 1 1/4 connections, it integrates easily into standard domestic and light commercial systems.
A Kvs value of 17.1 m³/h supports stable medium flow in larger circuits, while the required torque below 1 Nm suits a wide range of actuators and manual drives. The valve operates safely at working pressures up to 10 bar and within a temperature range from -10°C to 100°C, so it fits both low-temperature and high-temperature installations using water or mixtures with glycol content up to 50%.

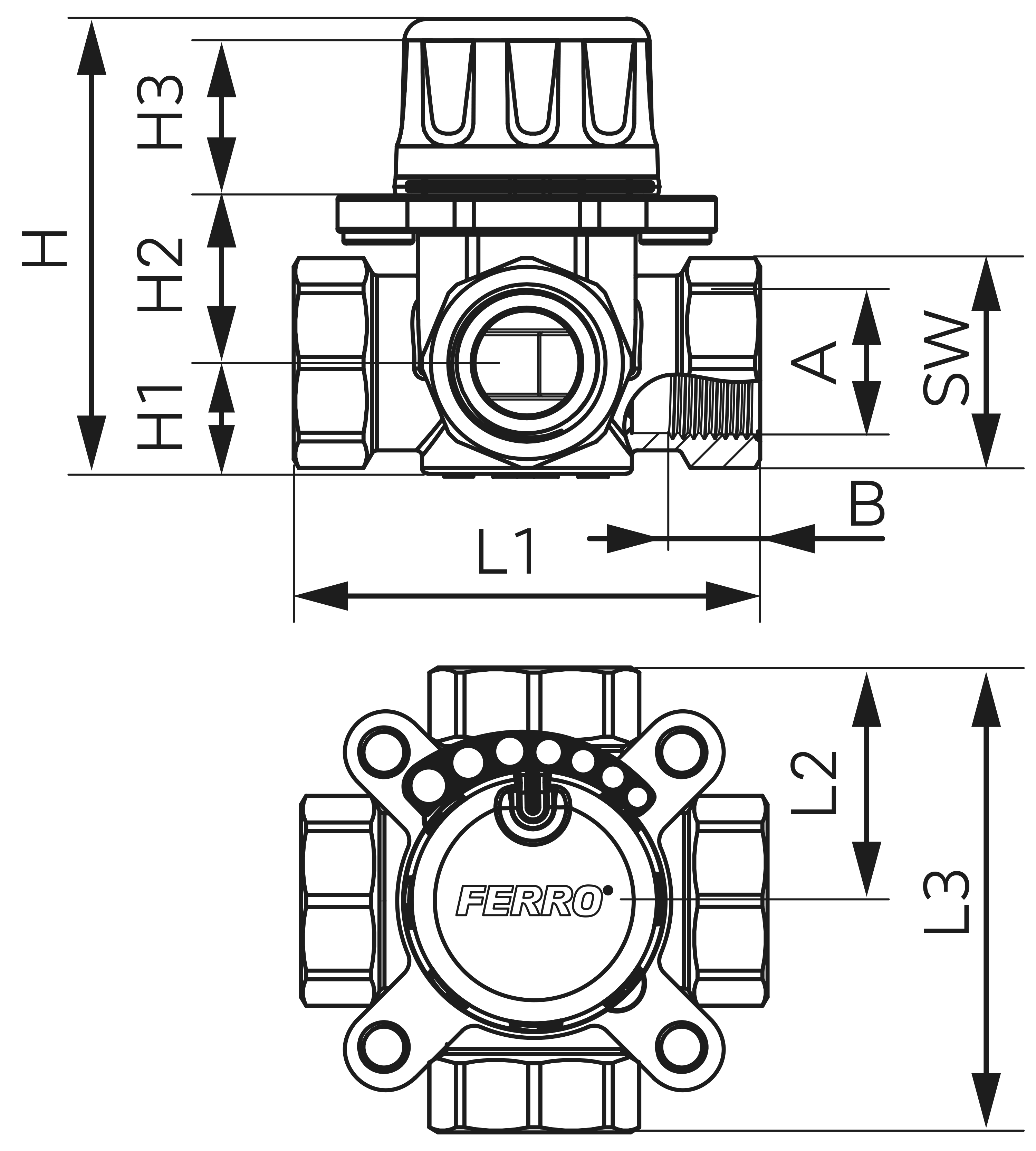

The body made of CW617N brass resists corrosion and mechanical wear, extending service life in demanding installation environments. Carefully selected dimensions, including a 90 mm body length and 49 mm wrench size, simplify assembly in tight spaces and speed up installation work for professionals familiar with DN32 control valves.
Each piece is supplied in a box with a retail-ready barcode, convenient for warehouse handling and project logistics. The 4-way mixing valve DN32 is a solid choice for installers seeking a durable, easy-to-operate control valve for modern heating and cooling systems.
- Torque required [Nm]:
- < 1
- Maximum working pressure [bar]:
- 10
- Minimum operating temperature [°C]:
- -10
- Maximum operating temperature [°C]:
- 100
- Barcode:
- bar code packaging for retail sale
- Unit packaging method:
- box
- Media:
- 50% glycol
- Body material/assembly material:
- brass CW617N
